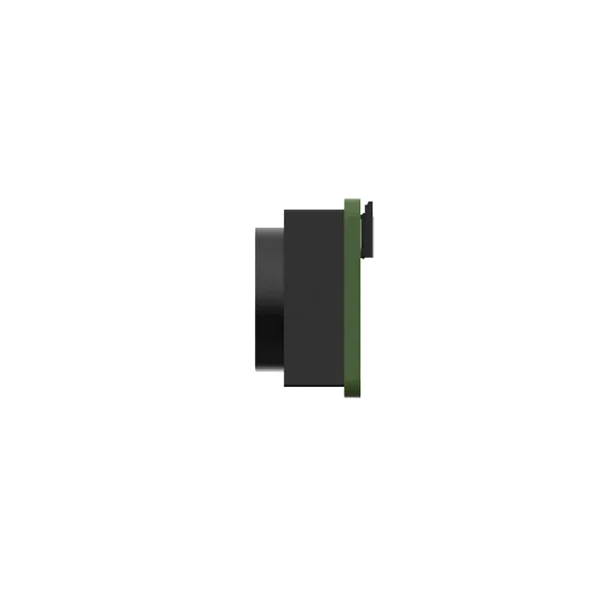

Turing MC256 Uncooled Infrared Module

China Moneypro

The Turing NC256 uncooled infrared module, adopting an advanced 256 192 wafer detector, features compact dimensions, lightweight design, and low power consumption, meeting the SWaP³ design requirements.

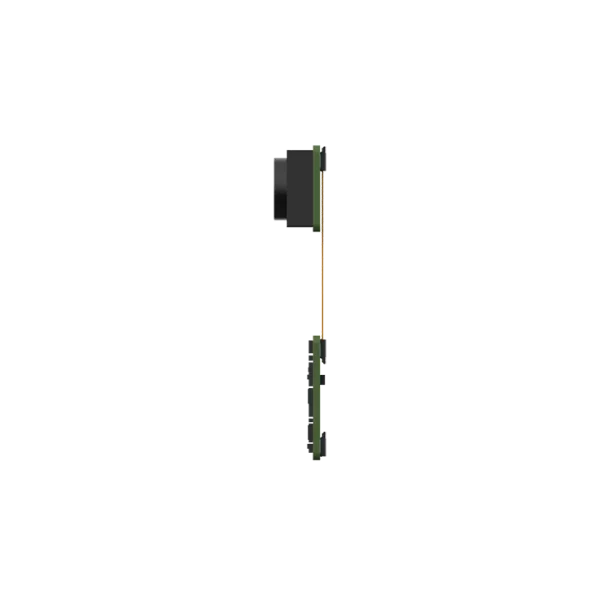

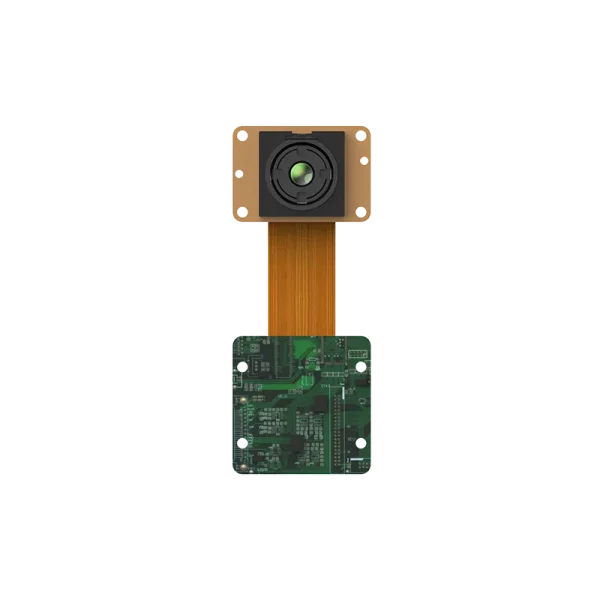

The split assembly makes it more flexible to use.

It comes with multiple auxiliary development tools that support multiple ARM architecture SOC platforms, ensuring ease of use and integration.

It also supports the simultaneous output of images and temperature values with a variety of lightweight infrared lenses and extension components. As the best choice for low-cost solutions, this product series can be used in many scenarios such as industry, power, security protection, and machine vision.

Feature

Low-Cost Solution

Equipped with a 256 × 192 WLP sensor and a 3.2mm lens, the device weighs just 3.5g.
It is compatible with various ARM-based SoC platforms and can handle sensor data directly.

Easy Development

It is adaptable to a wide range of popular embedded SoC platforms and enhances the image quality delivered by the ISP.
It supplies a variety of SDK development interfaces to support quick secondary development.

Multiple Selections

The field of view (FOV) is adjustable from 20 to 90 degrees, and the extension is compatible with various protocols including DVP, MIPI, and analog video.
The separable structure facilitates easy integration and development, making it suitable for a wide range of applications including consumer electronics, smart devices, security systems, and industrial equipment.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	256 × 192
	Detector Frame Rate	25 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK at 25°C (optional ≤40 mK)
Image Adjustment	Brightness/Contrast	Manual/Auto
	Polarity	Black-hot / White-hot
	Palette	Multiple types supported
	Reticle	Display / Blank / Move
	Image Processing	Digital filtering noise reduction, digital detail enhancement
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	3.8V ~ 5.2V
	Typical Power Consumption @25°C (without extension)	≤0.35 W
Interface	Digital Video	CDS2 / CDS3 / LVCMOS
	Serial Communication Interface	UART
	Extension Components	Analog Video
Interface / Support	Direct Drive Solution	Compatible with SOC platforms such as HIS13516, HIS13519, NT98528, AR9201, AR9341, and CV28M33
Temperature Measurement Performance	Measurement Range	-20℃ ~ +550℃
	Measurement Accuracy	±3°C or ±3% of reading (whichever is greater) @ ambient temperature -20°C ~ +60°C
Physical Characteristics	Dimensions (without lens and extension)	21 × 14.6 mm
	Weight (3.2mm lens, without extension)	≤3.5 g
	Lens Models	2 mm, 3.2 mm, 7 mm, 10 mm, 13 mm
Environmental Adaptability	Operating Temperature	-20℃ ~ 60℃
	Storage Temperature	-45℃ ~ +85℃
	Humidity	5 ~ 95%, non-condensing
Certification	Product Certification	RoHS
