Photon ML615 Long-Wave Cooled Infrared Module

China Moneypro

The Photon ML615 long-wave cooled infrared module is provided with the high-performance T2SL cooled infrared FPA detector and carried with the self-developed image processing algorithm.
With better sand and dust penetrability, and anti-interference capacity of reflected light, it reaches a frame rate of up to 100Hz.
It supports multiple digital video interfaces, is suitable for multiple fixed focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, anti-UAV, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.

Feature

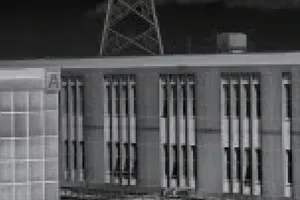

1. Delicate Images with High Sensitivity

The NETD is minimized to 25mK, which satisfies the demands for detecting small targets over long distances.

2. Self-Developed Algorithm for Intelligent Imaging

Equipped with a newly self-developed imaging algorithm, it enables wide dynamic range support and adaptive integration time, ensuring optimal image quality tailored to various scenarios.

3. Wider Band and Precise Focus

It supports the 7.7–10 m band range and is compatible with a variety of both fixed and continuous zoom lenses, making it suitable for diverse application scenarios.

4. Higher Frame Rate for Timely Capture

The maximum resolution reaches 640 × 512, and the frame rate can go up to 100 Hz, satisfying the demands of capturing large-scale dynamic targets.

Specification

Performance Indicators
Detector Type	T2SL Cooled Infrared FPA
Resolution	640 512
Pixel Pitch	15 m
Spectral Band	7.7 0.2 m 10 0.5 m
NETD	25mK at 25
Operability	99.5%
Cooling Time@25 C	7min
Image Adjustment
Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot (white-hot by default)
Reticle	Display/Blank/Move
Digital Zoom	1.0~8.0 continuous zoom (step size:0.1)
Image Processing	Non-uniformity correction, digital filter noise reduction, digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range (typical)	26~32V DC, typical voltage of 28V DC
Interface
Analog Video	PAL
Digital Video	Cameralink
Serial Communication Interface	RS422 (default baud rate: 115200)
Synchronization Mode	Internal synchronization (default)/External synchronization/Adaptive synchronization mode
Physical Characteristics
Dimensions (Without lens)	121 75 79mm ( 1)
Weight (Without lens)	870g
Environment Adaptability
Operating Temperature	-40+60
Storage Temperature	-45+65
Temperature Shock	-45 ~+65棨 5 /min
Random Vibration	6.06g
Shock	Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)
MTTF	10000h
Power and Interface
Typical Power Consumption at 25 C	Stable power consumption 12W, peak power consumption 25W
