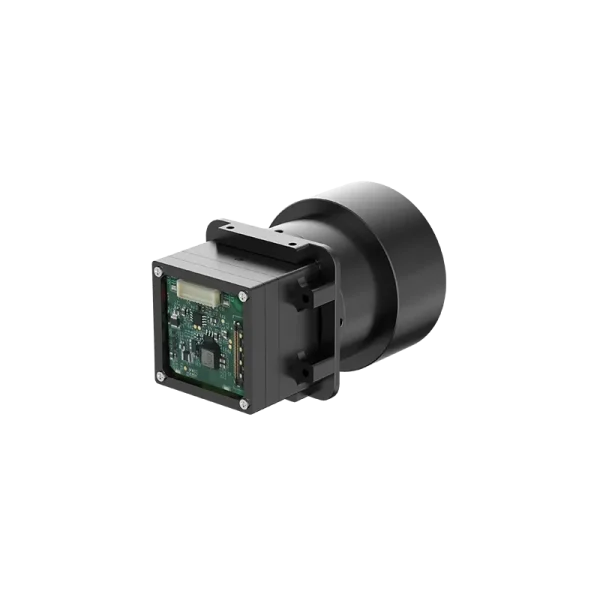

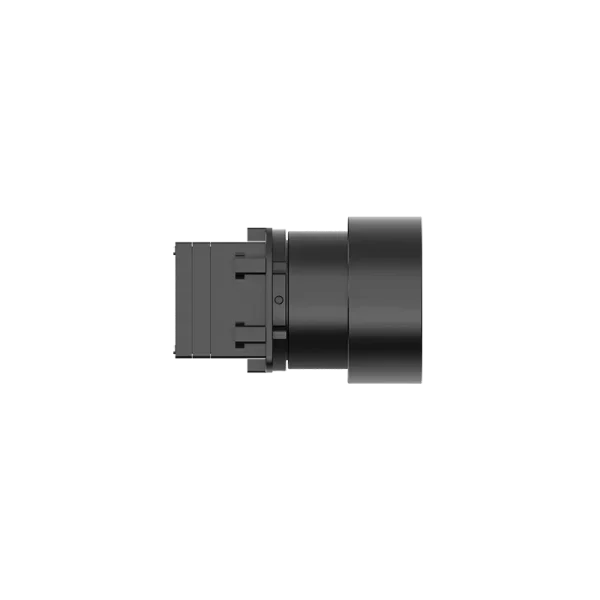

Turing MA1280H Uncooled Infrared Module

China Moneypro

Turing MA1280H uncooled infrared module is developed based on excellent design to pursue high reliability and high performance in harsh environments. Along with advanced image algorithms, the product can steadily provide quality infrared images against harsh environments. It is equipped with rich lenses and multiple extension components to satisfy high-performance application requirements in industries such as electro-optical pods, vehicle-mounted applications, outdoor and security.

Feature

Superior Performance

It features a proprietary 12 m VOx uncooled infrared detector, delivering a resolution of 1280 × 1024. With an NETD of 40 mK @25°C and an F# of 1.0, it ensures high thermal sensitivity.

High Reliability

The material can withstand an impact resistance of up to 1000 g at a duration of 0.3 milliseconds.

Multiple Selections

This interface supports output via Camera Link, BT1120, HDMI, or USB.
Deliver athermalized lens solutions with diverse specifications, designed to support autofocus and zoom functionality across a wide range of applications.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	1280 × 1024
	Frame Rate	50 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤40 mK at 25°C, F#1.0
	Thermal Time Constant	≤15 ms
Image Adjustment	Brightness/Contrast Adjustment	Automatic / Manual brightness and contrast adjustment
	Polarity	Black-hot / White-hot
	Palette	Support
	Image Correction	Automatic / Manual / Background correction available
	Reticle	Display / Blank (default) / Move (digital video)
	Digital Zoom	1.0~8.0× continuous zoom (step size: 0.1)
	Image Processing	TEC-less temperature control algorithm / Non-uniformity correction / Digital filtering noise reduction / Digital detail enhancement
	External Synchronization Function	Self-synchronization / Internal / External / Adaptive synchronization mode
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	6–20 V DC, Typical 6 V
	Typical Power Consumption @25°C (without extension)	Steady status ≤1 W
	Insulation Protection	Enclosure ground insulated from signal and power ground, insulation resistance >10 MΩ
Interface	Digital Video	BT.1120 / LVCMOS
	Analog Video	None
	Serial Communication Interface	RS-422 / RS-232 / UART
	Extension Components	Camera Link / BT.1120 / HDMI / USB
	External Synchronization	LVTTL
Physical Characteristics	Dimensions (without lens and extension)	32 × 32 × 25.5 mm
	Weight (3.2 mm, without extension)	43 ±5 g
Environment Adaptability	Operating Temperature	-40°C ~ +60°C
	Storage Temperature	-45°C ~ +70°C
	Humidity	5~95%, non-condensing
	Vibration	6.06 g, random vibration, three axes, 5 min/axis
	Impact	1000 g @ 0.3 ms, optical axis direction
