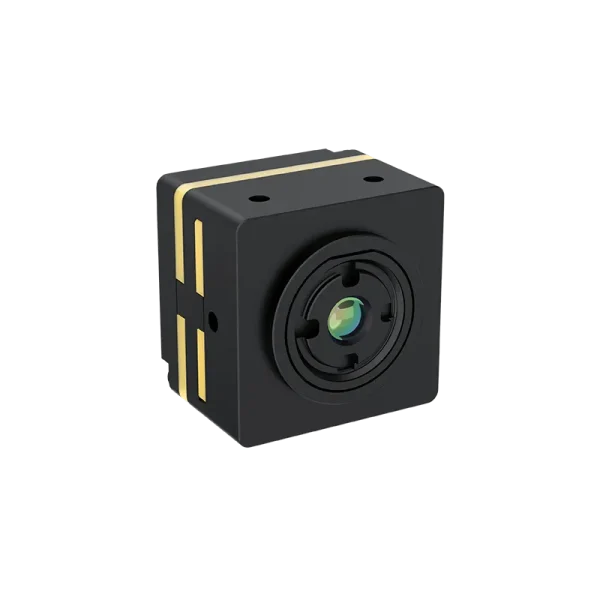

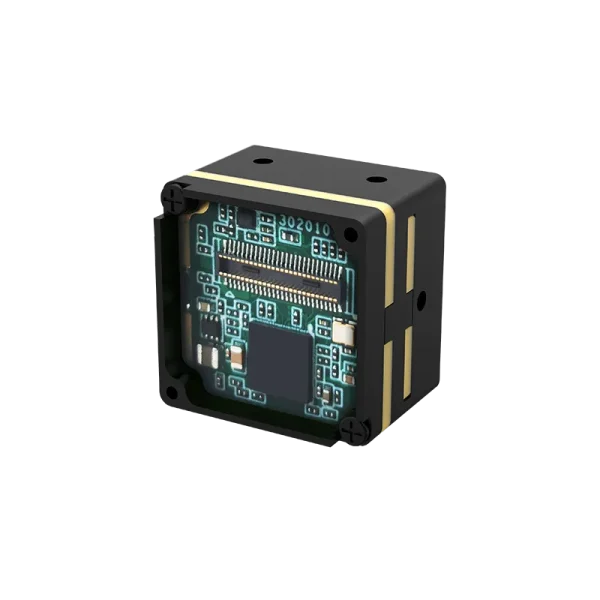

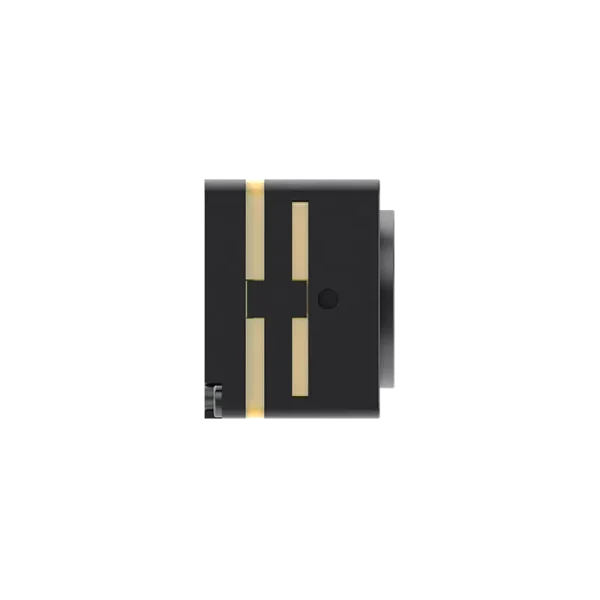

Turing ML256 Uncooled Infrared Module (Temperature Measurement)

Turing ML256 uncooled infrared module is equipped with an advanced 256 192 wafer detector with a dimension of 18 18mm. Thanks to its integrated design, it redefines standards in weight, dimension and power consumption (SWaP3) in the OEM module industry. As the best choice for low-cost solutions, it can be used in many fields such as industry, power, security, and machine vision.

Feature

Compatibility Design

Its resolution of 256 × 192 and 18 mm × 18 mm dimensions match those of the L384 mechanical interface to support compatibility design.

Excellent Performance

-20°C to +550°C broad sensing capability, adaptable to diverse operating conditions across various use cases.

Multiple Selections

The field of view ranges from 20 to 90, and the expansion interface is compatible with both DVP and USB.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	256 × 192
	Frame Rate	25 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK @ 25°C
Image Adjustment	Brightness/Contrast Adjustment	Manual / Auto
	Polarity	Black-hot / White-hot
	Palette	Supports multiple types
	Reticle	Display / Blank / Move
	Image Processing	Digital filtering noise reduction / Digital detail enhancement
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	3.8~5.2 V DC / 1.8 V / 3.3 V
	Typical Power Consumption @25°C (without extension)	≤0.3 W
Interface	Digital Video	CDS3
	Serial Communication Interface	UART
	Extension Components	USB 2.0
Temperature Measurement Performance	Measurement Range	-20°C ~ +550°C (temperature measurement series)
	Measurement Accuracy	±3°C or ±3% of reading (whichever is greater) @ Ambient temperature -20°C ~ +60°C
Physical Characteristics	Dimensions (without lens and extension)	18 × 18 mm
	Weight (3.2 mm, without extension)	Approx. 8.7 g
	Lens Model	2 mm, 3.2 mm, 7 mm, 10 mm, 13 mm
Environment Adaptability	Operating Temperature	-20°C ~ +60°C
	Storage Temperature	-45°C ~ +85°C
	Humidity	5~95%, non-condensing
Product Certification	Certification	RoHS 2.0
