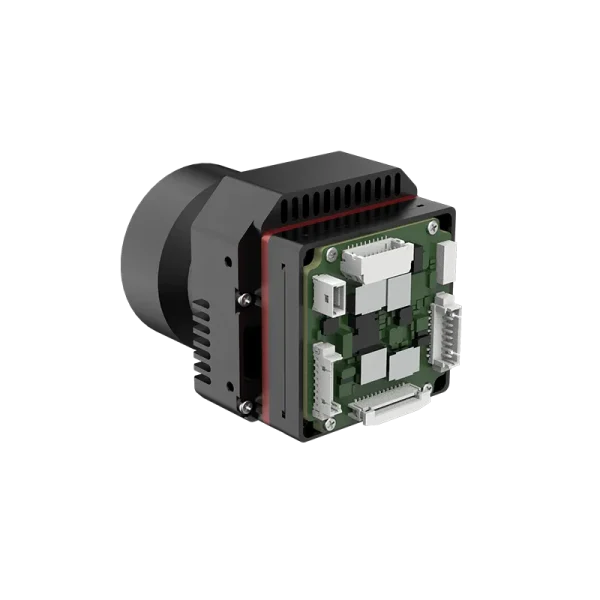

Turing MF384 Uncooled Infrared Module (Temperature Measurement)

China Moneypro

The Turing F384 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and high-accuracy temperature measurement algorithms.

The products can be widely used in application scenarios such as security monitoring, industrial temperature measurement, forest fire prevention, and rail transportation.

Feature

All Scenario and All Application

Across a field of view spanning 10 to 62, precise temperature readings are achievable in any situation.
It is suitable for both digital and networking needs across all use cases.

Stable, Precise, and Accurate

Achieves efficient thermal equilibrium and delivers high-precision temperature measurements with an accuracy of ±2°C across a broad range from -20°C to 650°C for the module, while enabling precise compensation based on target distance.
It can provide a complete set of temperature data outputs to support further temperature analysis.

Multiple Video Interfaces, Easy for Secondary Development

It supports multiple video output interface options, such as BT.601 and BT.1120, along with extended support for SDI, USB, Cameralink, and HDMI interfaces.
It offers a variety of SDKs that are straightforward and user-friendly, helping to speed up the development process, boost productivity, and lower the expenses associated with secondary development.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	384 × 288
	Detector Frame Rate	50 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤40 mK at 25℃, F#1.0
Image Adjustment	Palette	Support (20 types)
	Digital Zoom	1.0~8.0× continuous zoom (step size: 0.1)
	Image Processing	Non-uniformity correction / Brightness & contrast adjustment / Temporal filtering / Spatial filtering noise reduction / Digital detail enhancement / Style adjustment
	Mirroring	Horizontal / Vertical / Diagonal
Network Function	Network Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, etc.
	Platform Access	Modbus TCP, MQTT protocols, ONVIF, GB28181, SDK
	Simultaneous Previewed Videos	Up to 8 channels
	User Management	Up to 20 users, 3 levels: administrator, operator, user
	Browser	Google Chrome, Firefox, Edge, etc.
Intelligent Functions	Intelligent Video	Supported
	Intelligent Alarm	Supports abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, illegal access
	Intelligent Detection	Supports regional intrusion, tripwire intrusion, passenger and vehicle recognition
	Alarm Linkage	Video recording / Image capture (thermal images supported) / Email / Linked PTZ / Alarm output
Lens	Lens Type	Athermalized / Prime electric focus
	Focus Mode	Manual / Automatic
	Electric Focusing	Supported
	Electric Zooming	Not supported
Digital	Power Supply Range	12V DC ±10%
	Typical Power Consumption @25°C	<1.5 W
	Digital Video	LVCMOS / BT.601 / BT.1120
	Communication Interface	RS-232 / UART
Network Type	Power Supply Range	9-15V DC (Recommended: 12V DC)
	Typical Power Consumption @25°C	<2.4 W (typical, @25°C)
	Communication Interface	One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART
	Alarm Interface	1-channel input, 1-channel output
	Audio Interface	1-channel input, 1-channel output
Interface	Analog Video	1-channel PAL system
Environment Adaptability	Operating Temperature	-40℃ ~ +70℃
	Storage Temperature	-45℃ ~ +85℃
	Humidity	5~95%, non-condensing
	Product Certification	RoHS2.0
PTZ Function	Fire Warning	Supports fire point detection
Thermal Imaging	Measurement Range	-20℃ ~ +150℃, 0℃ ~ +650℃
	Measurement Accuracy	±2°C or ±2% of reading (whichever is greater) @ ambient temperature -20°C ~ +60°C
