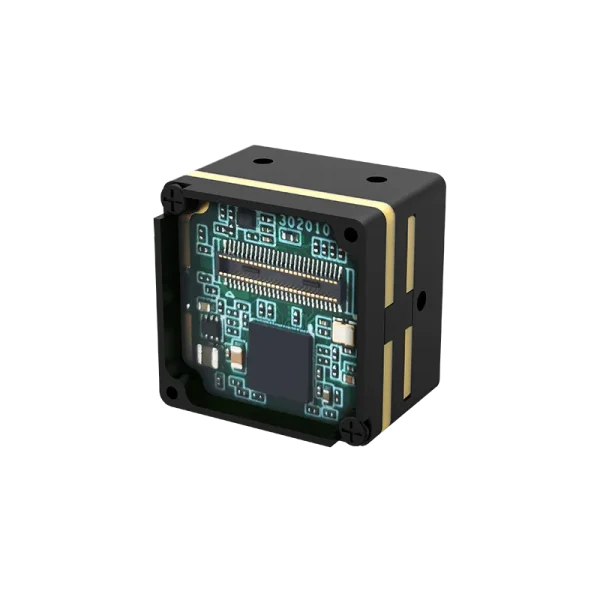

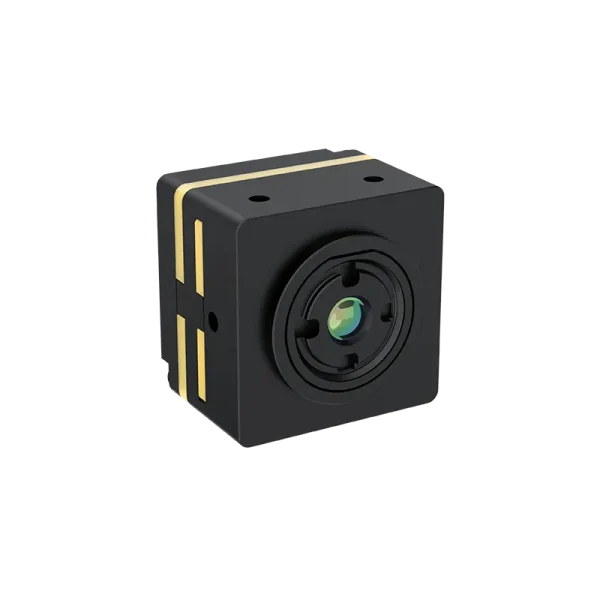

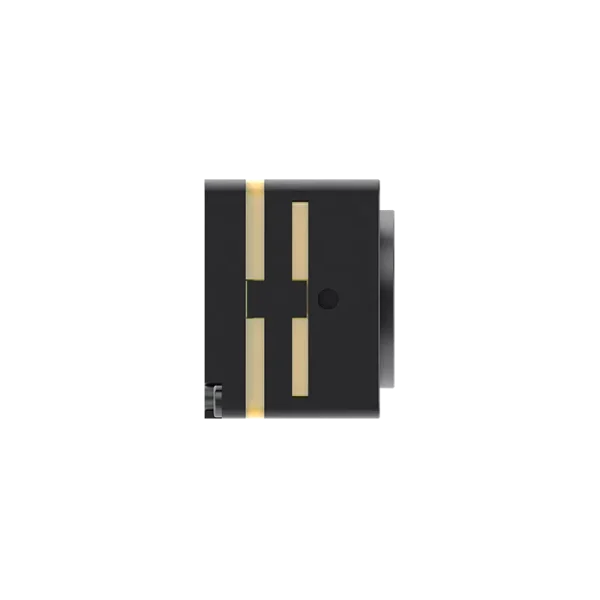

Turing ML256 Uncooled Infrared Module (Imaging)

China Moneypro

Turing ML256 uncooled infrared module is equipped with an advanced 256 192 wafer detector with a dimension of 18 18mm. Thanks to its integrated design, it redefines standards in weight, dimension and power consumption (SWaP3) in the OEM module industry, providing excellent miniaturized solutions for consumer products.

Feature

Compatibility Design

Its resolution of 256 × 192 and dimensions of 18 mm × 18 mm match those of the L384 mechanical interface to ensure design compatibility.

Excellent Performance

50Hz imaging ensures a flicker-free and visually comfortable viewing experience.

Multiple Selections

The field of view (FOV) ranges from 20 to 90 degrees, and the extension is compatible with various interfaces including DVP, USB, and analog video.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	256 × 192
	Frame Rate	50 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK @ 25°C
Image Adjustment	Brightness/Contrast Adjustment	Manual / Auto
	Polarity	Black-hot / White-hot
	Palette	Supports multiple types
	Reticle	Display / Blank / Move
	Image Processing	Digital filtering noise reduction / Digital detail enhancement
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	3.8~5.2 V DC / 1.8 V / 3.3 V
	Typical Power Consumption @25°C (without extension)	≤0.35 W
Interface	Digital Video	LVCMOS / BT.1120
	Serial Communication Interface	UART
	Extension Components	USB 2.0 / Analog video
Physical Characteristics	Dimensions (without lens and extension)	18 × 18 mm
	Weight (3.2 mm, without extension)	Approx. 8.7 g
	Lens Model	2 mm, 3.2 mm, 7 mm, 10 mm, 13 mm
Environment Adaptability	Operating Temperature	-20°C ~ +60°C
	Storage Temperature	-45°C ~ +85°C
	Humidity	5~95%, non-condensing
Product Certification	Certification	RoHS 2.0
