China Moneypro
MTN650 Handheld Thermal Binoculars
China Moneypro
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024 768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
640 480IR resolution
50mm/F1.2Focal Length
30mKNETD
2.8X~22.4XMagnification

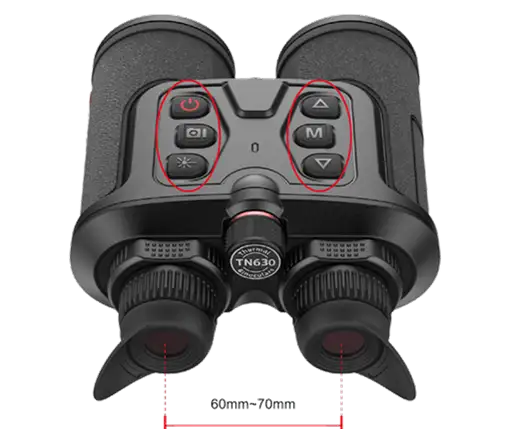

Ergonomic design Easy observation
Binocular construction helps minimize eye strain during extended viewing sessions; Interpupillary distance adjusts from 60mm to 70mm, accommodating a wide range of users; Ergonomically shaped with tactile raised buttons for easy identification by touch, even in complete darkness.
Quick location All new experience
In low-light conditions, laser ranging provides precise positioning by utilizing distance data.
High Quality Imaging In Day and Night
The uncooled infrared imaging system features a resolution of 400 × 300 VOx and supports a 50 Hz frame rate, ensuring smooth tracking and observation of moving targets.
Full-color AMOLED display
1024 x 768 Full-color AMOLED with enhanced contrast, boosted image details, and optimized viewing comfort.

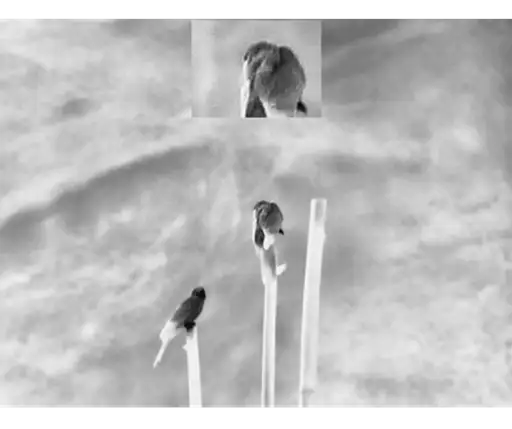

Well-designed PIP mode, highlighting the target
With PIP mode, you can immediately pinpoint the target’s location, even when you’re outdoors.

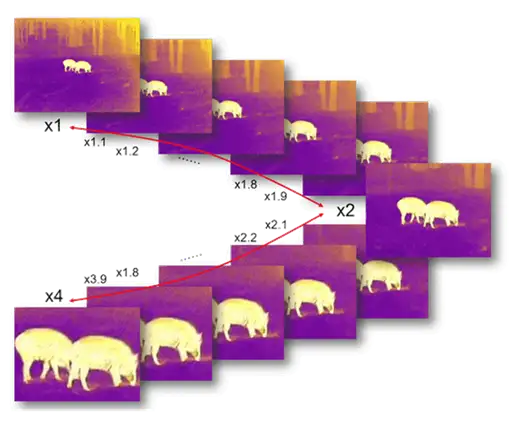

Smooth Zoom For Flexible Searching
Long press the up or down button to enable smooth zoom adjustments, making the search process more flexible and allowing you to pinpoint your target more quickly.

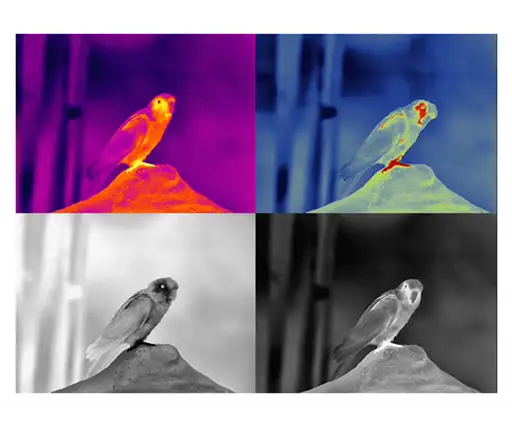

Multiple Color Palettes to Highlight the Target
Here are six color palettes for thermal imaging: white-hot, black-hot, red-hot, green-hot, iron red, and blue heat.
Enable one-touch switching for instant target location identification, supporting round-the-clock observation capabilities.

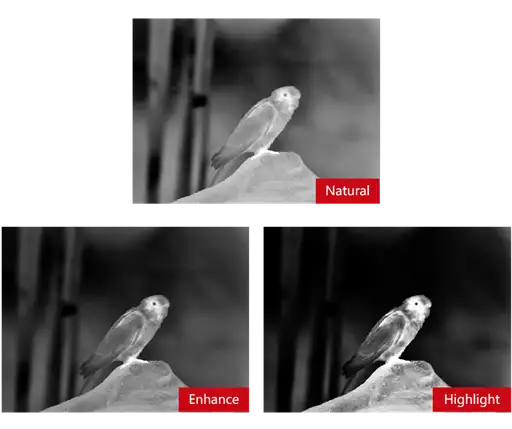

Multiple scene modes,Highlight Target Clearly
With a single button, you can effortlessly toggle between Enhance, Highlight, and Natural modes. The image adapts intelligently to various scenes, while the Enhance and Highlight functions effectively minimize visual noise to make the target stand out more clearly.
Photo and Video Recording
With support for both photos and videos, you can capture wonderful moments anytime, anywhere. Through a Wi-Fi connection, enjoy remote control and real-time image and video transmission. You can also easily share your content to social media using the dedicated app.

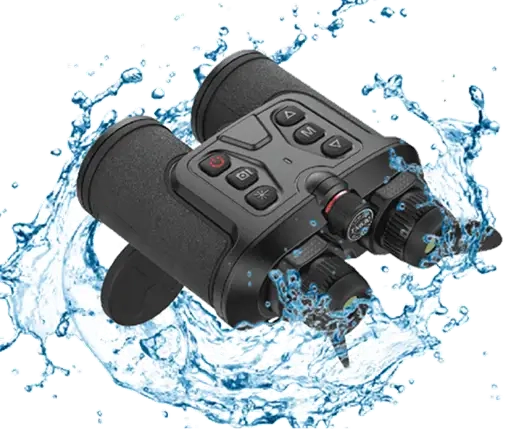

IP66, 1-meter Drop test
With an IP66 waterproof rating, this device is built to withstand heavy rain, dust, and physical impact. It operates reliably in temperatures ranging from -30°C to 50°C, making it suitable for various harsh weather conditions. Additionally, it has passed UN38.3 battery certification, as well as RoHS, CE, and FCC standards. Quality is fully assured.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 640 480@12 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.2 | |||
| Field of view | 8.78 6.59 | |||
| FOV m@100m | 15 12 | |||
| Magnification | 2.8x~22.4x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024 768 | |||
| Color palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C; Micro HDMI | |||
| Others | GPS, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 16GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 5.5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30 C to 50 C / -22 F to +122 F | |||
| Encapsulation | IP66 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 880/31.04 | |||
| Size (mm/in) | 162 146 70/6.38 5.75 2.76 | |||
| Standard | Device, lens cap, 2 detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide | |||
| Optional | Extended bracket, Bluetooth remote control | |||
