MTN630 Handheld Thermal Binoculars
China Moneypro
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024 768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
640 480IR resolution
35mm/F1.2Focal Length
30mKNETD
2.0X~16XMagnification

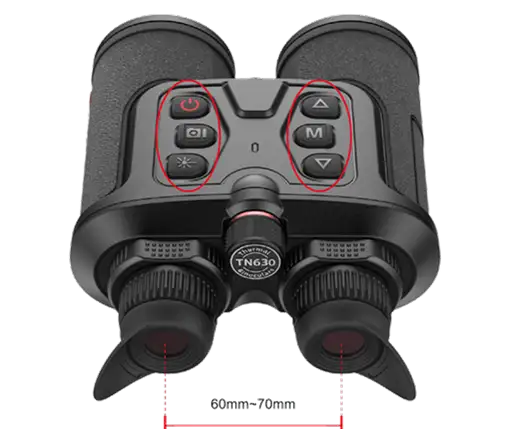

Ergonomic design Easy observation
Featuring a binocular configuration that significantly eases eye strain during extended viewing sessions. The interpupillary distance is adjustable from 60mm to 70mm, accommodating a wide range of users. Ergonomically engineered with raised buttons, allowing for instant tactile identification even in complete darkness.

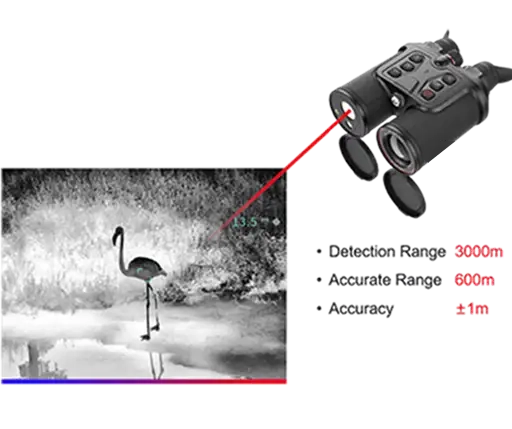

Quick location All new experience
In darkness, laser ranging provides precise positioning by utilizing distance data.
High Quality Imaging In Day and Night
Equipped with a 400 × 300 VOx uncooled infrared detector and a 50 Hz frame rate, this system enables smooth tracking of moving targets.
Full-color AMOLED display
1024 x 768 Full-color AMOLED, ultra-high contrast, enhanced image clarity, and optimized eye comfort for extended viewing.

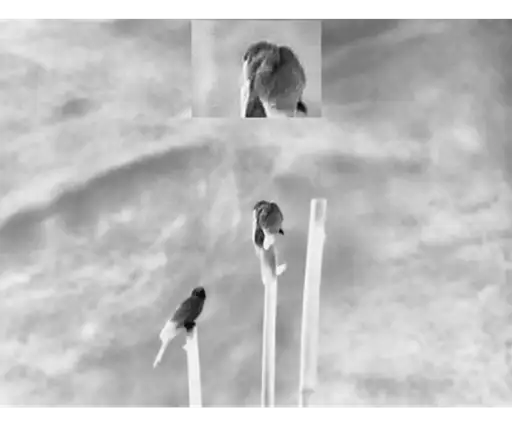

Well-designed PIP mode, highlighting the target
Instantly pinpoint the target’s location using PIP mode, even in outdoor environments.

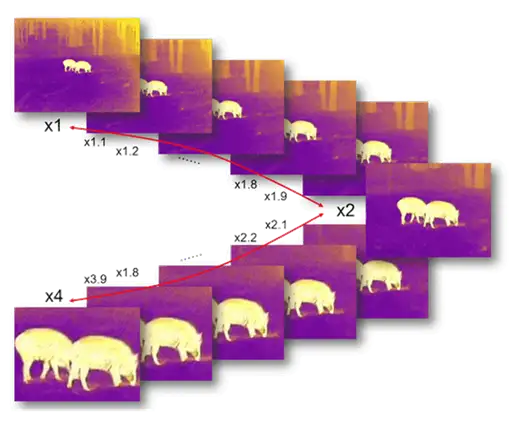

Smooth Zoom For Flexible Searching
Long press the up or down button to enable smooth zooming, making searching more flexible and allowing you to pinpoint your target more quickly.

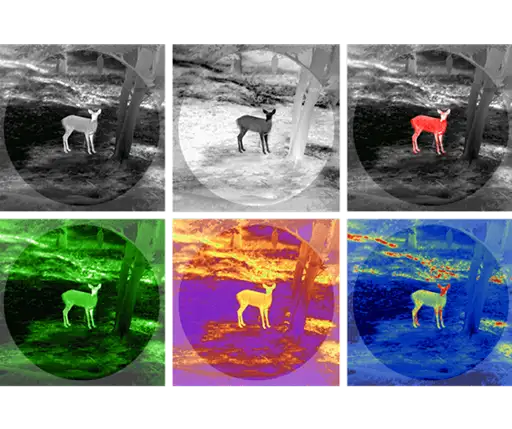

Multiple Color Palettes to Highlight the Target
Six color options: white-hot, black-hot, red-hot, green-hot, iron red, and blue heat.
Enable one-touch target localization for instant identification, supporting round-the-clock observation capabilities.

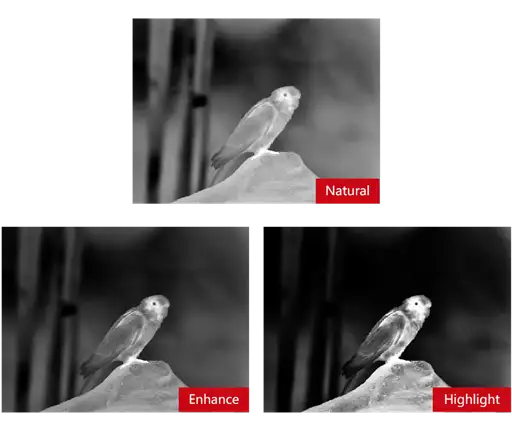

Multiple scene modes,Highlight Target Clearly
One-button toggling between Enhance, Highlight, and Natural modes allows the image to adapt intelligently to various scenes. Both Enhance and Highlight modes effectively minimize visual noise, helping to emphasize the intended subject.

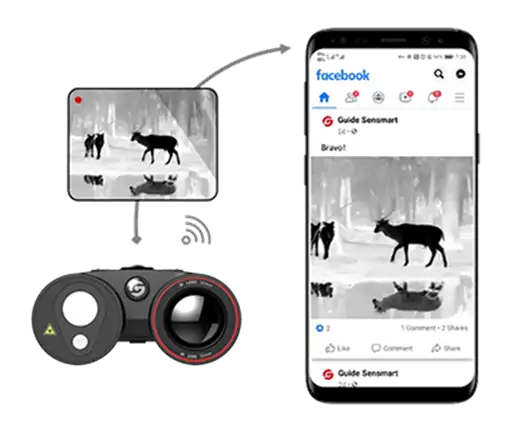

Photo and Video Recording
Capture photos and videos anytime to preserve your precious moments. With remote control and real-time image and video streaming over WiFi, you can easily share them to your social media via the app.

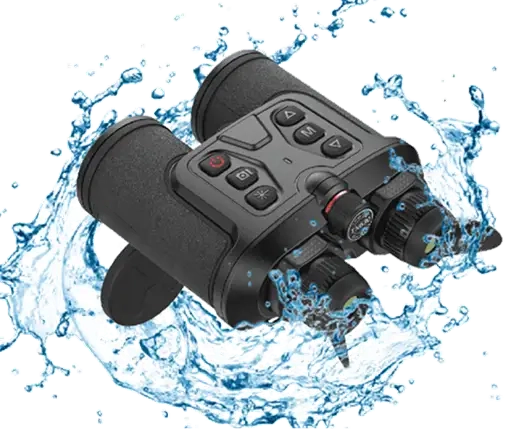

IP66, 1-meter Drop test
With an IP66 waterproof rating, this product is built to withstand heavy rain, dust, and physical impact. It operates reliably in temperatures ranging from -30°C to 50°C, making it ideal for various extreme weather conditions. Additionally, it has passed rigorous certifications including UN38.3 for battery safety, as well as RoHS, CE, and FCC—ensuring high quality and compliance.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 640 480@12 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.2 | |||
| Field of view | 12.52 9.41 | |||
| FOV m@100m | 22 16 | |||
| Magnification | 2.0x~16.0x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024 768 | |||
| Color palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C; Micro HDMI | |||
| Others | GPS, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 16GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 5.5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30 C to 50 C / -22 F to +122 F | |||
| Encapsulation | IP66 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 860/30.34 | |||
| Size (mm/in) | 162 146 70/6.38 5.75 2.76 | |||
| Standard | Device, lens cap, 2 detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide | |||
| Optional | Extended bracket, Bluetooth remote control | |||
