China Moneypro MMY5221 Long-Range Multifunction Thermal Binoculars (Cooled Type)

China Moneypro

China Moneypro MMY5221 is a multifunctional handheld binocular system that integrates HOT mid-wave cooled IR imaging, visible light imaging, and LRF (Laser Rangefinder) into a compact intelligent platform.
Equipped with a 1024 768 @10 m rapid-cooling infrared detector, electronic compass, zoom IR/day sight lens, and WiFi module, it supports self-positioning, target positioning, target cueing, and recognition capabilities.
With advanced fusion mode, it combines infrared, visible light, and data processing for day/night observation, target search, and precise ranging. The system also supports photo/video recording, real-time data transmission, and multi-environment adaptability.
China Moneypro MMY5221 is designed for combat reconnaissance, precise targeting, and battlefield awareness, serving as a powerful tactical companion for modern infantry

Key Features

Equipped with1024 768 @10 m rapid-cooling IR detector, achieving cooling time 2.5 minutes.
Supportscontinuous optical zoomfor both infrared and visible light modules, providing flexible observation adjustment.

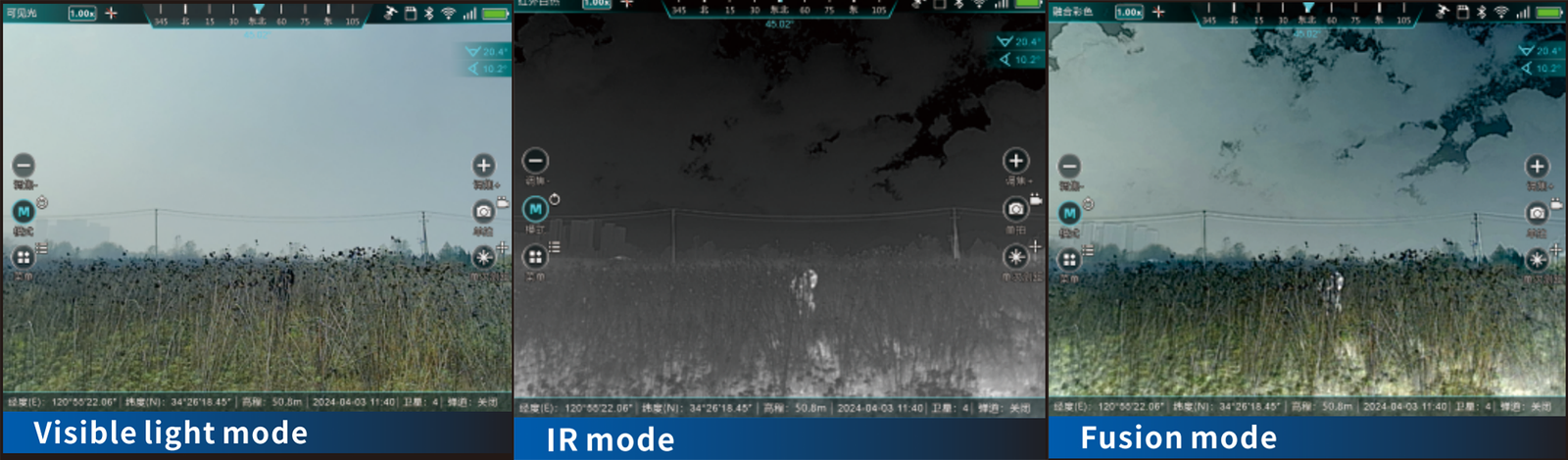

Fusion mode with narrow field-of-view integration, delivering clear imaging and detailed rendering.
Integrated withBD+GPS+GLONASS positioning, electronic compass, WiFi, and geolocation tracking.
High-definition visible light sensor withfog penetrationfor complex environments.
Rapid acquisition oflocal geographic coordinatesand azimuth data for accurate target identification.
Battery undervoltage indicationandreverse polarity protectionensure safe operation.

China Moneypro MY5221 Long-Range Multifunction Thermal Binoculars (Cooled Type)

Technical Parameters

IR Module

Detector Type: Cooled IR FPA with HOT Technology 1024 768 @10 m
FOV: 2.6 2 ~ 8.2 6.2

Visible Light Module

Detector Type: Color HD CMOS, 1/1.8 , 4MP
FOV: 1.93 1.54 ~ 8.84 7.08

Positioning & Orientation

Mode: BD+GPS+GLONASS
DMC Accuracy: 0.5
Self-Position Precision: CEP 5m, Pe 5m
Target Locating Precision: CEP 30m (target at 3km)

Laser Designation

Wavelength: 830nm / 660nm
Range: >600m (Low), >2000m (High)

Laser Rangefinder

Wavelength: 1.535 m (Eye-Safe)
Range: 80m ~ 10000m
Precision: 2m

Imaging

Infrared: Supports brightness/contrast adjustment, white hot & black hot polarity switching
Visible Light: Supports defogging, brightness, and contrast adjustment
Magnification: 1.0 C4.0 continuous optical zoom & E-zoom

Other Specs

Weight: 3kg (without battery)
Operating Time: 6h
Battery: 8 Military 18650 Rechargeable Batteries
Interface: USB / PAL / RS232 / HDMI / WiFi / Bluetooth
Operating Temperature: -40 ~ +55
Storage Temperature: -55 ~ +70
Protection Level: IP67

Effective Range

Visible Light:

Personnel Recognition: 4km
Vehicle Recognition: 8km
Personnel Detection: 8km
Vehicle Detection: 20km
- Infrared:
Personnel Recognition: 3.5km
Vehicle Recognition: 7km
Personnel Detection: 8.7km
Vehicle Detection: 17.5km

FAQs

Q1: How quickly can the China Moneypro MY5221 be ready for operation?
A1: The cooled IR detector takes only 2.5 minutes to cool down, enabling fast field deployment.

Q2: What is the maximum target detection range of the China Moneypro MY5221?
A2: Equipped with an eye-safe 1.535 µm laser rangefinder, the MY5221 can spot targets up to 10 km away, with an accuracy of ±2 meters.

Q3: Does the system perform well in fog or poor visibility conditions?
A3: Yes. Its visible light sensor includes fog-penetration and defogging capabilities, ensuring clear imaging even in adverse weather.

Q4: Is the China Moneypro MY5221 appropriate for extended missions?
A4: Running on 8 standard military-grade 18650 batteries, it offers 6 hours of continuous use, making it well-suited for long-duration reconnaissance.

Q5: How does the system improve situational awareness on the battlefield?
A5: By integrating fusion mode, GPS/GLONASS positioning, and Wi-Fi real-time data sharing, it enables multispectral target detection and instant tactical information relay.
