Key Features

• Delivers highly accurate measurements, outstanding stability, and reliable repeatability.
• Enables fast target positioning with robust signal acquisition and precise geolocation.
• Identifies targets effectively and automatically flags critical threats.
• Supports voice-driven controls for intuitive field operations and command coordination.

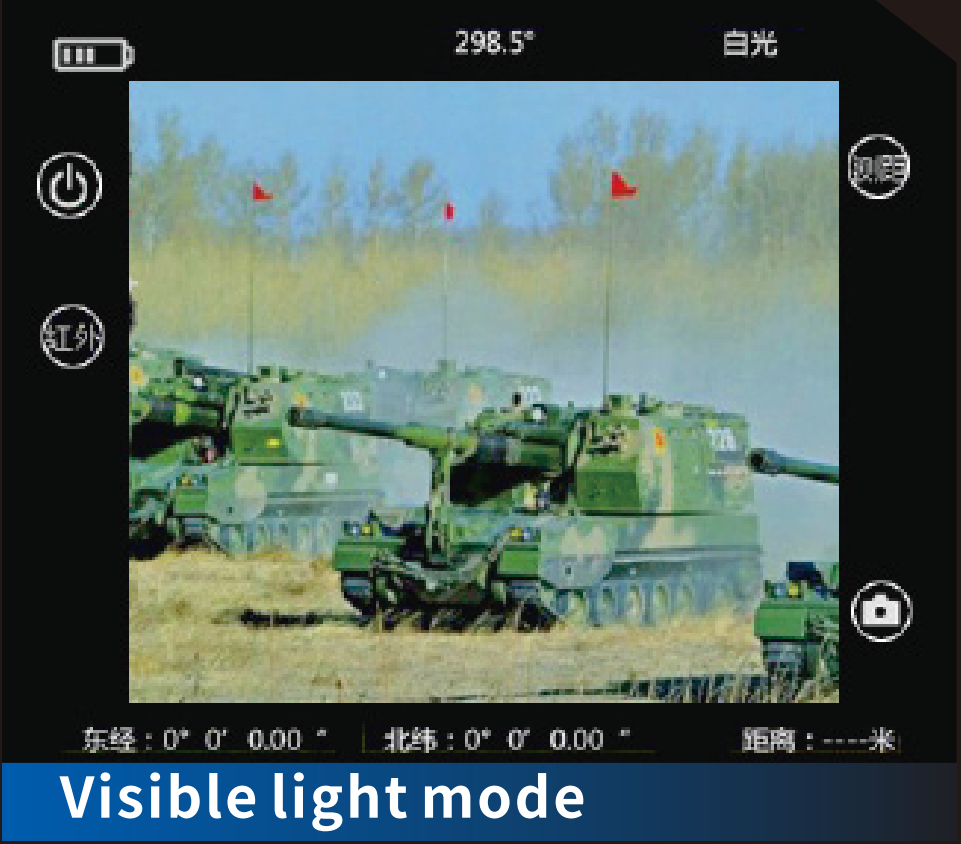

• Operates in both IR and visible light modes to maintain image clarity under any conditions.
• Provides long mission endurance with up to 10 hours of continuous use.
• Integrates a BeiDou positioning module for improved navigation and targeting precision.

Technical Parameters

Thermal Camera

• Detector Type: Uncooled IR FPA
• Resolution: 640 512
• Wavelength: 12 m
• FOV: 6.1 5.0

Day Camera

• FOV: 3 2.2
• Defog: Supported (penetration ratio 1.5 when visibility 4km)

Laser Rangefinder

• Range: 50mC6000m
• Precision: 2m
• Accuracy: 98%
• Wavelength: 1.535 m (Eye-safe)

BeiDou Positioning Accuracy

• Horizontal: 6m (CEP)
• Elevation: 8m (PE)
• Supports external BeiDou module interface

Target Locating Precision

• DMC Accuracy: 0.5 (RMS, inclination range -15 ~ +15 )
• CEP 20m (target @ 2km)

Power & Operation

• Operation Time: 10hrs (ambient temperature)
• Power Interface: Supports external supply

Physical Characteristics

• Weight: 1.6kg
• Carrying Weight: 2.3kg

Interfaces

• Data: Standard USB
• Video: Standard PAL
• Communication: RS232

Environmental Adaptability

• Operating Temperature: -40 C ~ +55 C
• Storage Temperature: -55 C ~ +70 C

Effective Range

• Visible Light Recognition:Personnel 3km | Vehicle 6km
• Visible Light Detection:Personnel 6km | Vehicle 12km
• IR Recognition:Personnel 1.2km | Vehicle 2.5km
• IR Detection:Personnel 2.4km | Vehicle 5km

FAQ

Q1: What is the farthest target acquisition range of the China Moneypro MY522B thermal binoculars?
A1: In infrared mode, the MY522B can pick up human-sized targets from up to 2.4 km away and vehicle-sized targets from up to 5 km. When using visible light mode, vehicle detection range extends to 12 km.

Q2: How reliable is the laser rangefinder under real combat conditions?
A2: The built-in 1.535 µm eye-safe laser rangefinder operates from 50 m to 6,000 m, delivering measurement accuracy within ±2 meters and a 98% success rate, ensuring dependable distance data in the field.

Q3: Does the China Moneypro MY522B support GNSS or BeiDou for precise location tracking?
A3: Yes. It comes with an integrated BeiDou positioning module, offering horizontal accuracy of ≤6 meters CEP and vertical accuracy of ≤8 meters, which is well-suited for reporting target coordinates.

Q4: What is the continuous field operating time of the system?
A4: Thanks to efficient power management, the MY522B supports up to 10 hours of non-stop operation under normal temperature conditions, making it suitable for prolonged surveillance tasks.

Q5: Can the China Moneypro MY522B withstand extreme weather and rough terrain?
A5: Definitely. Designed for tough environments, it operates flawlessly in temperatures from -40°C to +55°C and has been validated for stable performance in freezing cold, high heat, high altitude, rainforests, and deserts.
