China Moneypro
MTN450 Handheld Thermal Binoculars
China Moneypro
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024 768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
400 300IR resolution
50mm/F1.2Focal Length
30mKNETD
3.2X~12.8XMagnification

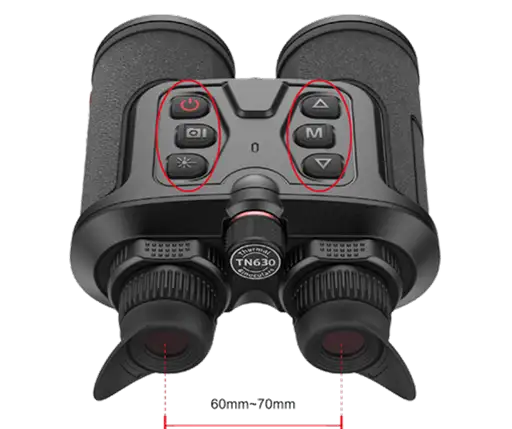

Ergonomic design Easy observation
Binocular design significantly minimizes eye strain during extended viewing sessions. The interpupillary distance is adjustable from 60mm to 70mm, accommodating a wide range of users. Ergonomically designed with raised buttons, the device allows for instant tactile recognition even in complete darkness.

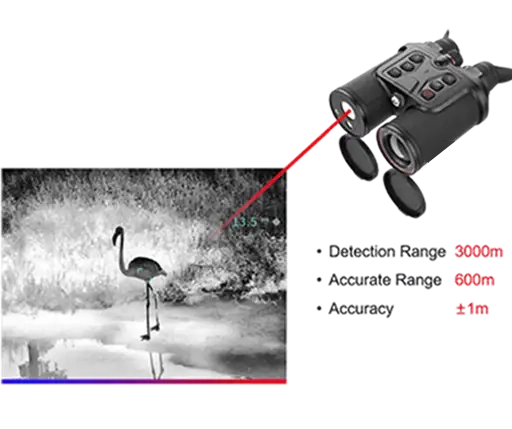

Quick location All new experience
In low-light conditions, laser ranging provides precise positioning by utilizing distance data.

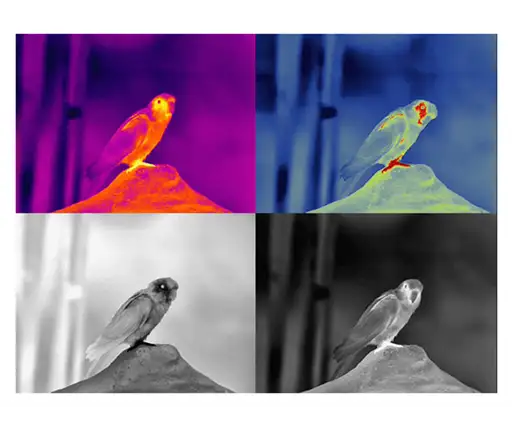

High Quality Imaging In Day and Night
The uncooled infrared detector features a resolution of 400 × 300 (VOx microbolometer) and supports a 50 Hz frame rate, ensuring smooth tracking of moving targets.
Full-color AMOLED display
1024 x 768 Full-color AMOLED with enhanced contrast, boosted image detail, and optimized viewing comfort.
Well-designed PIP mode, highlighting the target
Enable PIP mode to pinpoint the target’s location immediately, even in outdoor environments.

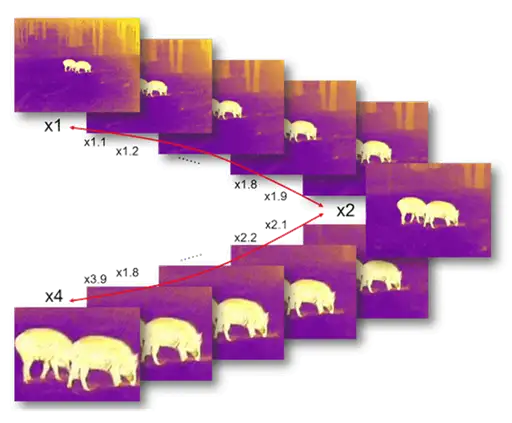

Smooth Zoom For Flexible Searching
Long press the up or down button to enable smooth zooming, making the search process more flexible and allowing you to locate your target faster.

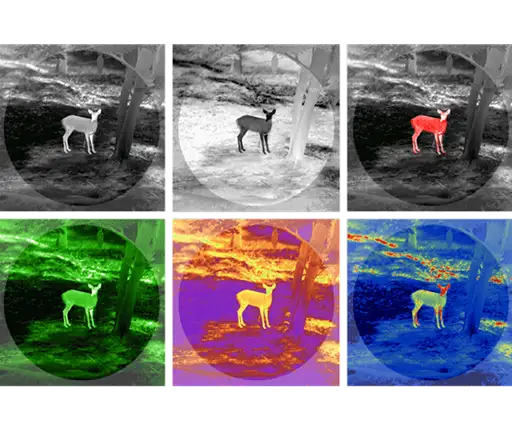

Multiple Color Palettes to Highlight the Target
Here are six color palette options for thermal imaging: white hot, black hot, red hot, green hot, iron red, and blue heat.
Enable one-touch target localization for instant identification, supporting round-the-clock observation capabilities.

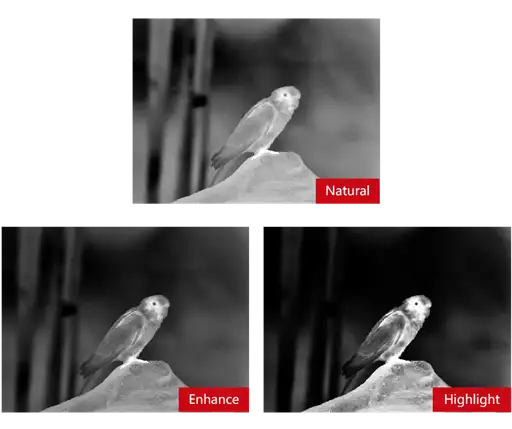

Multiple scene modes,Highlight Target Clearly
With a single button, you can quickly toggle between Enhance, Highlight, and Natural modes. The image adaptively adjusts to different scenes, while the Enhance and Highlight options effectively reduce visual noise to make the target stand out more clearly.
Photo and Video Recording
Capture photos and videos to preserve your precious moments anytime, anywhere. With WIFI remote control, enjoy real-time image and video streaming. Easily share your memories to social media directly through the app.

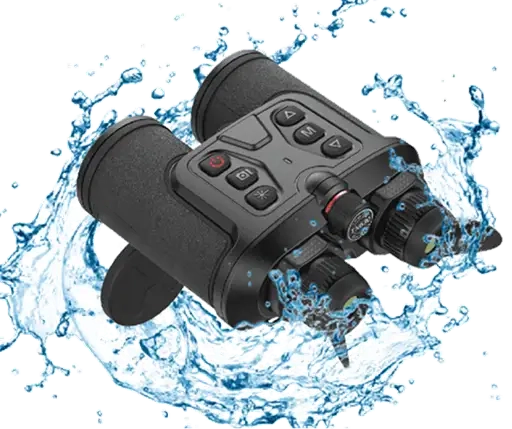

IP66, 1-meter Drop test
With an IP66 waterproof rating, this device is built to withstand heavy rain, dust, and physical impact. It operates reliably in temperatures ranging from -30°C to 50°C, making it suitable for various harsh weather conditions. Additionally, it has passed UN38.3 battery safety certification, along with RoHS, CE, and FCC standards—ensuring dependable quality.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 400 300@17 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.2 | |||
| Field of view | 7.78 5.84 | |||
| FOV m@100m | 14 10 | |||
| Magnification | 3.2x~12.8x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024 768 | |||
| Color palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1000m/1090yd | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C; Micro HDMI | |||
| Others | GPS, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 16GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 5.5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30 C to 50 C / -22 F to +122 F | |||
| Encapsulation | IP66 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 880/31.04 | |||
| Size (mm/in) | 162 146 70/6.38 5.75 2.76 | |||
| Standard | Device, lens cap, 2 detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide | |||
| Optional | Extended bracket, Bluetooth remote control | |||
| IP66 | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 5.5 hours | |||
