MTN430 Handheld Thermal Binoculars
China Moneypro
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024 768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
400 300IR resolution
35mm/F1.2Focal Length
30mKNETD
2.3x~9.2xMagnification

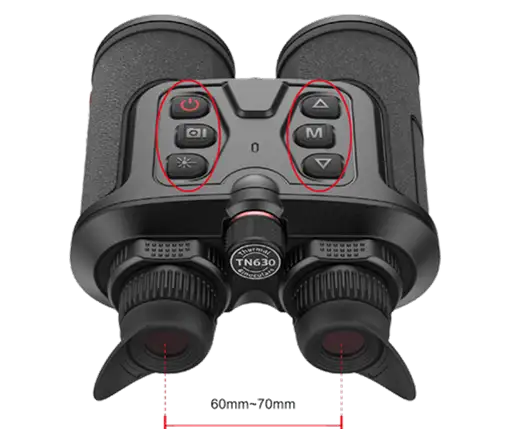

Ergonomic design Easy observation
Featuring a binocular construction that significantly eases eye strain during extended viewing sessions; an adjustable interpupillary range from 60mm to 70mm to accommodate various users; and an ergonomic layout with raised buttons for instant tactile identification, even in complete darkness.

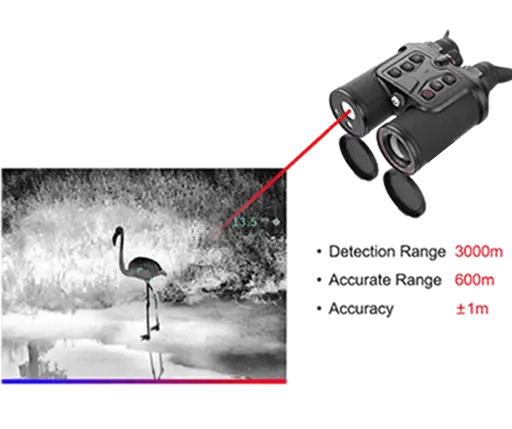

Quick location All new experience
In low-light conditions, laser ranging provides precise positioning by utilizing distance data.
High Quality Imaging In Day and Night
The uncooled IR detector features a resolution of 400 × 300 (VOx) and supports a 50 Hz frame rate, ensuring smooth observation of moving targets.
Full-color AMOLED display
1024 x 768 Full-color AMOLED, enhanced contrast, refined image details, and optimized eye comfort for extended viewing.

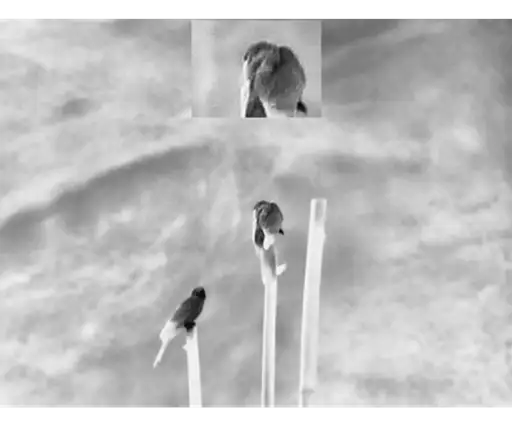

Well-designed PIP mode, highlighting the target
With PIP mode, you can instantly pinpoint the target’s location, even when you’re outdoors.

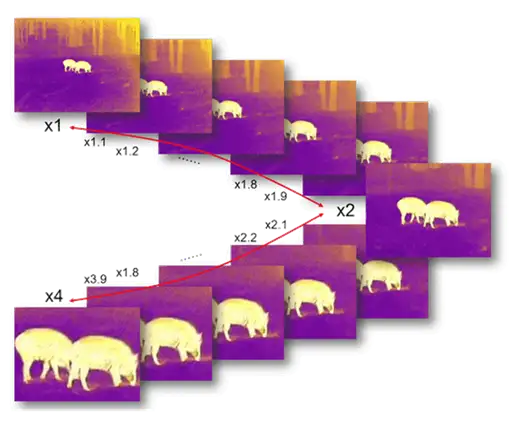

Smooth Zoom For Flexible Searching
Long press the up or down button to enable smooth zooming, making the search process more flexible and allowing you to locate your target more quickly.

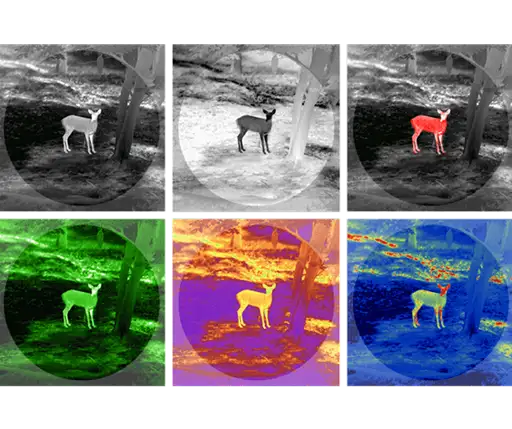

Multiple Color Palettes to Highlight the Target
Six thermal color schemes: white-hot, black-hot, red-hot, green-hot, iron red, and blue heat.
Enable one-touch target localization for instant identification, supporting round-the-clock observation capabilities.

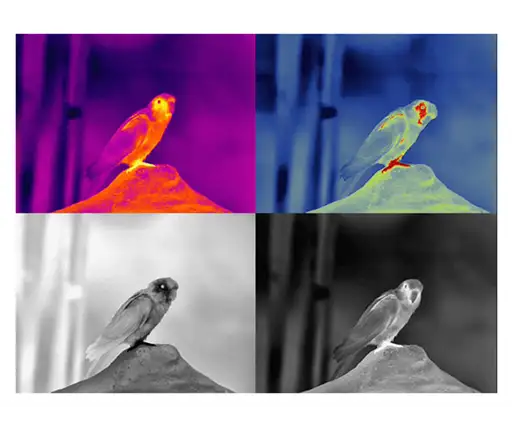

Multiple scene modes,Highlight Target Clearly
With just one button, you can instantly switch between Enhance, Highlight, and Natural modes. The image adapts intelligently to different scenes—Enhance and Highlight modes help suppress visual noise and make the subject stand out more clearly.

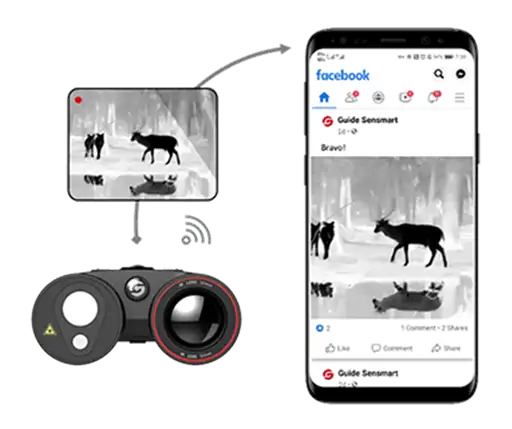

Photo and Video Recording
Capture photos and videos to save your precious moments anytime, anywhere. With WIFI remote control and real-time image and video streaming, you can easily share your memories to social media via the dedicated APP.

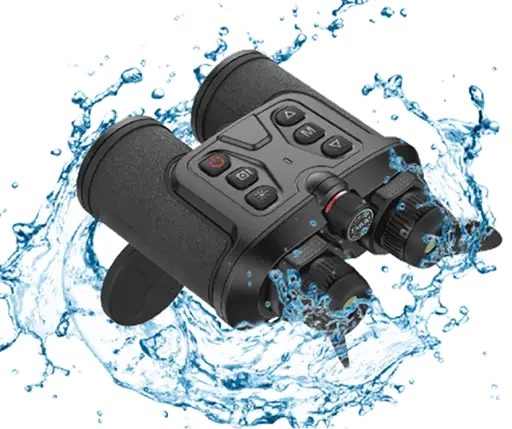

IP66, 1-meter Drop test
With an IP66 waterproof rating, this device is built to withstand heavy rain, dust, and physical impact. It operates reliably in temperatures ranging from -30°C to 50°C, making it ideal for various harsh weather conditions. Additionally, it has passed UN38.3 battery certification as well as RoHS, CE, and FCC standards—ensuring dependable quality and safety.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 400 300@17 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.2 | |||
| Field of view | 11.1 8.33 | |||
| FOV m@100m | 19 15 | |||
| Magnification | 2.3x~9.2x | |||
| Detection range | 1300m/1400yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024 768 | |||
| Color palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1000m/1090yd | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C; Micro HDMI | |||
| Others | GPS, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 16GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 5.5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30 C to 50 C / -22 F to +122 F | |||
| Encapsulation | IP66 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 860/30.34 | |||
| Size (mm/in) | 162 146 70/6.38 5.75 2.76 | |||
| Standard | Device, lens cap, 2 detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide | |||
| Optional | Extended bracket, Bluetooth remote control | |||
