China Moneypro
MN425 Thermal Imaging Scope
China Moneypro
The Nova Series thermal imaging scope is tailored for hunters seeking high performance and portability. Featuring Guide’s latest AI-powered Hyper Light algorithm, it delivers razor-sharp clarity for every detail in the dark. The compact magnesium alloy housing makes it lightweight yet durable. Equipped with standard replaceable 18500 batteries and ballistic calculation algorithm, it ensures you a successful hunting experience.
400×300@12μmIR Resolution
20mKNETD
0.39” 1024×768AMOLED Display
25mm, F1.0Focal length
500g lightweight Well-balanced
The NOVA Series features a compact, streamlined body weighing just over 500 grams, allowing for effortless portability and simple mounting. This thoughtfully crafted design ensures optimal balance of the gear, supporting steady and accurate aiming.

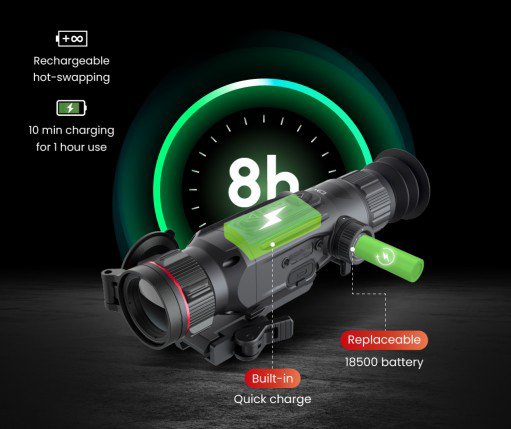

Quick charging All-day power
The NOVA Series runs for 8 hours on a single standard 18500 replaceable battery. With support for 20W fast charging and hot-swap capability, you can keep working in the field without interruption.
Hyper-light algorithm Vivid imaging
Paired with the advanced Hyper-Light algorithm, a 12μm sensor, and a lag-free AMOLED screen, the NOVA Series captures even the smallest temperature variations and boosts contrast, delivering visuals that are sharper and richer in detail.
Ballistic calculator On-target precision
The TargetIR Ballistics App enables users to carry out highly accurate shooting by combining an expansive, frequently refreshed library of standard calibers and branded ammunition with sophisticated ballistics models for precise trajectory prediction.
Smart recording Capture the moment
The NOVA Series, upon detecting recoil, automatically records a 15-second video with audio and takes five still images. It also features continuous trigger capability and auto-playback functionality.
Intelligent functions Prolonged service life
The NOVA Series is equipped with smart features including anti-burn-in technology, pixel fault correction, and an intelligent sleep mode, helping users maintain optimal device performance throughout everyday use.
Robust performance Built to endure
Engineered for both resilience and comfort, the enclosure boasts a metallic finish and a satisfying tactile grip. With an IP67 rating and the ability to withstand recoil forces of up to 6000J, it guarantees dependable operation and extended longevity.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm; | |||
| Resolution | 400×300@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm F1.0 | |||
| Field of view | 11.0°×8.2° | |||
| FOV m@100m | 19×14 | |||
| Magnification | 2.3x~9.2x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024×768 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32 GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Customized Battery(Built-in) and 18500 Battery(External) | |||
| Operating time | 7.5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 556/19.61 | |||
| Size (mm/in) | 245×73×57.5 / 9.65×2.87×2.26 | |||
| Standard | Device, lens cover, eye mask, 18500 battery ×2, battery charger, USB-C to USB-C cable, quick-release scope mount, quick start guide, warranty card | |||
| Optional | Bluetooth laser rangefinder, wired laser rangefinder | |||
