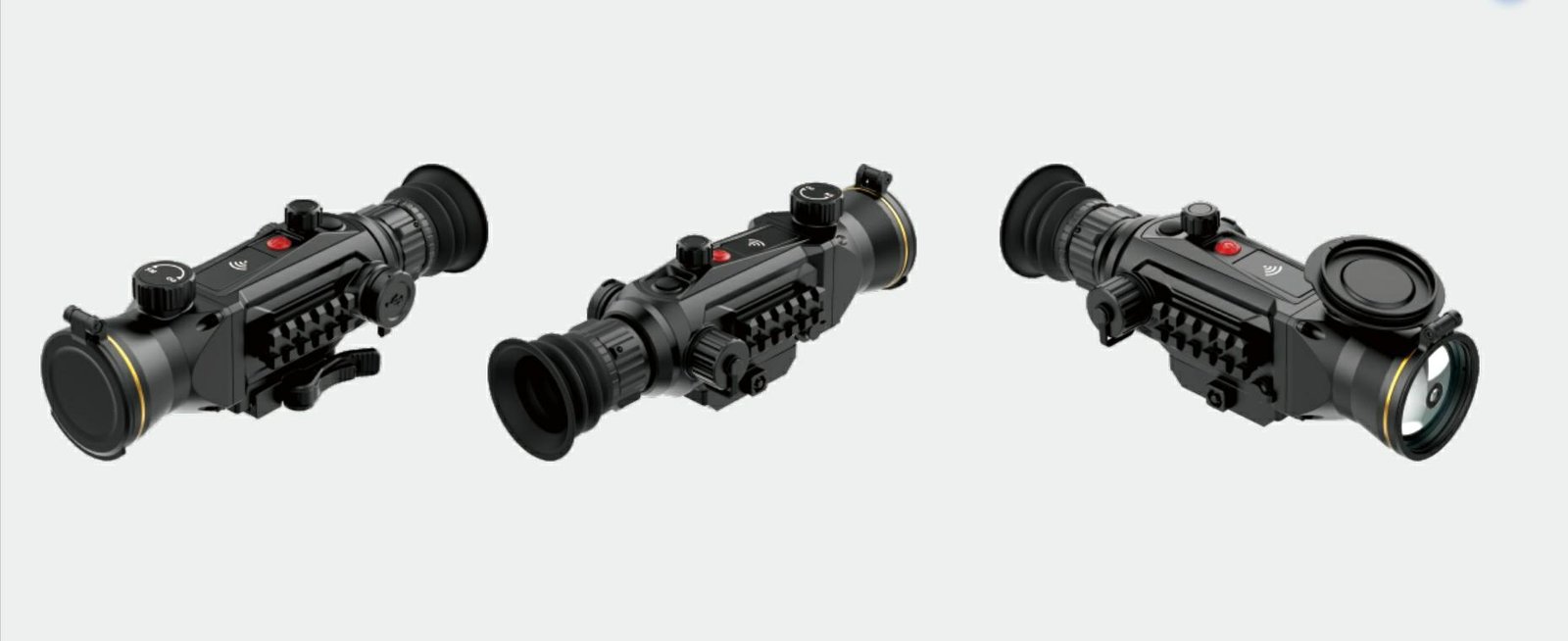

China Moneypro MMPS645 Dual-Band Co-Path Thermal Sight

Key Features

• Redesigned for seamless fusion of infrared and visible light imaging.
• Features a 12μm, 640×512 @ 50Hz IR core alongside a 2MP full-HD visible sensor.
• Human target detection and recognition reach out to 700 meters.
• Engineered for round-the-clock operation with hot-swappable power: external 18650 plus dual internal 18500 cells.
• Magnesium alloy housing rated IP67, built to endure harsh environments.
• Survives 1200g / 0.3ms mechanical shocks—reliable in extreme cold, high heat, high altitude, rainforest, or jungle conditions.
• Simple single-scrollwheel control enables rapid, intuitive use.
• Includes directional indicators, photo and video recording—stores up to 10,000 images or 12 hours of footage.
• Wi-Fi connectivity supports live image streaming and remote device control.
• Smart reticle tuning improves first-shot hit probability.
• Offers multiple reticle styles, including multi-range and mil-dot variants.
• Compatible with a wide range of weapon platforms for maximum mission adaptability.
• Modular construction allows fast field deployment and easy future upgrades.

Technical Parameters

Imaging Parameters

• IR Detector: 640 512 / 12 m
• Visible Light Sensor: 2MP
• Frame Rate: 50Hz
• OLED: 1024 768

Power Supply

• Battery: External 1 18650 / Internal 2 18500
• Operating Time:  12h

Physical Characteristics

• Weight:  800g
• Dimensions:  255mm 95mm 95mm

Environmental Requirements

• Protection: IP67
• Operating Temperature: -40 C ~ +55 C
• Reliability: 1200g / 0.3ms

Optical Parameters

• IR Focal Length: 45mm F0.9
• IR FOV: 7 7.8
• Visible Focal Length: 36mm F6
• Visible FOV: 9 4.7
• Diopter Adjustment: -4D ~ +2D
• Exit Pupil Distance:  35mm

Functional Parameters

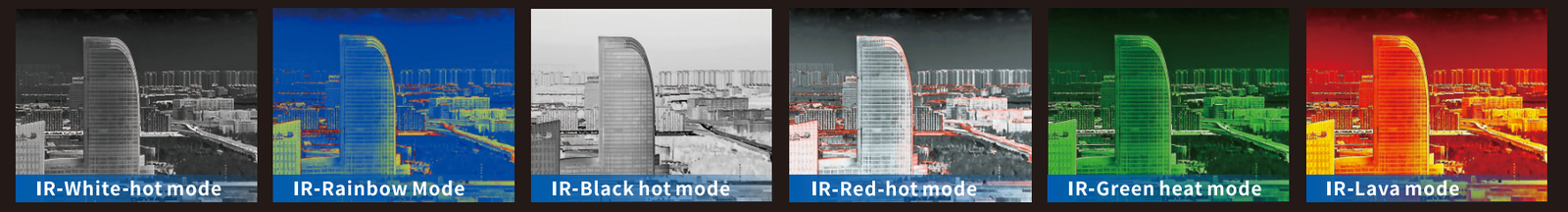

• Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
• Digital Zoom: 1C4x
• Digital Compass: Azimuth, Pitch, Roll angle
• Intelligent Target Recognition: Personnel, Vehicles, Drones
• Reticle: Multiple range & mil-dot reticles
• Custom Reticle: Yes (offline upgrades)
• Defogging: Yes
• Picture-in-Picture: Yes
• Probabilistic Ranging: Yes
• One-Click Zeroing: Yes
• Ballistic Calculation: Yes
• WiFi: Yes

Laser Module (Optional)

• Wavelength: 905nm
• Range: 50C2000m
• Accuracy:  2m

Effective Range

• Visible Light
  • Recognition: Personnel 0.8km | Vehicle 1.6km
  • Detection: Personnel 2km | Vehicle 4km
• Infrared (IR)
  • Recognition: Personnel 0.75km | Vehicle 1.5km
  • Detection: Personnel 1.8km | Vehicle 3.75km

FAQ

Q1: What sets the China Moneypro MPS645 apart from other dual-band thermal sights?
A1: The MPS645 features a proprietary dual-band co-path optical design, which keeps infrared and visible channels perfectly aligned. This eliminates the parallax errors often seen in dual-sensor units, delivering superior accuracy for 24/7 operations.

Q2: Can the China Moneypro MPS645 perform reliably in extreme environments like deserts or jungles?
A2: Absolutely. Built with an IP67-rated magnesium alloy body and tested to withstand 1200g shock loads, the MPS645 operates flawlessly in harsh conditions—from -40°C freezing zones to hot plateaus, arid deserts, and humid rainforests.

Q3: How does its intelligent target recognition enhance combat effectiveness?
A3: Using AI-driven algorithms, the system automatically detects personnel, vehicles, and drones. This reduces the user’s cognitive load and increases first-hit probability by dynamically adjusting the reticle in real time.

Q4: What is the maximum vehicle detection range in infrared mode?
A4: The MPS645’s thermal sensor can detect vehicles up to 3.75 km away, providing long-range situational awareness for surveillance and tactical missions.

Q5: Does the China Moneypro MPS645 allow modular upgrades for future battlefields?
A5: Yes. Its modular architecture supports offline reticle updates, optional laser modules, and Wi-Fi connectivity—ensuring the system evolves with new threats and protects your long-term investment.
