MN225 Thermal Imaging Scope
China Moneypro
The Nova Series thermal imaging scope is tailored for hunters seeking high performance and portability. Featuring Guide’s latest AI-powered Hyper Light algorithm, it delivers razor-sharp clarity for every detail in the dark. The compact magnesium alloy housing makes it lightweight yet durable. Equipped with standard replaceable 18500 batteries and ballistic calculation algorithm, it ensures you a successful hunting experience.
256×192@12μmIR Resolution
25mKNETD
0.39” 1024×768AMOLED Display
25mm, F1.0Focal length
500g lightweight Well-balanced

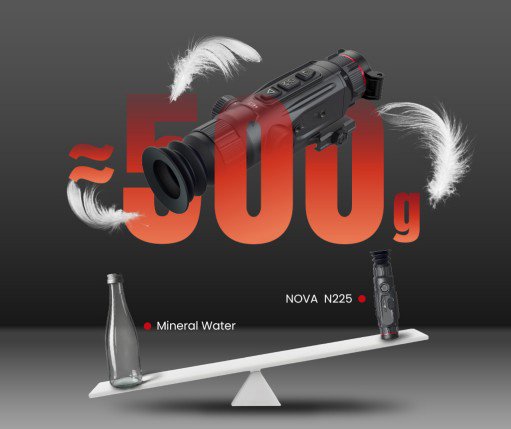

Weighing just over 500 grams, the NOVA Series features a compact and slim profile that is effortless to transport and install. Its thoughtfully engineered shape helps maintain equipment balance, supporting a stable and accurate aim.
Quick charging All-day power

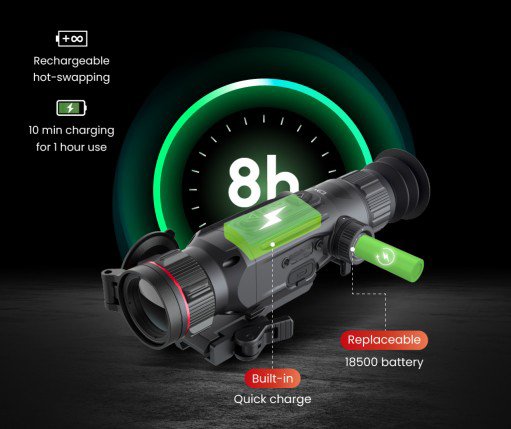

The NOVA Series delivers 8 hours of runtime on a single replaceable 18500 battery. It also features 20W fast charging and hot-swap support, ensuring non-stop operation in the field.
Hyper-light algorithm Vivid imaging
Paired with the advanced Hyper-Light algorithm, a 12μm sensor, and a lag-free AMOLED screen, the NOVA Series captures even the smallest temperature variations while boosting contrast to deliver clearer, more defined imagery.
Ballistic calculator On-target precision
TargetIR Ballistics App enables users to achieve exceptional shooting accuracy by combining a comprehensive, frequently updated database of popular calibers and brands with sophisticated ballistics algorithms that deliver precise trajectory calculations.
Smart recording Capture the moment
The NOVA Series, upon detecting recoil, autonomously records a 15-second video clip (including audio) and captures five still images. In addition, it supports continuous trigger functionality and features automatic playback.
Intelligent functions Prolonged service life
The NOVA Series is equipped with smart features including anti-burn-in protection, faulty pixel correction, and an intelligent sleep mode, helping users maintain optimal device performance in everyday use.
Robust performance Built to endure
Engineered for both resilience and comfort, the housing boasts a metallic finish and a satisfying grip. With an IP67 rating and the ability to withstand recoil impacts of up to 6000J, it delivers dependable operation and extended longevity.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm; | |||
| Resolution | 256×192@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm F1.0 | |||
| Field of view | 7.0°×5.3° | |||
| FOV m@100m | 12×9 | |||
| Magnification | 3.6x~14.4x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024×768 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32 GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Customized Battery(Built-in) and 18500 Battery(External) | |||
| Operating time | 8 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 506/17.85 | |||
| Size (mm/in) | 222.5×73×57.5 / 8.76×2.87×2.26 | |||
| Standard | Device, lens cover, eye mask, 18500 battery ×2, battery charger, USB-C to USB-C cable, quick-release scope mount, quick start guide, warranty card | |||
| Optional | Bluetooth laser rangefinder, wired laser rangefinder | |||
