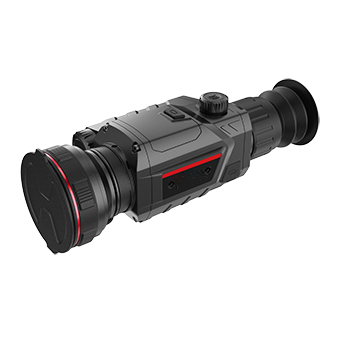

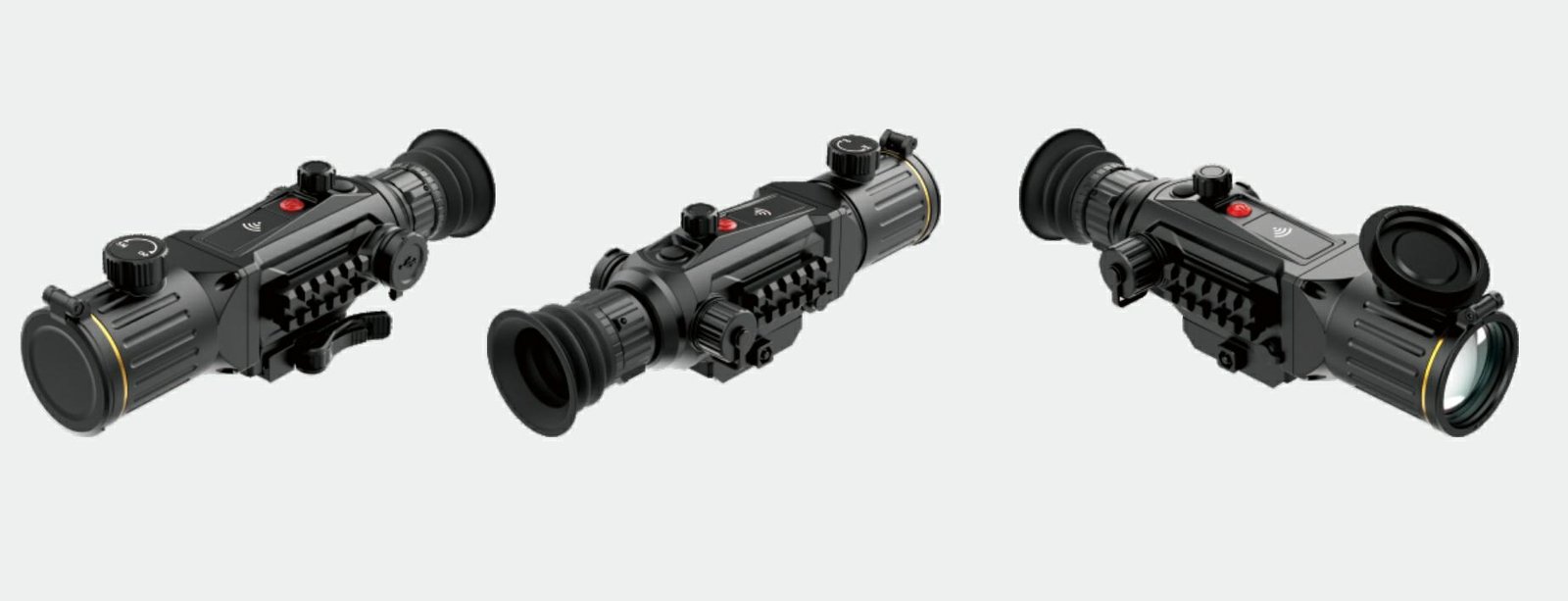

China Moneypro MMPS650 Lightweight Dual-FOV Multi-Purpose Thermal Sight

Key Features

• Dual FOV Switching enables fast toggling between wide-angle and telephoto views.
• Powered by a 3rd-gen 12μm / 640×512 (50Hz) infrared detector for crisp, high-definition imaging.
• Can detect and recognize a single person up to 800 meters away.
• Runs around the clock with hot-swappable batteries for uninterrupted use.
• Built with a rugged magnesium alloy body, rated IP67 to withstand harsh conditions.
• Survives 1200g/0.3ms shocks—ideal for jungles, plateaus, deserts, and freezing climates.
• Simple single-scrollwheel control for smooth, intuitive operation.
• Features directional guidance and supports photo/video recording (stores 10,000 images or 12 hours of video).
• Wi-Fi connectivity for real-time image sharing and remote command.
• Smart reticle adjustment improves first-shot hit probability.
• Compatible with multi-range and mil-dot reticles for precision targeting.
• Easily mounts on various weapon platforms for tactical versatility.
• Automatic target recognition boosts combat effectiveness.
• Modular design allows rapid field deployment.

Technical Parameters

IR Parameters

• Resolution: 640 512
• Pixel Pitch: 12 m
• Frame Rate: 50Hz
• OLED Display: 1024 768

Power Supply

• Battery: External 1 18650 / Internal 2 18500
• Operating Time: 12 hours

Physical Characteristics

• Weight: 860g
• Dimensions: 275mm 95mm 95mm

Environmental Requirements

• Protection: IP67
• Operating Temperature: -40 ~ +55
• Reliability: 1200g/0.3ms

Interface

• Electrical: Type-C / RS232 / PAL
• Mechanical: Standard Picatinny Rail

Laser Module (Optional)

• Wavelength: 905nm
• Measurement Range: 50C2000m
• Accuracy: 2m

Optical Parameters

• Focal Length (WFOV): 25mm
• WFOV: 17.5 14.3
• Focal Length (NFOV): 50mm
• NFOV: 8.8 7.2
• Diopter Adjustment: -4D ~ +2D
• Exit Pupil Distance: 35mm

Functional Parameters

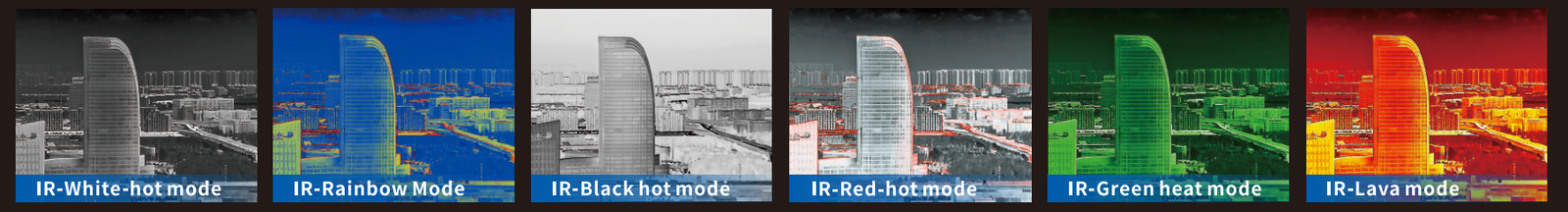

• Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
• Digital Zoom: 1C4
• Digital Compass: Azimuth, Pitch, Roll angle
• Memory: 128GB
• Intelligent Target Recognition: Personnel, Vehicles, Drones
• Reticle: Multi-range and Mil-dot Reticles
• Custom Reticle: Supports offline customization and upgrade
• Picture-in-Picture: Yes
• Probabilistic Ranging: Yes
• One-Click Zeroing: Yes
• Ballistic Calculation: Yes
• Wi-Fi: Yes

Effective Range

• IR Recognition: Personnel 0.8 km | Vehicle 1.6 km
• IR Detection: Personnel 2 km | Vehicle 4 km

FAQ:

1. How does the dual-FOV system improve tactical performance?
   The dual-FOV setup enhances combat effectiveness by enabling instant toggling between broad-area awareness and focused targeting, delivering optimal adaptability for both short-range engagements and distant threats.
2. What makes the China Moneypro MPS650 suitable for extreme environments?
   Built with an IP67-rated magnesium alloy housing and engineered to endure 1200g/0.3ms mechanical shocks, the MPS650 offers dependable operation across harsh desert, jungle, high‑altitude, and freezing conditions.
3. Can the China Moneypro MPS650 support real-time data sharing?
   Absolutely. Its embedded Wi-Fi link facilitates live video relay and remote command reception, which is essential for synchronized team maneuvers and mission‑critical actions.
4. What is the effective detection and recognition range?
   The MPS650 identifies people at up to 800 meters and vehicles at 1.6 kilometers, while offering extended detection out to 2 km for human targets and 4 km for vehicles.
5. Is the reticle system customizable?
   Yes. The MPS650 accommodates multi‑distance and mil‑dot patterns, plus offline reticle personalization and firmware updates, ensuring it meets diverse mission-specific needs.
