China Moneypro
MTU431 LRF Thermal Imaging Scope
China Moneypro
With the laser rangefinder seamlessly integrated into a slim-design scope, the TU Gen2 LRF Series enables precise detection of targets at distances of up to 1,500 meters, empowering hunters with a reliable perception of distance at the hunting site to make accurate shots. The product has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.
400x300IR Resolution
1440×10800.49″ AMOLED Display
1500mLaser Ranging
OTA Upgradefor the latest firmware
Ballistic Calculation

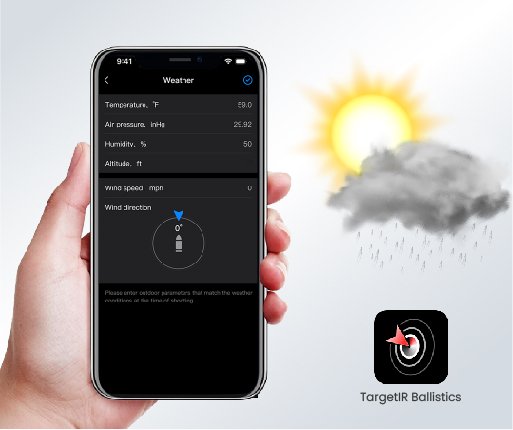

Connect your device to the TargetIR Ballistics App (available on Android and iOS) to configure bullet characteristics and weather settings. Once the data is sent to your device for ballistic computation, you can achieve highly accurate shooting with ease.
High Definition Thermal Sensor, NETD Optimized to 25mK
Rewritten version:
A high-performance thermal imaging sensor, available in 400×300@12μm or 640×512@12μm resolution, delivers sharp, well-defined images. This clarity enables better identification of animals and their body parts, as well as fine details like branches, leaves, grass, and terrain features.
0.49-inch 1440×1080 AMOLED Display
The upgraded 0.49-inch AMOLED screen reveals finer image details to support decision-making. Thermal signatures can be viewed on the display via picture-in-picture (PIP) mode, which greatly improves viewing comfort.

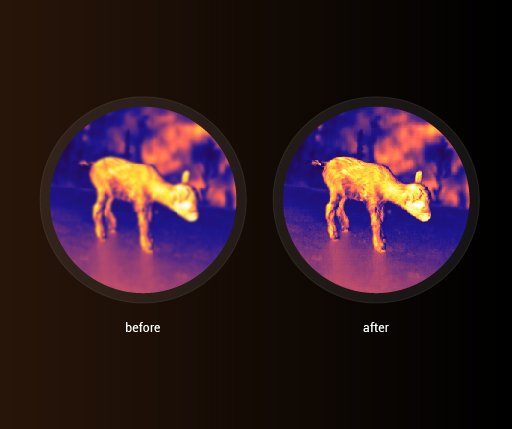

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)
The PureIR technology integrates 3DNR with adaptive PureIR filtering to produce highly sensitive thermal imagery. This synergy minimizes image distortion and enhances fine details, even when capturing targets located far away.
Fast Detection 1500m LRF
The recently enhanced compact laser ranging module delivers fast, precise detection, enabling you to spot targets up to 1500 meters away during nighttime hunts and significantly boost your hunting effectiveness.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.8°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 3.3x~13.2x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.49” AMOLED 1440×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C; Micro HDMI | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 128GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single 18650 battery (built-in) and customized battery (external) | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 1151/40.60 | |||
| Size (mm/in) | 368×106×99/14.49×4.17×3.90 | |||
| Standard | Device, Lens cover, Eye mask, 5V2A adapter (US, Britain, Australia and Europe), Customized battery×2, Customized battery charger, USB Type-C cable, Micro HDMI cable, Clip×2, Quick start guide, Warranty card | |||
| Optional | Bluetooth remote control, Customized battery | |||
