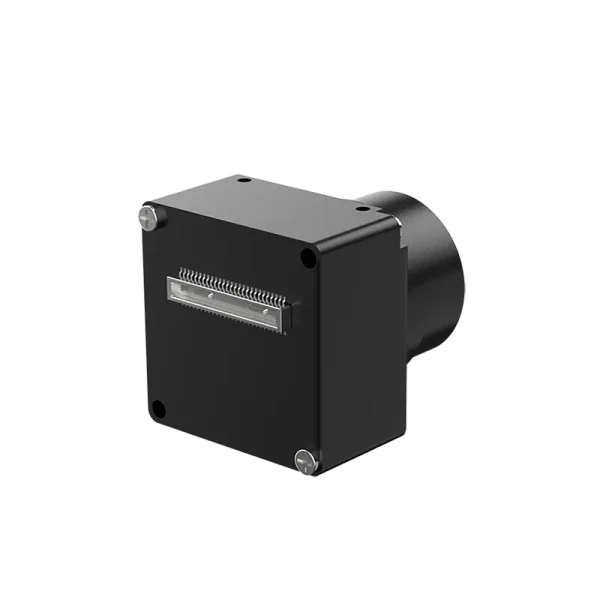

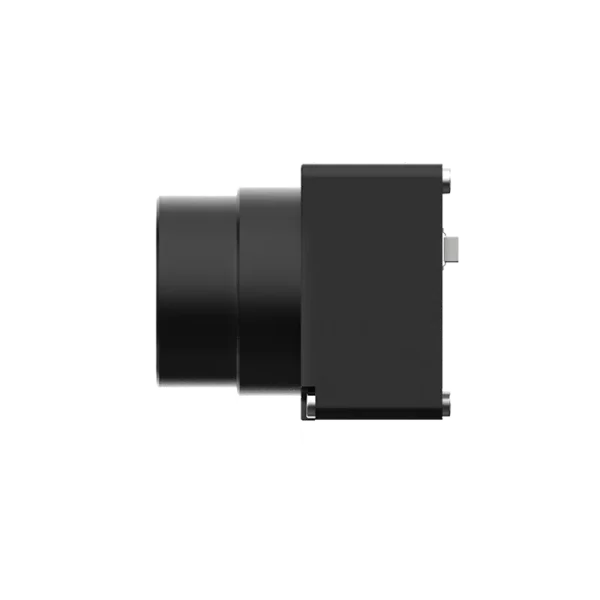

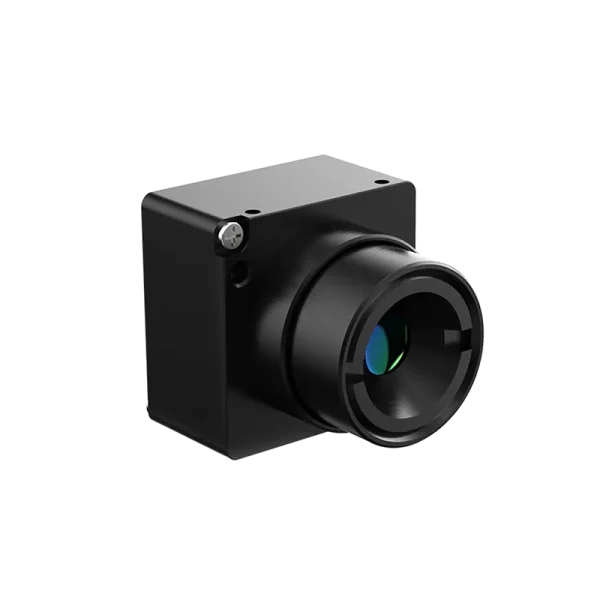

Turing ML384 Uncooled Infrared Module (Imaging)

China Moneypro

Turing ML384 uncooled infrared module has made further technical breakthroughs, redefining the new standard of weight, dimensions, and power consumption (SWaP3) in the infrared OEM module industry. It meets professional needs in the fields of routine inspection, security, search and rescue, and industrial monitoring and provides excellent miniaturized high-resolution solutions for consumer products.

Feature

SWaP³ Design

With a resolution of 384 × 288, compact dimensions of 18 mm × 18 mm, and a lightweight design of just 3.5 g, this solution offers a low-cost option.

Excellent Performance

It utilizes a shutterless correction algorithm to ensure a seamless and uninterrupted user experience.

Multiple Selections

Its field of view spans from 10 to 90 degrees, and it is compatible with various interfaces including MIPI, USB, BT.656, and analog video.
Equipped with advanced programmable components, its adaptable design supports diverse functionalities and a high degree of customization.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	384 × 288
	Detector Frame Rate	50 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK @ 25°C (≤40 mK optional)
Image Adjustment	Brightness/Contrast Adjustment	Manual / Auto
	Polarity	Black-hot / White-hot
	Palette	Supports multiple types
	Reticle	Display / Blank / Move
	Image Processing	Scene-based non-uniformity correction / Digital filtering noise reduction / Digital detail enhancement / Shutterless
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	3.8 V DC / 1.8 V / 3.3 V
	Typical Power Consumption @25°C (without extension)	≤0.35 W
Interface	Digital Video	BT.656 / BT.1120 / LVCMOS
	Serial Communication Interface	UART
	Extension Components	USB 2.0 / Analog video
Temperature Measurement Performance	Measurement Range	-20°C ~ +550°C (up to +650°C customizable)
	Measurement Accuracy	±3°C or ±3% of reading (whichever is greater) @ Ambient temperature -20°C ~ +60°C ±2°C (optional)
	Measurement Tool	Secondary analysis of points, lines, and areas
Physical Characteristics	Dimensions (without lens and extension)	18 × 18 mm
	Weight (3.2 mm, without extension)	3.5 g
	Lens Model	2.88 mm, 5.3 mm, 10.4 mm, 19 mm, expandable to 45 mm
Environment Adaptability	Operating Temperature	-40°C ~ +80°C (-20°C ~ +60°C for measurement series)
	Storage Temperature	-45°C ~ +85°C
	Humidity	5~95%, non-condensing
Product Certification	Certification	RoHS
