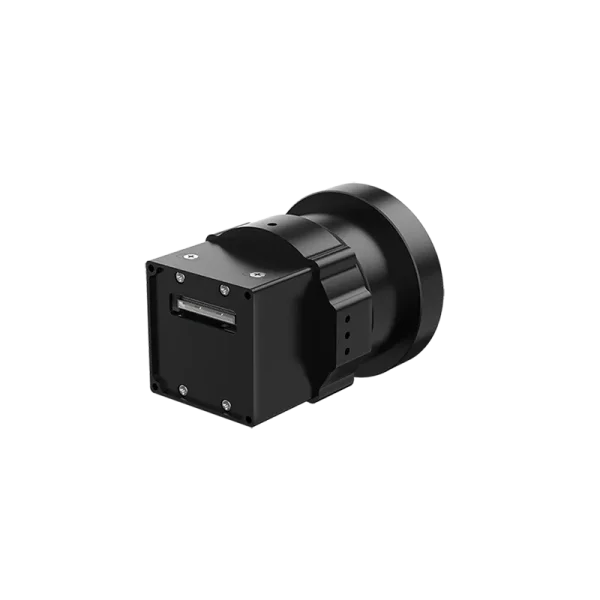

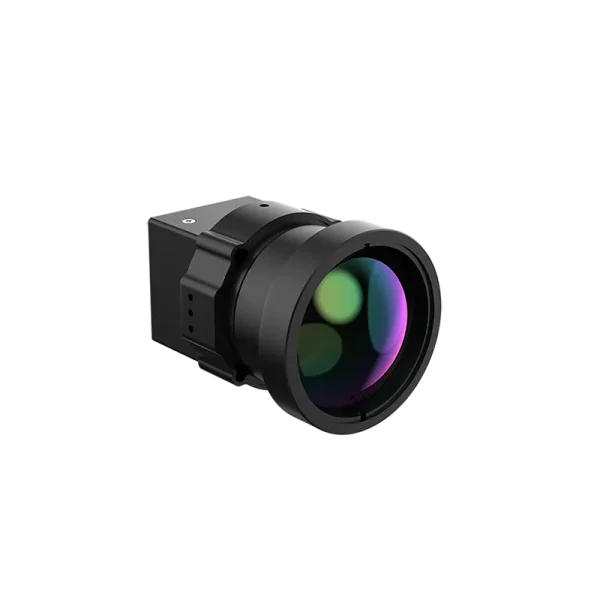

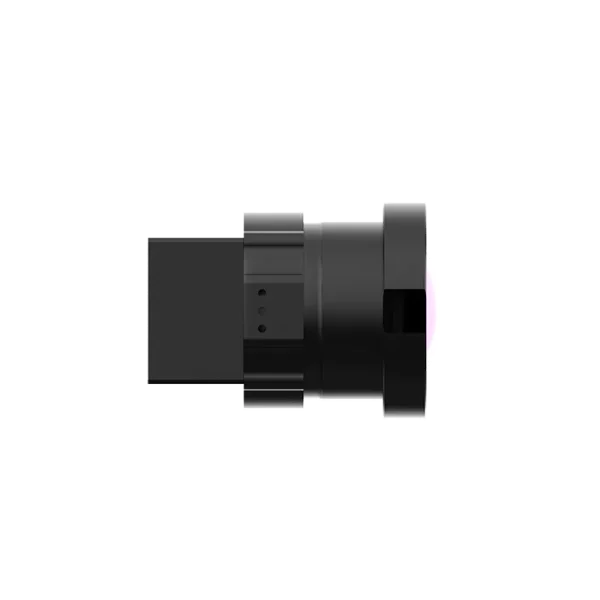

Turing ML1280 Uncooled Infrared Module (Temperature Measurement)

China Moneypro

The Turing ML1280 uncooled infrared module is a new generation of module components designed for expert users. The use of self-developed detectors has taken an important step forward in miniaturization and lightweighting, making us take a lead. With the advantage of large array imaging of 1280, the size is only 29mm 29mm, and the weight is only 24.5g. With a professional development team, it is the best choice for meeting the lightweight development needs.

Feature

Industry Solutions of Minimum 1,280

Equipped with a domestically developed 12 μm VOx uncooled infrared detector. It delivers a resolution of 1280 × 1024, measures 29 mm × 29 mm, and weighs just 24.5 g.

Excellent Performance

The combination of multi-megapixel resolution and advanced imaging algorithms brings fine details into sharp focus.
The layout allows users to easily locate their targets and track detailed information.

Rich Selection

With optional lenses, it can easily adjust to a variety of situations.
We offer personalized assistance to help users find the perfect lens for their needs—quick, easy, and hassle-free.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	1280 × 1024
	Detector Frame Rate	30 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK @ 25°C, F#1.0
Image Adjustment	Brightness/Contrast Adjustment	Manual / Automatic / Linear
	Polarity	Black-hot / White-hot
	Palette	Supported
	Image Processing	TEC-less temperature control algorithm, digital filtering noise reduction, digital detail enhancement
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	4.0~5.5 V DC (4.1~5.5 V DC supported by user extension components)
	Typical Power Consumption @25°C (without extension)	1 W
Interface	Digital Video	14-bit or 8-bit LVCMOS / MIPI / CDS2
	Extension Components	USB 3.0
	Control Interface	UART (3.3 V)
Temperature Measurement Performance	Measurement Range	-20°C ~ +150°C, +100°C ~ +650°C
	Measurement Accuracy	±2°C or ±2% of reading (greater value prevails) @ ambient temperature 15°C ~ 35°C
	Measurement Tool	Secondary analysis of points, lines, and areas
Physical Characteristics	Dimensions (without lens and extension components)	29 × 29 × 18.9 mm
	Weight (3.2 mm, without extension components)	24.5 g
	Lens Model	10 mm, 35 mm, 50 mm
Environment Adaptability	Operating Temperature	-20°C ~ +60°C (measurement range)
	Storage Temperature	-45°C ~ +85°C
	Humidity	5~95%, non-condensing
Product Certification	Certification	RoHS 2.0
