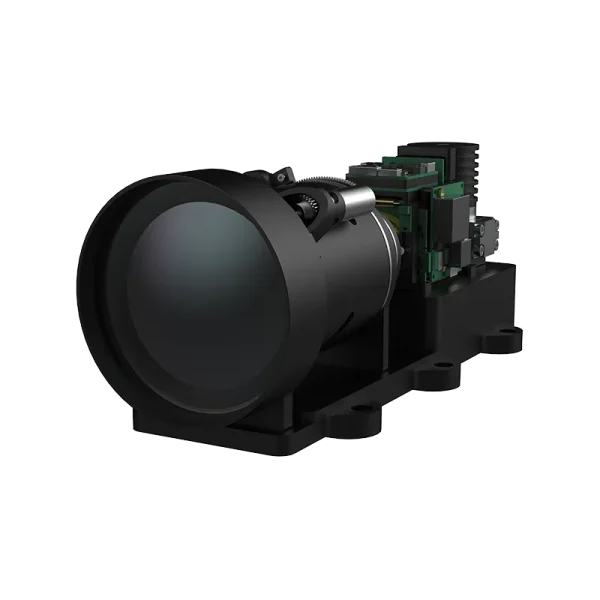

Photon MM615S Medium-Wave Cooled Infrared Module

China Moneypro

The Photon MM615 medium-wave cooled infrared module is provided with the high-performance HgCdTe cooled infrared FPA detector, and carried with the self-developed image processing algorithm.
It reaches the frame rate of up to 100Hz, and has the NETD as low as 15mK.
It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.

Feature

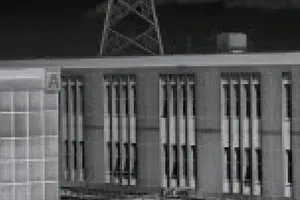

1. Delicate Images with High Sensitivity

The NETD is minimized to just 15mK, which satisfies the demands for detecting small targets over long distances.

2. Self-Developed Algorithm for Intelligent Imaging

Equipped with a newly developed proprietary imaging algorithm, it enables a broad dynamic range and adaptive integration timing, delivering optimal image quality tailored to various scenarios.

3. Higher Frame Rate for Timely Capture

The resolution can reach up to 640 × 512, with a maximum frame rate of 100 Hz, making it suitable for capturing large-scale dynamic targets.

With a selection of interchangeable lenses, it can easily adjust to a wide range of situations.
We provide personalized assistance to help users select the ideal lens quickly and easily.

Specification

Performance Indicators
Detector Type	HgCdTe cooled infrared detector
Resolution	640 512
Frame Rate	100 Hz/50 Hz/30 Hz
F#	F2.0/F4.0
Pixel Pitch	15 m
Spectral Band	3.7 0.2 m 4.8 0.2 m
NETD	15mK@25
Detector Defective Pixel Rate	0.5%
Cooling Time@25 C	7min
Image Adjustment
Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot (white-hot by default)
Reticle	Display/Blank/Move
Digital Zoom	1.0~8.0 continuous zoom (step size:0.1)
Image Processing	Non-uniformity correction, digital filter noise reduction, digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal
Power Supply
Power Supply Range	27~36V DC (with isolation), typical voltage of 28V DC
Power Consumption (Typical, @25 C)	Steady status 16W, peak 35W
Interface
Analog Video	PAL
Digital Video	Cameralink/SDI
Serial Communication Interface	RS422(default baud rate: 115200)
Physical Characteristics
Dimensions (Without lens)	870g (with isolation)
Weight (Without lens)	144 75 81mm ( 1) (with isolation)
Environment Adaptability
Operating Temperature	-40+60
Storage Temperature	-45+65
Temperature Shock	-45 ~+65棨 5 /min
Random Vibration	4.2g
Shock	Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)
MTTF	8000h
Storage Life	10 years
