Turing ML640 Uncooled Infrared Module (Temperature Measurement)

China Moneypro

The Turing ML640 uncooled infrared module is specifically designed for applications where dimensions and power consumption are critical concerns.
Featuring extreme compactness, lighter weight and lower power consumption, it supports multiple parallel communication and video output interfaces, and provides various lightweight infrared lenses.
This series of imaging-type products can provide comprehensive infrared imaging solutions for a variety of photoelectric products including small handheld telescopes, helmet night vision devices, light-type unmanned aircraft systems, and driving assistance devices.

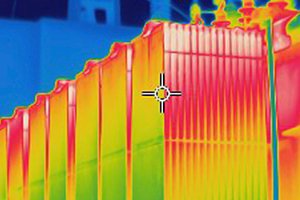

Products for temperature measurement can be applied in many fields like industrial and electrical temperature measurement, security measurement, and machine vision.

Feature

SWaP³ Design

Its dimensions are 21 mm × 21 mm, with a resolution of 640 × 512, a weight of just 8 grams, and full compliance with lightweight infrared application requirements.

Excellent Performance

This advanced imaging technology leverages superior algorithms to capture clear details even in smoky or low-light conditions.
With an operational temperature window of -20 to 650, this instrument delivers both speed and precision in its temperature evaluation logic, ensuring correct measurements instantly at startup.

Multiple Selections

The field of view spans from 10 to 130 degrees.
This system is compatible with a variety of interfaces, including MIPI, USB, BT.656, and analog video inputs.
Equipped with advanced programmable components, its adaptable design supports diverse capabilities and a high degree of tailored configuration.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	640 × 512
	Detector Frame Rate	25 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK @ 25°C (≤40 mK optional)
Image Adjustment	Brightness/Contrast Adjustment	Manual / Automatic / Linear
	Polarity	Black-hot / White-hot
	Palette	Support
	Reticle	Display / Blank / Move
	Image Processing	TEC-less temperature control algorithm / Digital filtering noise reduction / Digital detail enhancement / Histogram stretching
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	3.8~5.2 V DC / 1.8 V / 3.3 V
	Typical Power Consumption @25°C (without extension)	0.35 W (Typical)
Interface	Digital Video	CDS2 / CDS3 / LVCMOS / MIPI
	Serial Communication Interface	UART / I2C (optional)
	Extension Components	USB 2.0 / Analog video
Temperature Measurement Performance	Measurement Range	-20°C ~ +150°C, 0°C ~ +650°C
	Measurement Accuracy	±3°C or ±3% at ambient temperature -20°C ~ +60°C (±2°C optional)
	Measurement Tool	Secondary analysis of points, lines, and areas
Physical Characteristics	Dimensions (without lens and extension)	21 × 21 mm
	Weight (3.2 mm, without extension)	8 g
	Lens Model	4.1 mm, 6.9 mm, 9.1 mm, 13 mm, 25 mm, 45 mm
Environment Adaptability	Operating Temperature	-40°C ~ +80°C (-20°C ~ +60°C for measurement series)
	Storage Temperature	-45°C ~ +85°C
	Humidity	5~95%, non-condensing
Product Certification	Certification	RoHS
