Turing MF1024 Uncooled Infrared Module

China Moneypro

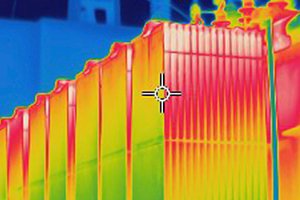

The Turing MF1024 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, water area monitoring, and industrial temperature measurement.

Feature

Powerful Detector Performance

The built-in high-sensitivity VOx infrared detector delivers a consistently powerful core, advanced imaging algorithms, and precision lens control technology, enabling an entirely new level of performance for long-range monitoring.
The product is suitable for a broad range of use cases, including border protection, elevated lookout points, wildfire detection in woodlands, water surface surveillance, and industrial thermal inspection.

Upgraded Image Algorithm

After the module upgrade, the image algorithm has been enhanced to a next-generation version with targeted refinements for challenging environments—including forests, sea, sky, rain, and fog. This delivers crisp, high-definition infrared images tailored to customer needs.

Providing Optimized Lens

It is compatible with athermalized prime lenses, motorized prime focusing lenses, and continuous zoom lenses.
It supports electric focusing, seamless zooming, auto-focus, and defocus compensation features.

Multiple Network Interfaces

It offers a choice of video output interfaces, including BT.601, BT.1120, and others.
The system supports scalable SDI, USB, Camera Link, and HDMI connections.
It offers an SDK that is straightforward and user-friendly, helping to accelerate the development cycle, boost efficiency, and lower the costs associated with secondary development.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	1024 × 768
	Detector Frame Rate	30 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK at 25℃, F#1.0
Image Adjustment	Palette	Support (20 types)
	Digital Zoom	1.0~4.0× continuous zoom (step size: 0.1)
	Brightness/Contrast Adjustment	Manual/Auto 0/Auto 1
	Image Processing	Non-uniformity correction / Digital filter noise reduction / Digital detail enhancement
	Mirroring	Horizontal / Vertical / Diagonal
Network Function	Network Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, etc.
	Platform Access	ONVIF, GB28181, SDK
	Simultaneous Previewed Videos	Up to 20 channels
	User Management	Up to 20 users, 3 levels: administrator, operator, user
	Browser	Support IE8+ and multiple languages
Intelligent Functions	Fire Point Detection	Supported
	Intelligent Video	Supported
	Intelligent Alarm	Abnormality detection for network cable failure, IP conflict, full memory, memory error, illegal access, and linkage alarm
	Intelligent Detection	Tripwire and regional intrusion detection, and other intelligent video analysis functions
	Alarm Linkage	Video recording / Image capture / Email / Linked PTZ / Alarm output
Lens	Lens Type	Athermalized / Motorized fixed-focus / Continuous zoom
	Focus Mode	Manual / Automatic
	Electric Focusing	Supported
	Electric Zooming	Supported
Digital	Power Supply Range	5-24V DC (Recommended: 12V DC)
	Typical Power Consumption @25°C	<2.4 W
	Digital Video	LVCMOS / LVDS / BT.1120 / SDI
	Communication Interface	RS-232 / RS-485
	Weight	102.7 g (without lens)
	Size	45 × 45 mm
Network Type	Power Supply Range	9-15V DC (Recommended: 12V DC)
	Typical Power Consumption @25°C	<3.0 W
	Communication Interface	One RJ45 10M/100M adaptive Ethernet port, one RS-485
	Alarm Interface	One input, one output
	Audio Interface	One input, one output
	Weight	180.9 g (without lens)
	Size	45 × 45 mm
Environment Adaptability	Operating Temperature	-40℃ ~ +60℃
	Storage Temperature	-45℃ ~ +85℃
	Humidity	5~95%, non-condensing
	Product Certification	RoHS2.0
