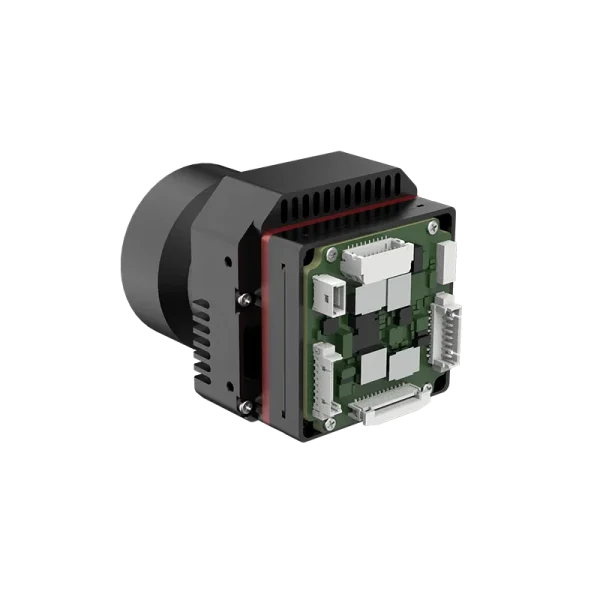

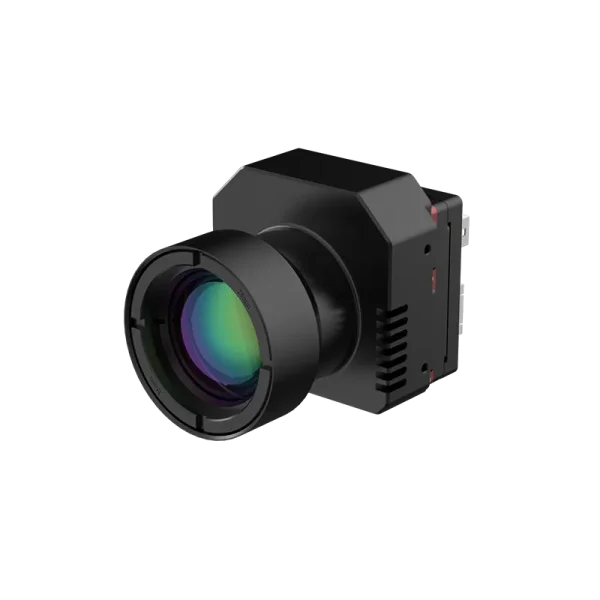

Turing MF640 Uncooled Infrared Module (Temperature Measurement)

China Moneypro

The Turing MF640 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and high-accuracy temperature measurement algorithms.

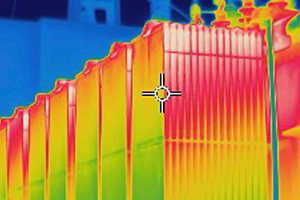

The products can be widely used in application scenarios such as security monitoring, industrial temperature measurement, forest fire prevention, and rail transportation.

Feature

All Scenario and All Application

All-scenario accurate temperature measurement across a FOV ranging from 15 to 100 .
It supports both digital and network applications for all scenarios.

Stable, Precise, and Accurate

The module upgrades the image algorithm to the new generation and optimizes the image for special scenarios such as forests, sea, sky, and rainy and foggy weather, providing customers with clear and sharp infrared images.
It can output a full array of temperature data to facilitate secondary temperature analysis.

Multiple Video Interfaces, Easy for Secondary Development

It provides various video output interface options including interfaces, BT.601, and BT.1121, with extensions for SDI, USB, Cameralink, and HDMI interfaces.
It provides multiple SDK, which are simple and easy to use, shortening the development cycle, improving efficiency, and reducing secondary development costs.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	640 × 512
	Detector Frame Rate	25 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤40 mK at 25℃, F#1.0
Image Adjustment	Palette	Support (20 types)
	Digital Zoom	1.0~8.0× continuous zoom (step size: 0.1)
	Image Processing	Non-uniformity correction / Brightness & contrast adjustment / Temporal filtering / Spatial filtering noise reduction / Digital detail enhancement / Style adjustment
	Mirroring	Horizontal / Vertical / Diagonal
Network Function	Network Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS, etc.
	Platform Access	Support Modbus TCP, MQTT protocols, ONVIF, GB28181, SDK
	Simultaneous Previewed Videos	Up to 8 channels
	User Management	Up to 20 users, 3 levels: administrator, operator, user
	Browser	Google Chrome, Firefox, Edge, etc.
Intelligent Functions	Intelligent Video	Supported
	Intelligent Alarm	Supports abnormality detection and linkage alarm for network cable disconnection, IP conflict, memory error, illegal access
	Intelligent Detection	Supports regional intrusion, tripwire intrusion, passenger and vehicle recognition
	Alarm Linkage	Video recording / Image capture (thermal image supported) / Email / Linked PTZ / Alarm output
Lens	Lens Type	Athermalized / Prime electric focus
	Focus Mode	Manual / Automatic
	Electric Focusing	Supported
	Electric Zooming	Not supported
Digital	Power Supply Range	5-24V DC (Recommended: 12V DC)
	Typical Power Consumption @25°C	<1.5 W
	Digital Video	LVCMOS / BT.601 / BT.1120
	Communication Interface	RS-232 / UART
Network Type	Power Supply Range	12V DC ±10%
	Typical Power Consumption @25°C	<2.4 W (typical, @25°C)
	Communication Interface	One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART
	Alarm Interface	1-channel input, 1-channel output
	Audio Interface	1-channel input, 1-channel output
Interface	Analog Video	1-channel PAL system
Environment Adaptability	Operating Temperature	-40℃ ~ +70℃
	Storage Temperature	-45℃ ~ +85℃
	Humidity	5~95%, non-condensing
	Product Certification	RoHS2.0
PTZ Function	Fire Warning	Supports fire point detection
Thermal Imaging	Measurement Range	-20℃ ~ +150℃, 0℃ ~ +650℃
	Measurement Accuracy	±2°C or 2% of reading (whichever is greater) @ ambient temperature -20°C ~ +60°C
