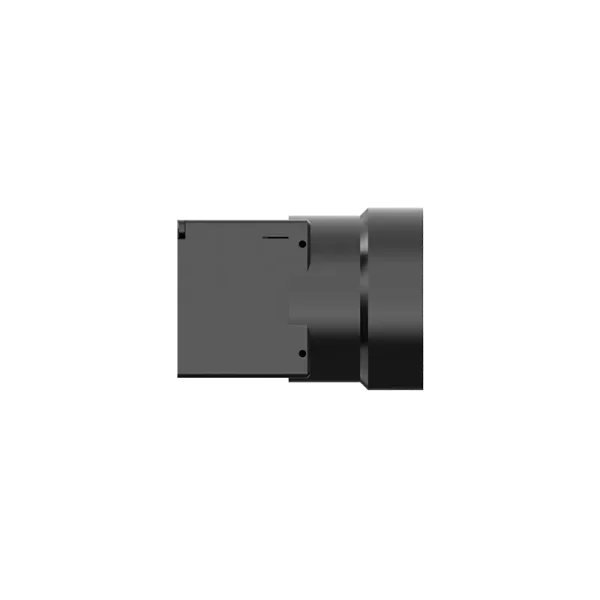

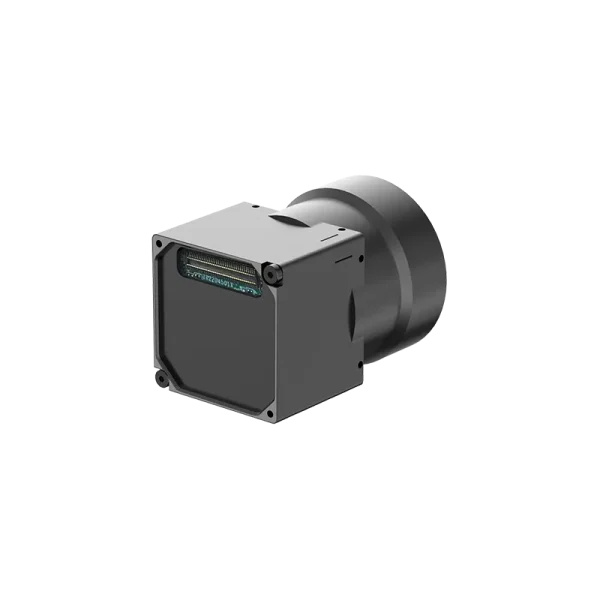

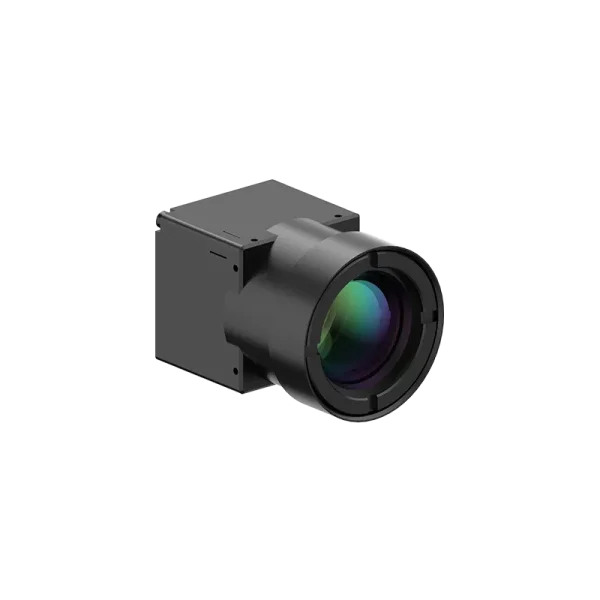

Turing MA640 Uncooled Infrared Module (Imaging)
China Moneypro
Turing MA640 uncooled infrared module is equipped with a 640 512 ceramic-packaged infrared detector. It can not only provide clear images but also be equipped with multiple serialized lenses and various kinds of user extension components for customers to select. Widely applied to fields of outdoor observation, integrated pods and driving assistance.
Feature
Multiple Selections
- Provide 10+ a thermalized lenses applicable to different distance apps.
Excellent Performance
- Support shutterless algorithm with a max frame rate of 50Hz to provide a smooth and continuous user experience.
Flexible Extension
- Provide multiple interface options such as USB, MIPI, DVP, LVDS, Camera Link and analog video, and optionally provide SDK to support secondary development.
Specification
| Category | Parameter | Specification |
|---|---|---|
| Performance Indicators | Detector Type | Uncooled VOx infrared detector |
| Resolution | 640 × 512 | |
| Frame Rate | 50 Hz | |
| Pixel Pitch | 12 μm | |
| Spectral Band | 8~14 μm | |
| NETD | ≤50 mK at 25°C (≤40 mK optional) | |
| Image Adjustment | Brightness/Contrast Adjustment | Manual / Automatic / Linear |
| Polarity | Black-hot / White-hot | |
| Palette | Support | |
| Reticle | Display / Blank / Move | |
| Digital Zoom | 1.0~4.0× continuous zoom (step size: 0.1) | |
| Image Processing | Scene-based non-uniformity correction / Digital filtering noise reduction / Digital detail enhancement / Shutterless | |
| Mirroring | Horizontal / Vertical / Diagonal | |
| Power Supply | Power Supply Range (typical) | 3.5~18 V DC (supported by user extension components), 4~5.5 V DC |
| Typical Power Consumption @25°C (without extension) | <0.6 W | |
| Power Protection | Overvoltage, undervoltage, and reverse connection supported by user extension components | |
| Interface | Digital Video | BT.656 / BT.1120 / 14-bit or 8-bit LVCMOS / LVDS |
| Analog Video | 1-channel PAL system | |
| Serial Communication Interface | UART (3.3 V) / RS-232 | |
| Extension Components | MIPI / USB / Camera Link / Analog video / BT.656 / LVDS | |
| Physical Characteristics | Dimensions (without lens and extension) | 26 × 26 × 19.2 mm |
| Weight (3.2 mm, without extension) | 20 ±3 g | |
| Environment Adaptability | Operating Temperature | -40°C ~ +80°C |
| Storage Temperature | -45°C ~ +85°C | |
| Humidity | 5~95%, non-condensing | |
| Vibration | 6.06 g, random vibration, all axes | |
| Impact | 80 g, 4 ms, final peak sawtooth wave, three axes, six directions |
Application Scenariosa
Outdoor Observation
Security Monitoring
UAV
Driving Assistance
