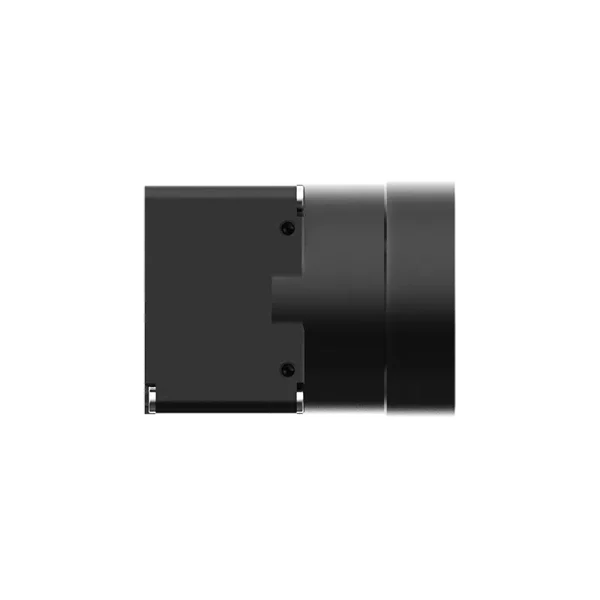

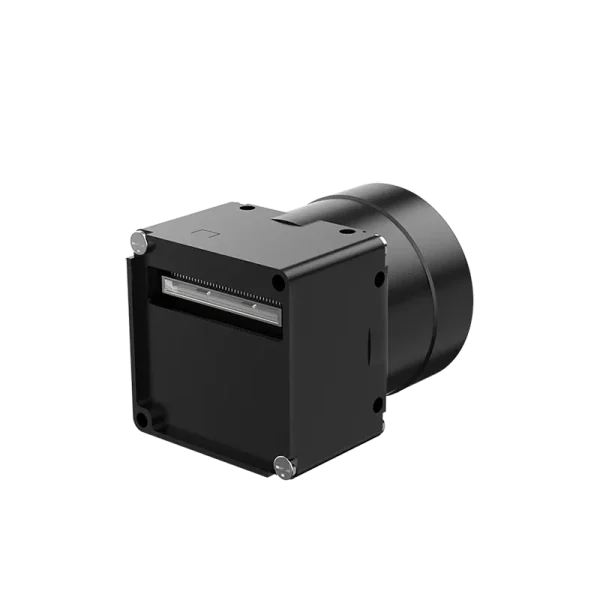

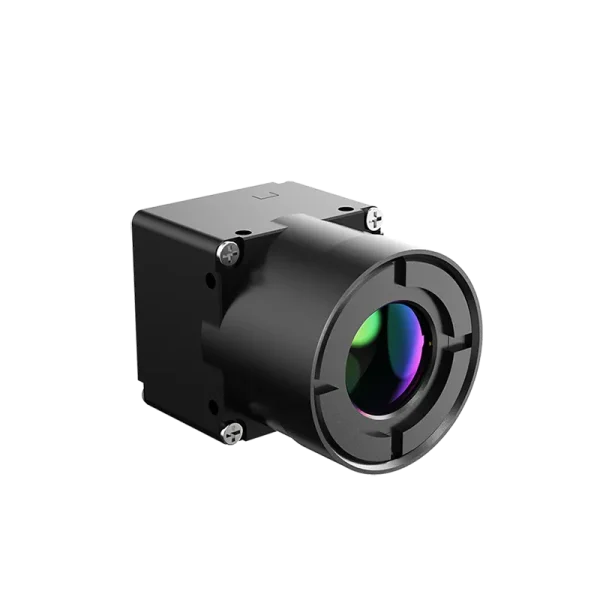

Turing ML640 Uncooled Infrared Module (Imaging)

China Moneypro

The Turing ML640 uncooled infrared module is specifically designed for applications where dimensions and power consumption are critical concerns.
Featuring extreme compactness, lighter weight and lower power consumption, it supports multiple parallel communication and video output interfaces, and provides various lightweight infrared lenses.
This series of imaging-type products can provide comprehensive infrared imaging solutions for a variety of photoelectric products including small handheld telescopes, helmet night vision devices, light-type unmanned aircraft systems, and driving assistance devices.
Products for temperature measurement can be applied in many fields like industrial and electrical temperature measurement, security measurement, and machine vision.

Feature

SWaP³ Design

Its dimensions are 21 × 21 mm, with a weight of just 8 grams and a resolution of 640 × 512. These specifications satisfy the lightweight requirements for infrared applications.

Excellent Performance

It utilizes advanced image processing techniques to preserve rich details, even in smoky or low-light conditions.
With a detection capability covering -20 to 650, this instrument delivers a fast and precise temperature evaluation method, ensuring reliable measurements instantly after startup.

Multiple Selections

The field of view spans from 10 to 130 degrees.
It is compatible with a variety of interfaces, including MIPI, USB, BT.656, and analog video.
Equipped with state-of-the-art programmable units, it offers an adaptable framework, diverse capabilities, and a high degree of tailored configuration.

Specification

Category	Parameter	Specification
Performance Indicators	Detector Type	Uncooled VOx infrared detector
	Resolution	640 × 512
	Detector Frame Rate	50 Hz
	Pixel Pitch	12 μm
	Spectral Band	8~14 μm
	NETD	≤50 mK @ 25°C (≤40 mK optional)
Image Adjustment	Brightness/Contrast Adjustment	Manual / Automatic / Linear
	Polarity	Black-hot / White-hot
	Palette	Multiple types supported
	Reticle	Display / Blank / Move
	Image Processing	Scene-based non-uniformity correction, digital filtering noise reduction, digital detail enhancement; Shutterless supported
	Mirroring	Horizontal / Vertical / Diagonal
Power Supply	Power Supply Range (typical)	3.8 V DC / 1.8 V / 3.3 V (5 V supported by user extension components)
	Typical Power Consumption @25°C (without extension)	≤0.45 W
Interface	Digital Video	BT.656 / BT.1120 / LVCMOS / MIPI
	Serial Communication Interface	UART / I2C (optional)
	Extension Components	USB 2.0 / Analog video
Temperature Measurement Performance	Measurement Range	-20°C ~ +150°C, 0°C ~ +650°C
	Measurement Accuracy	±3°C or ±3% of reading (greater value prevails) @ ambient temperature -20°C ~ +60°C ±2°C (optional)
	Measurement Tool	Secondary analysis of points, lines, and areas
Physical Characteristics	Dimensions (without lens and extension components)	21 × 21 mm
	Weight (3.2 mm, without extension components)	8 g
	Lens Model	4.1 mm, 6.9 mm, 9.1 mm, 13 mm, 25 mm, 45 mm
Environment Adaptability	Operating Temperature	-40°C ~ +80°C (-20°C ~ +60°C for measurement series)
	Storage Temperature	-45°C ~ +85°C
	Humidity	5~95%, non-condensing
Product Certification	Certification	RoHS
