MTU651 Thermal Imaging Scope
The TU Gen2 Series is equipped with a high-sensitivity thermal sensor of 12μm and a 1440×1080 HD AMOLED display. Paired with the robust PureIR image algorithm, it provides users with a more vivid and detailed visual experience. The product has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.
640×512IR Resolution
1440×10800.49″ AMOLED Display
12 HoursBattery Life
OTA Upgradefor the latest firmware

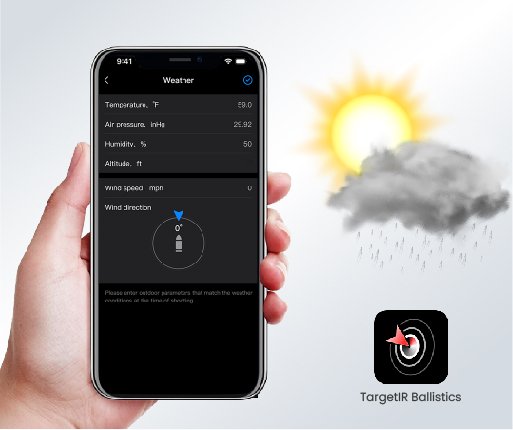

Ballistic Calculation
Connect your device to the TargetIR Ballistics app (available on Android and iOS) to configure bullet and weather parameters. The data is then transmitted directly to your device for precise ballistic calculation, making high-precision shooting effortless.

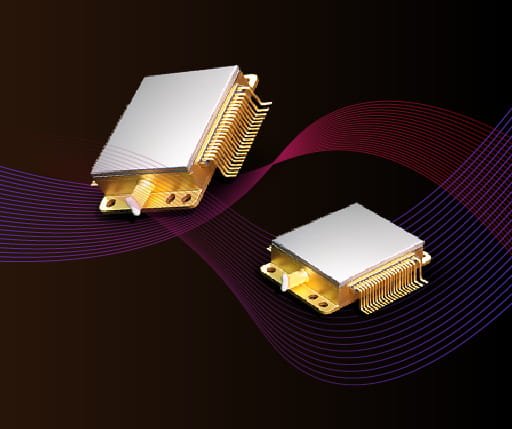

High Definition Thermal Sensor, NETD Optimized to 25mK
A high-quality thermal imaging sensor, available in 400×300@12μm or 640×512@12μm resolution with clear contrast, enables significantly improved recognition of animals, their body parts, and even fine details such as branches, leaves, grass, and landscape features.
0.49-inch 1440×1080 AMOLED Display
The upgraded 0.49-inch AMOLED display reveals finer image details to support better decision-making. Thermal signatures can be shown on the screen in picture-in-picture (PIP) mode, greatly improving viewing comfort.

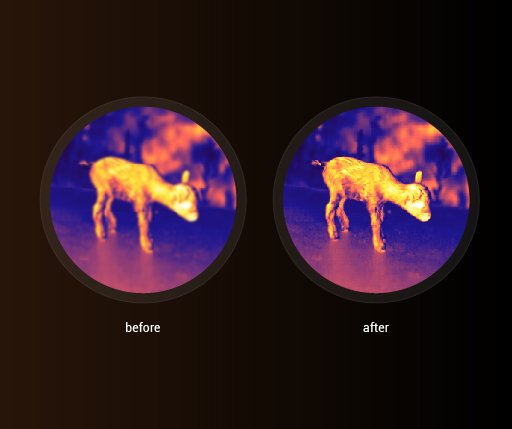

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)
The PureIR system, integrating 3DNR and PureIR adaptive filtering algorithms, produces high-sensitivity thermal images with reduced distortion and enhanced detail—even for distant targets.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×7.0° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 3.0x~23.6x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.49” AMOLED 1440×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G | |||
| Interface | USB Type-C; Micro HDMI | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 128GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single 18650 battery (built-in) and customized battery (external) | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 1000/35.27 | |||
| Size (mm/in) | 381×106×68/15.00×4.17×2.68 | |||
| Standard | Device, Lens cover, Eye mask, 5V2A adapter (US, Britain, Australia and Europe), Customized battery×2, Customized battery charger, USB Type-C cable, Micro HDMI cable, Clip×2, Quick start guide, Warranty card | |||
| Optional | Bluetooth remote control, Customized battery | |||
