China Moneypro
MTU435L 3.0 Thermal Imaging Scope
China Moneypro
The MTU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.
400×300@12μmIR Resolution
20mKNETD
1920×10800.49” AMOLED Display
12 hoursBattery Life

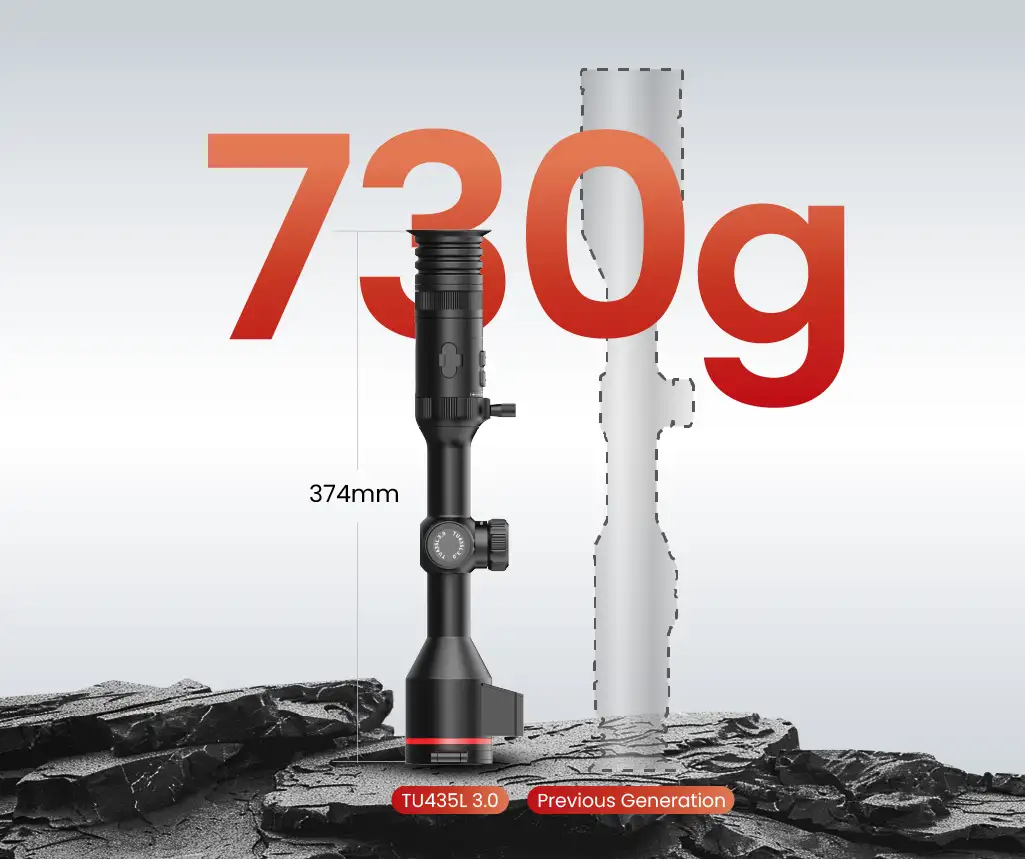

Lightweight Design Compact Housing
Compared to the previous version, TU LRF 3.0 features an even more streamlined and portable construction. With the same setup, it sheds more than 200 grams in weight. Its sleek metal body is not only durable but also offers a comfortable, ergonomic hold.
Hyper-Light Algorithm Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-light algorithm, this product enhances image quality across various dimensions—delivering sharper clarity, lowering visual noise, refining contrast, and bringing out finer details with greater resolution.
Shutterless Design Uninterrupted Visuals
The new shutterless 3.0 technology removes both the clicking noise and image lag, providing continuous real-time video while hunting. This ensures no shots are missed or lost during the calibration process.
Locate with Accuracy Up to 1500m
The TU LRF 3.0 Series comes equipped with a high-accuracy laser rangefinder, capable of detecting prey from up to 1,500 meters away, helping hunters make accurate shots and succeed in the field.
Seamless Control Easy Focus & Zoom
Built on years of field trials and direct input from hunters, the TU LRF 3.0 has been meticulously refined in every aspect—including the focus wheel, zoom lever, and button configuration. Its ergonomic design prioritizes user comfort and offers naturally intuitive operation.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.4°×4.4° | |||
| FOV m@100m | 13×8 | |||
| Magnification | 4.4x~17.6x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.49” AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charge/USB2.0) | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 128GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 18500 ×1 Battery (Built-in) and 18650 ×2 Battery (External) | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J/1200G | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 780/27.51 | |||
| Size (mm/in) | 374×89×82/14.72×3.50×3.23 | |||
| Standard | Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, 18650 Battery | |||
