MTR650 Thermal Imaging Scope
China Moneypro
TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR Series offers sharp, detailed images with 640 × 512 IR resolution while retaining accuracy. TR thermal scope also features a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.
640×512IR resolution
50mm F1.0Focal length
8.8°×7.0°Field of view
1024×768AMOLED display

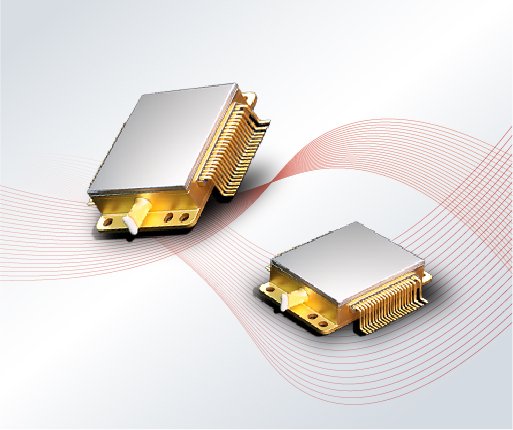

High Definition Detector
The TR Series is equipped with premium 12µm thermal detectors, delivering a crisp 400×300 resolution and an ultra-low 25mK NETD. This ensures outstanding image clarity and superior thermal sensitivity, regardless of weather conditions.
Full-color HD AMOLED Display
The 0.39-inch full-color HD AMOLED screen features a resolution of 1024×768 pixels, producing crisp visuals, deep contrast, and vibrant colors that bring every moment to life with exceptional clarity.

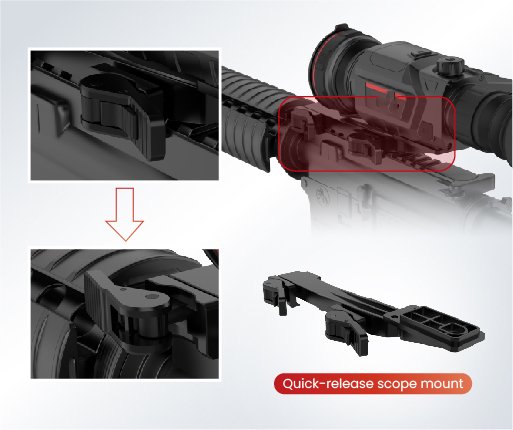

Quick-release scope mount for tool-free mounting
Simply attach the TR Series to the quick-release scope mount, then secure it by tightening the locking lever—no additional tools required for a fast, stable setup.

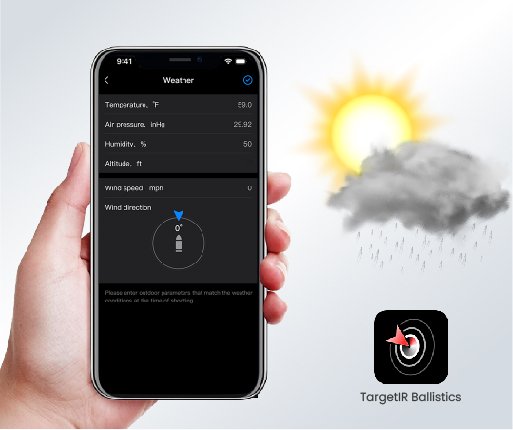

Ballistic Calculation
Connect the device to the TargetIR Ballistics App (available on Android and iOS) to configure bullet and weather settings. Once the data is synced to the device for ballistic computation, you can achieve highly accurate shooting with ease.

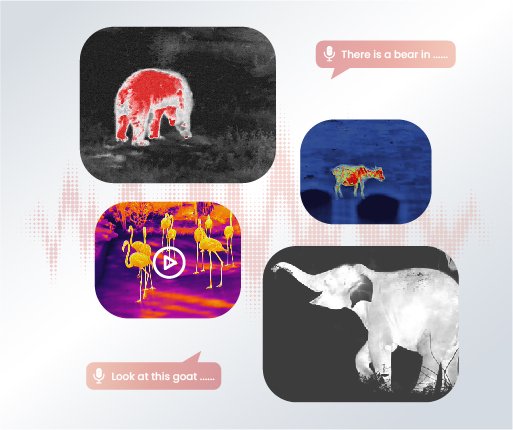

Capturing photos and videos with audio
The built-in microphone supports audio recording, while the photo and video feature lets users capture and share memorable moments on the go.
One-touch Freeze
The screen can be frozen for fast, hassle-free zeroing, which boosts precision and makes operation more convenient—leading to an improved overall user experience.

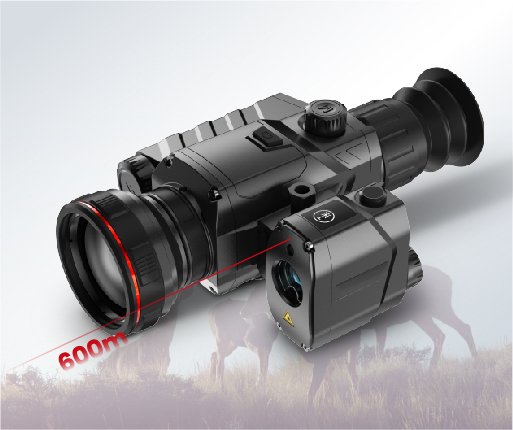

External Laser Range Finder
With the integration of an external laser rangefinder, the TR series delivers precise distance measurement up to 600 meters for rapid target acquisition. It supports plug-and-play functionality upon startup, eliminating the need for manual pairing.

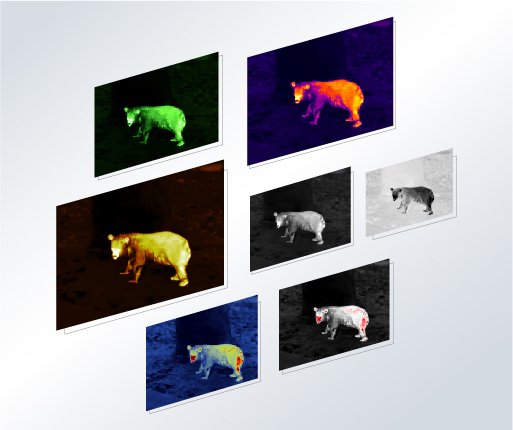

Seven Color Palettes
The 7 color palettes enhance visibility across different situations. White Hot, Black Hot, and Red Hot work best for spotting objects. Green Hot, Iron Red, Blue Hot, and Sepia support better recognition and identification.

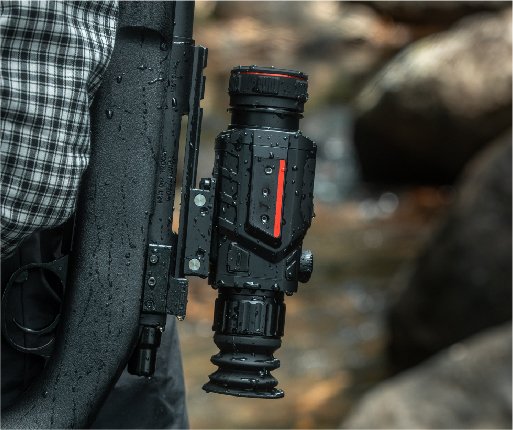

IP67 Protection Rating
With an IP67 rating for water and dust resistance, the TR Series is built to perform reliably in environments with high humidity, heavy rain, and airborne dust. In addition to withstanding harsh weather, it offers outstanding durability against physical impacts, supporting shock resistance as high as 800G.
OTA Upgrade
To improve device firmware update efficiency, enable the connection of TargetIR.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×7.0° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 2.9x~23.2x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1024×768 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, replaceable 18650 battery | |||
| Operating time | 8 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 682/24.06 | |||
| Size (mm/in) | 219×92×70/8.62×3.62×2.76 | |||
| Standard | Device, Quick-release scope mount, Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, Quick start guide, Warranty card | |||
| Optional | 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder | |||
