MDR30 Digital Day & Night Vision Scope
China Moneypro
The DR Series is a powerful and professional day and night vision scope with outstanding night vision capability, featuring an excellent 1920×1080@4μm CMOS sensor with a 35mm lens to create a large field of view of 12.5°×7.06° while the 1920×1080 full HD AMOLED display ensures your viewing experience. The 18650 Li-ion battery lasts up to 6 hours max depending on usage, ever worry about insufficient power during a hunting trip. Elevate your vision with the DR Series!
12.52°x7.06°Ultra large FOV
1920×1080OLED AMOLED
OTAupgrade
1920×1080@4µm HD sensor

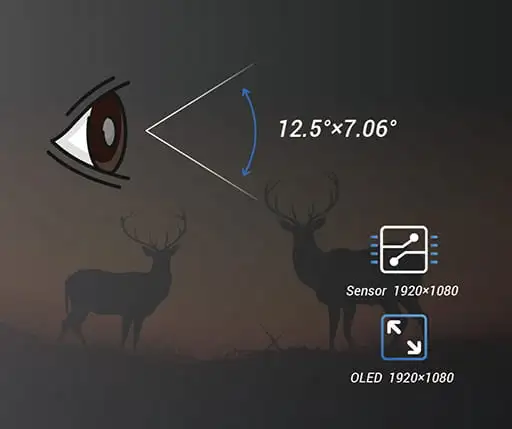

Ultra Large FOV Experience
The 1920×1080 sensor with 4μm pixels is paired with a 35mm lens, delivering a broad 12.5°×7.06° field of view. Combined with a full HD 1920×1080 OLED display, it guarantees a superior viewing experience with smoother imagery and enhanced detail.

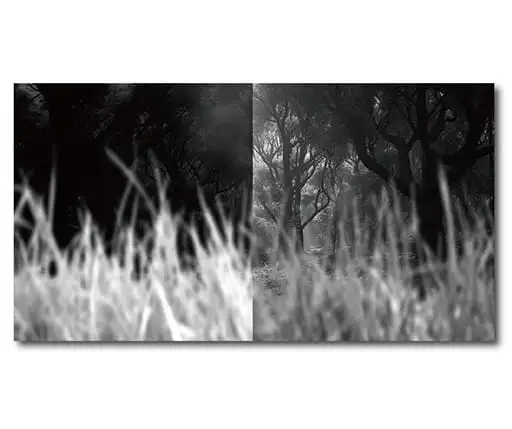

Clear Nighttime Imaging
Upgraded algorithms intelligently adjust display brightness when the scope is paired with an IR illuminator. They also prevent overexposure caused by nearby objects while boosting the visibility of distant targets to an optimal level. The result is noticeably sharper images with reduced noise, delivering a superior professional nighttime viewing experience outdoors.

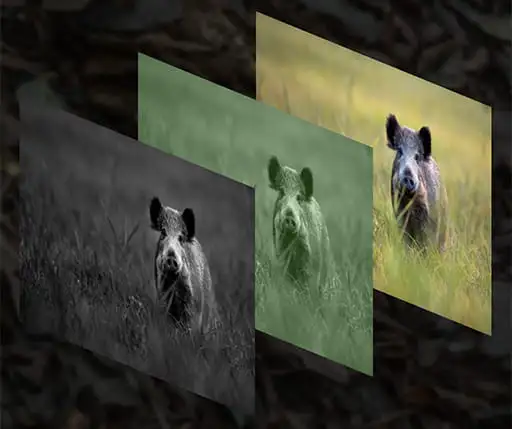

Three Viewing Modes
Day Mode delivers true-to-life colors, Low-light Mode reveals and preserves fine details in dim settings, and Night Mode ensures no motion goes unnoticed.

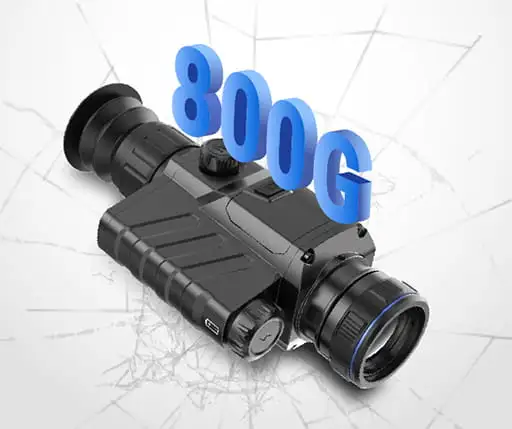

IP67 Waterproof
IP67 provides reliable defense against tough outdoor conditions, including rain and high humidity, with outstanding shock tolerance of up to 800G.

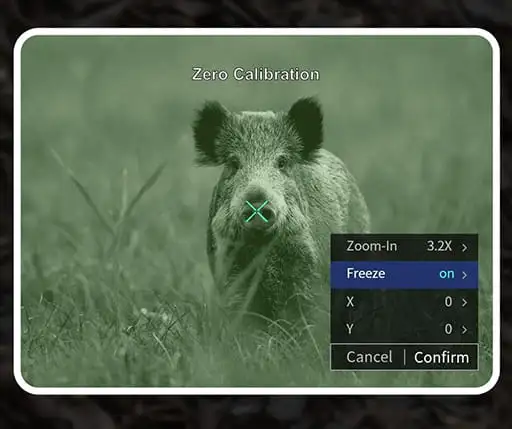

One-touch Freeze
Screen lock for fast, hassle-free zeroing boosts precision and makes operation more effortless, leading to a smoother overall user experience.

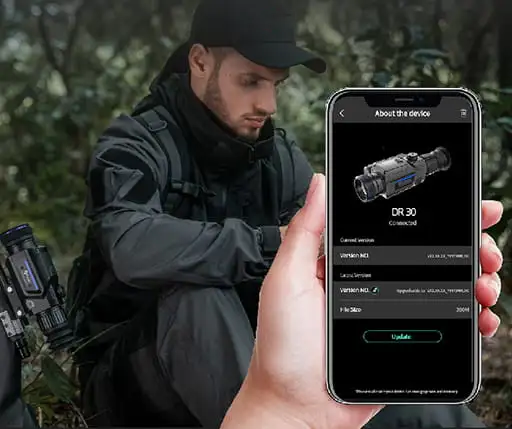

OTA Upgrade
With OTA upgrades, firmware updates are now more user-friendly, straightforward, and hassle-free. Simply connect to the TargetIR App, and the firmware can be updated automatically from the comfort of your home.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | CMOS | |||
| Resolution | 1920×1080@4μm | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.2 | |||
| Field of view | 12.52°×7.06° | |||
| FOV m@100m | 22×12 | |||
| Magnification | 2.175x~17.4x | |||
| Detection range | 500m/550yd (850nm); 450m/500yd (940nm) | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1920×1080 | |||
| Scene modes | Day, Night, Low-light | |||
| Eyepiece | Eye relief: ≥ 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| IR illuminator | 850nm/940nm (Alternative) | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 32 GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, replaceable 18650 battery | |||
| Operating time | 6 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 565/19.93 | |||
| Size (mm/in) | 218×88×66/8.58×3.46×2.60 | |||
| Standard | Device, Sight base (Choose from two specifications), Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, IR illuminator, IR illuminator bracket, Quick start guide, Warranty card | |||
| Optional | 18650 battery, Bluetooth remote control, Laser rangefinder | |||
