China Moneypro

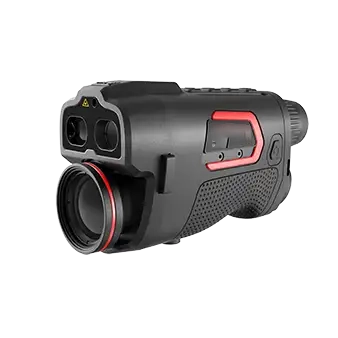

MTL650 Multispectral Fusion Thermal Monocular
China Moneypro
The TL Series is the first multispectral fusion thermal monocular of Guide Outdoor whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12 m high-end thermal sensor, 1920 1080 CMOS sensor and 1920 1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.
Day & Night UseThermal+Digital
640 480@12 mIR Resolution
1920 1080 AMOLED display
GPS Target Positioning
All-in-one Design for All-day and All-weather Observation
With both thermal and night vision capabilities, suitable for use in daylight and darkness, enabling rapid searching and accurate target identification.
Integrated HD Thermal Detector and Digital Sensor
Premium thermal imaging and night vision provide sharp contrast and clarity, enabling better identification of animals, their physical features, and fine details like twigs, foliage, grass, and terrain—available around the clock.
1920 1080 AMOLED Display
High-resolution 0.39-inch AMOLED with 1920×1080 delivers lower power usage, broader viewing angles, and more vivid colors, enabling superior detail observation.
Built-in Precision Laser Rangefinder
The built-in high-precision laser ranging module delivers accurate distance measurements up to 600 meters, providing reliable target distance data without requiring calibration.
Built-in GPS for Target Positioning
GPS technology provides precise latitude and longitude coordinates, which are crucial for hunters to navigate safely, map terrain, track game, and access key environmental data. When combined with an integrated laser rangefinder and gyroscope, the system can also measure target distance and device angle, enabling faster and more accurate aiming.
Combined Multispectral Viewing Modes
You can operate the TL Series across multiple unique imaging modes. These include a standard thermal monocular with five selectable color palettes, a high-resolution optical camera for both daylight and night vision use, or the exclusive Fusion mode. This mode blends optical image details with thermal data to enhance the thermal channel’s performance, offering exceptional detection capabilities and outstanding image clarity.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14 m; Digital: CMOS | |||
| Resolution | Thermal: 640 480@12 m Digital: 1920 1080@4 m | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | Thermal: 50mm, F1.2; Digital: 17mm, F1.4 | |||
| Field of view | 8.7 6.6 | |||
| FOV m@100m | 15 12 | |||
| Magnification | 2.0x~16.0x | |||
| Detection range | 2600m/2800yd | |||
