MTJ630L Handheld Thermal Imaging Monocular
China Moneypro
Embark on nighttime explorations with the TJ LRF Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
NETD 20mKDetector
Full-HD 1920x1080AMOLED display
1000mLaser range
IP67Encapsulation
Welcome to the big screens
TJ LRF Series – Handheld Thermal Imaging Monocular
12um high sensitivity infrared detector
By incorporating an ultra-sensitive infrared detector featuring a NETD of less than 25 mK, even minimal temperature variations become detectable, leading to enhanced image sharpness and clarity.

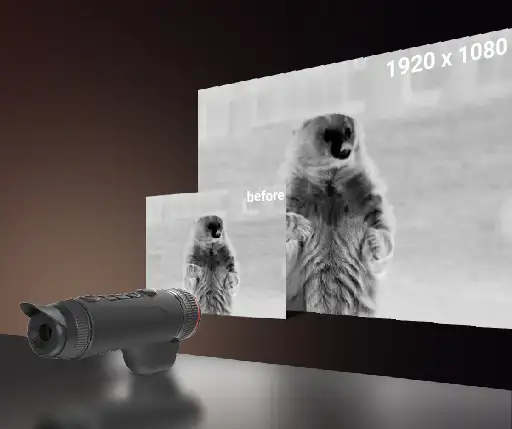

1920 X 1080 AMOLED Display
The eyepiece is equipped with a full HD 1920×1080 AMOLED display, delivering vivid colors and outstanding image clarity. As a result, the viewing experience becomes noticeably more comfortable.

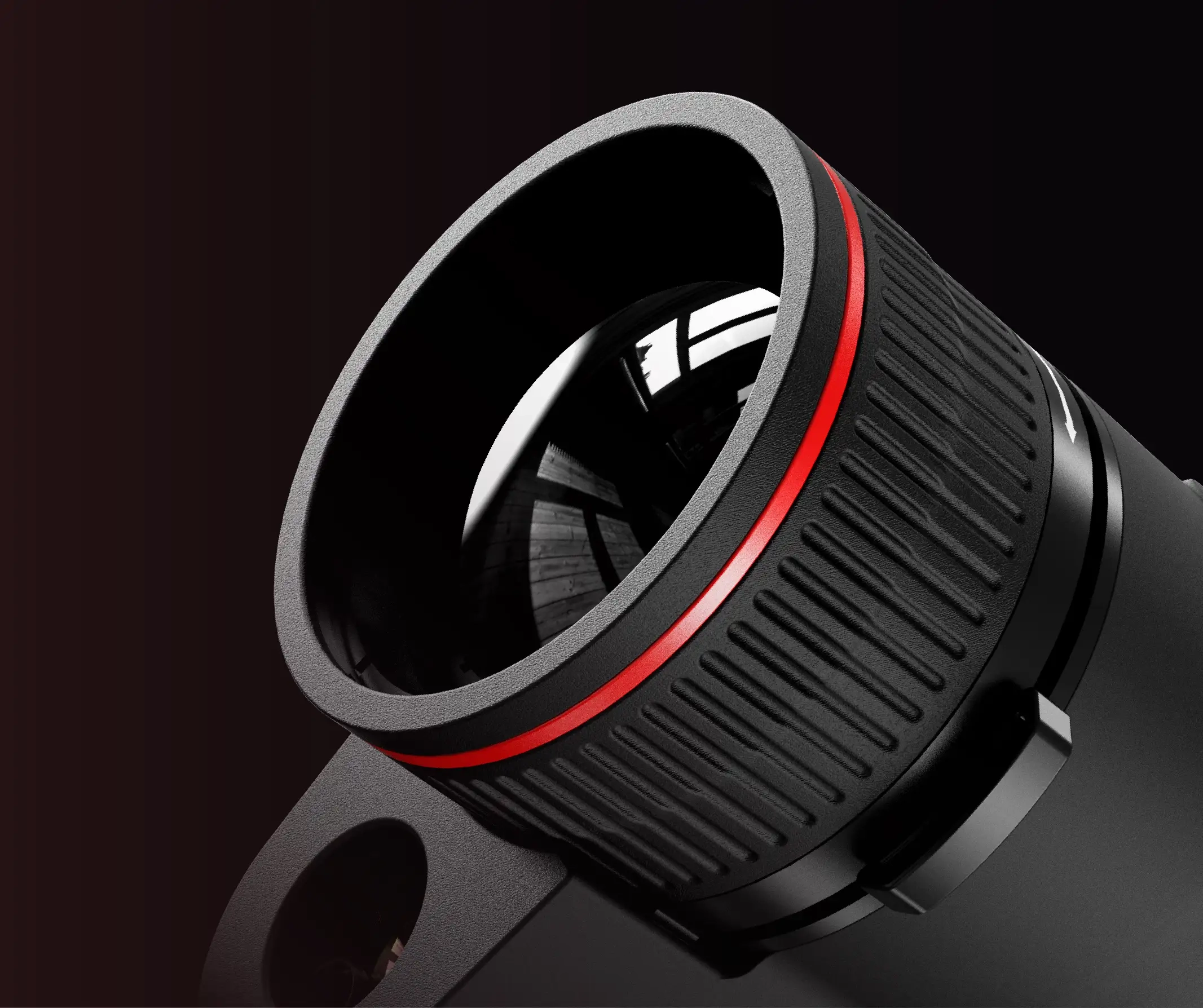

25/35/50mm F1.0 focal length
The TJLRF Series leverages multiple focal lengths to deliver enhanced performance and greater flexibility across diverse environments. With a powerful 50mm F1.0 lens, it can clearly identify targets up to 2000 meters away, facilitating effective observation and reliable recording.

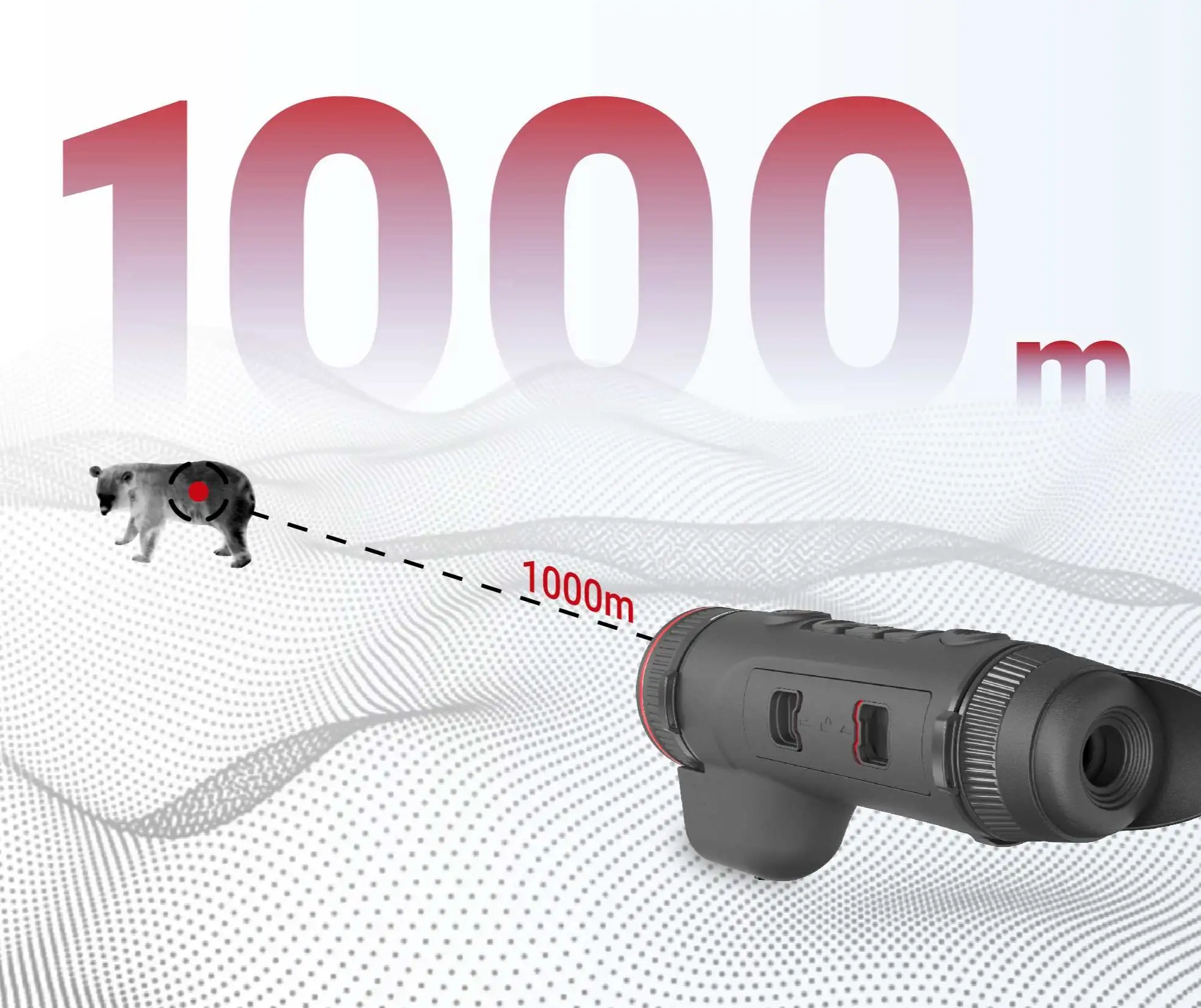

1000m laser ranging
The integrated laser rangefinder supports a detection distance of up to 1000 meters, enhancing long-range perception and the ability to accurately capture target distance.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 640 512@12 m | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5 10.0 | |||
| FOV m@100m | 22 17 | |||
| Magnification | 2.66x~21.28x | |||
| Detection range | 1800m/1950yd | |||
