China Moneypro MMPS645-L Laser Thermal Gun Sight

Key Features

• Integrated LRF enables automatic target ranging and real-time reticle adjustment.
• A 3rd-gen 12μm / 640×512 (50Hz) infrared detector ensures smooth, high-definition imagery.
• Human target detection and recognition capability extends to 700 meters.
• Hot-swappable battery design supports uninterrupted 24/7 operation.
• Lightweight magnesium alloy housing with IP67 rating withstands harsh environments.
• User-friendly single-scrollwheel interface simplifies control.
• Survives 1200g/0.3ms shock and performs reliably in extreme climates.
• Directional guidance, photo and video recording—stores up to 10,000 images or 12 hours of footage.
• Wi-Fi connectivity enabled for remote control and data transmission.
• Smart reticle adjustment boosts first-round hit probability.
• Multiple reticle patterns (range and mil-dot) enhance shooting accuracy.
• Compatible with various weapon systems.
• Modular construction allows fast field deployment.

Technical Specifications

IR Parameters

• Resolution: 640 512
• Pixel Pitch: 12 m
• Frame Rate: 50Hz
• OLED: 1024 768

Power Supply

• Battery: External 1 18650 / Internal 2 18500
• Operating Time: 12h

Physical Parameters

• Weight: 750g
• Dimensions: 245mm 95mm 95mm

Optical Parameters

• Focal Length: 45mm F1.1
• FOV: 9.7 7.8
• Diopter Adjustment: -4D ~ +2D
• Exit Pupil Distance: 35mm

Laser Module

• Wavelength: 905nm
• Range: 50C2000m
• Accuracy: 2m
• Display: 0.96 OLED
• Removable: Yes

Environmental Requirements

• Protection: IP67
• Operating Temperature: -40 ~ +55
• Reliability: 1200g/0.3ms

Functional Parameters

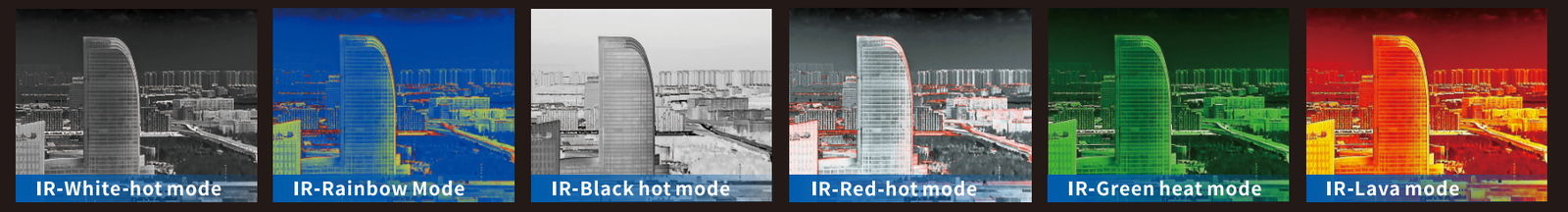

• Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
• Digital Zoom: 1C4
• Digital Compass: Azimuth, Pitch, Roll angle
• Memory: 128GB
• Intelligent Target Recognition: Personnel, vehicles, drones, etc.
• Reticle: Multiple range and mil-dot
• Custom Reticle: Supports offline upgrades
• Picture-in-Picture: Yes
• One-Click Zeroing: Yes
• Ballistic Calculation: Yes
• Wi-Fi: Yes

Interfaces

• Electrical: Type-C / RS232 / PAL
• Mechanical: Standard Picatinny Rail

Effective Range

• Personnel Recognition (IR):up to 0.75 km
• Personnel Detection (IR):up to 1.8 km
• Vehicle Recognition (IR):up to 1.5 km
• Vehicle Detection (IR):up to 3.75 km

FAQ

Q1: What level of ranging precision does the China Moneypro MPS645-L provide?
A1: The China Moneypro MPS645-L delivers laser ranging accuracy of 2 meters over a distance span of 50 to 2,000 meters, offering dependable distance data for both close-quarters and long-distance targeting.

Q2: Is the device suitable for extended use under severe environmental conditions?
A2: Absolutely. Built to IP67 standards and capable of withstanding 1200g shock at 0.3ms, it performs reliably in freezing temperatures, scorching heat, high-altitude plateaus, and humid jungle environments.

Q3: How does built-in Wi-Fi enhance operational effectiveness?
A3: Wi-Fi connectivity supports real-time video streaming and data sharing with command posts or handheld devices, giving tactical units synchronized awareness during missions.

Q4: What sets its ballistic calculation feature apart?
A4: Its onboard ballistic engine automatically computes firing solutions using live laser range inputs, fine-tuning reticle positioning and greatly improving first-shot success rates.

Q5: How does the China Moneypro MPS645-L stack up against standard thermal scopes?
A5: Unlike conventional thermal sights, the China Moneypro MPS645-L merges thermal imaging, laser ranging, Wi-Fi, and ballistic computation into a single compact system, positioning it as one of the most sophisticated multi-capability thermal rifle sights on the market.
