MTJ420L Handheld Thermal Imaging Monocular
China Moneypro
Embark on nighttime explorations with the TJ LRF Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
NETD<25mKDetector Full-HD 1920x1080AMOLED display 1000mLaser range IP67Encapsulation
Welcome to the big screens
TJ LRF Series – Handheld Thermal Imaging Monocular
12um high sensitivity infrared detector
By incorporating an ultra-sensitive infrared detector with a NETD of less than 25 mK, even minimal temperature variations become detectable, enabling enhanced image sharpness and clarity.
1920 X 1080 AMOLED Display
The eyepiece is equipped with a 1920×1080 AMOLED display, delivering vivid colors and sharp image quality for an impressive visual experience. As a result, it greatly improves viewing comfort.

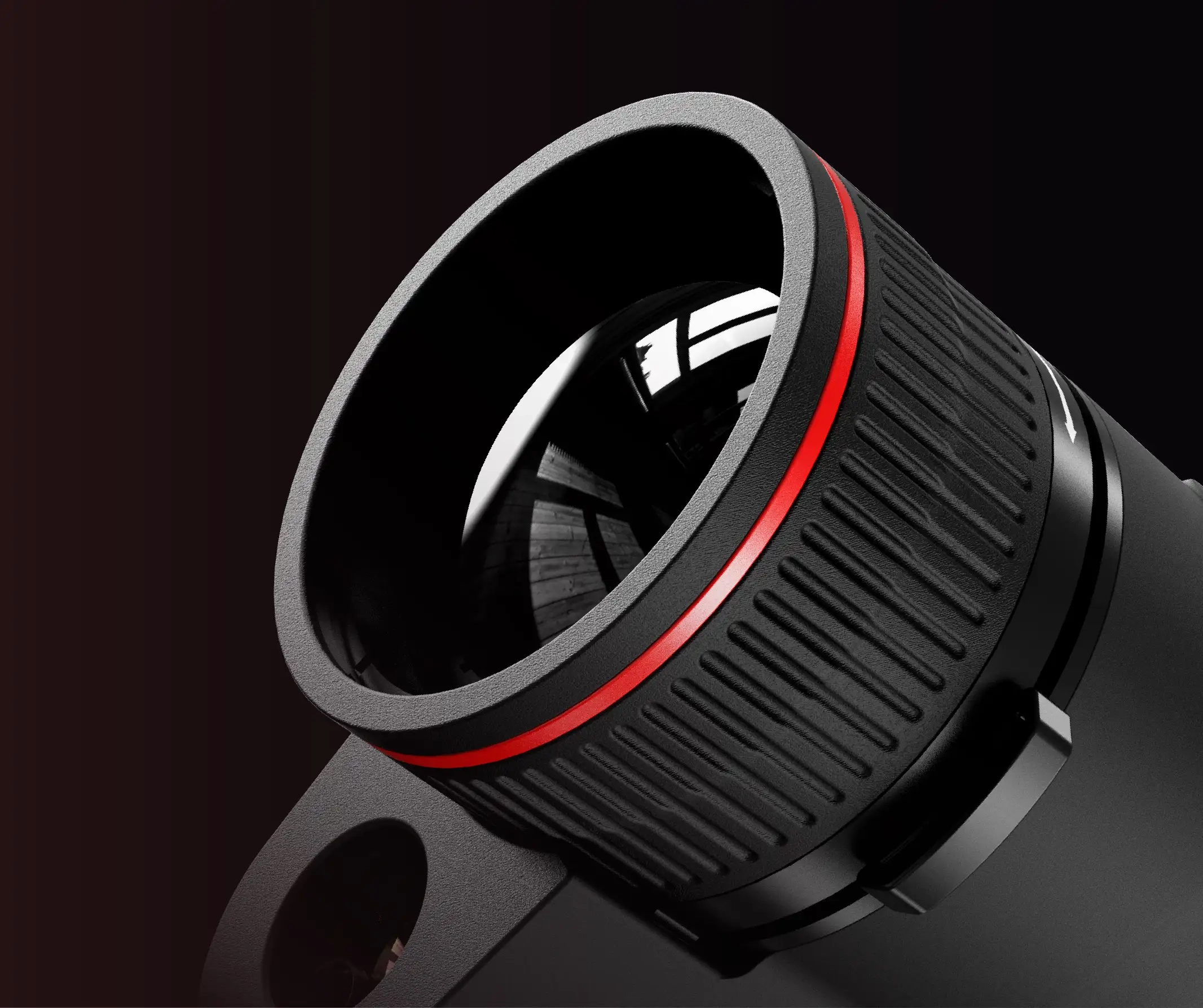

25/35/50mm F1.0 focal length
With multiple focal lengths, the TJLRF Series delivers enhanced performance and greater flexibility across various environments. Equipped with a powerful 50mm F1.0 lens, it can clearly identify targets up to 2000 meters away, making observation and recording more efficient.
1000m laser ranging
The integrated laser rangefinder supports a detection distance of up to 1000 meters, enhancing long-range awareness and the ability to acquire target distance data.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 400 300@12 m | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.0 | |||
| Field of view | 11.0 8.2 | |||
| FOV m@100m | 19 14 | |||
| Magnification | 3.04x~12.16x | |||
| Detection range | 1300m/1400yd | |||
