China Moneypro
MTD633LHandheld Thermal Imaging Monocular
China Moneypro
The TD Gen3 LRF Series handheld thermal imaging monocular innovatively integrates a laser rangefinder while maintaining a compact design. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.
640 512@12 m 20mKDetector
10 hoursBattery
1800m/1950ydLaser rangefinder
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 LRF Series is equipped with a 12 µm infrared detector, available in 640×512 and 400×300 resolution options. Paired with a 35mm lens, it delivers remarkably clear imagery even in total darkness.

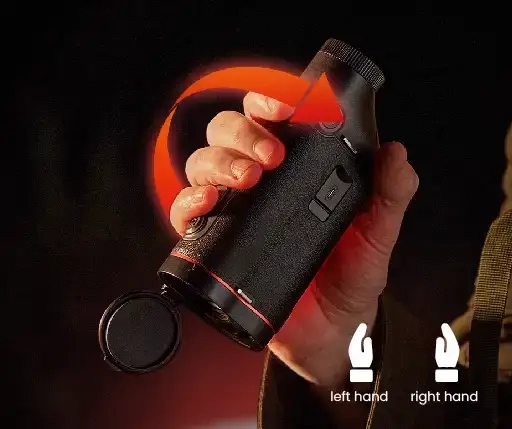

Ambidextrous design, one-handed operation
The housing features a symmetrical design, making it comfortable to use with either the left or right hand. The buttons are ergonomically arranged to match natural user behaviors, allowing for convenient one-handed control.
Fine-tuning focus scroll with fingers
The compact focusing roller delivers a distinctive feel for fast, accurate fine-tuning, enabling single-finger scrolling to effortlessly adjust focus.
Upgraded visuals enlarged AMOLED display
Building on its predecessor, the TD Gen3 LRF Series now includes a 0.36-inch AMOLED screen with a sharp 1280 x 960 resolution, offering richer visuals and improved viewing comfort.
Built-in LRF, precise target distance
The laser rangefinder is built directly into the device, creating a smooth and unified design that improves both portability and real-world usability. It supports a maximum measurement distance of up to 1,000 meters, enabling accurate target positioning.
Extended battery life, uninterrupted power
During fieldwork—whether observing, exploring, or stalking—the TD Gen3 LRF Series delivers an outstanding 12 hours of continuous operation. Its swappable 18650 battery is designed for effortless blind insertion in low-light conditions, eliminating the need to identify the positive and negative poles.
Smart recording, expanded built-in storage
The enhanced smart recording feature supports video capture with audio. With up to 32GB of built-in storage, users can save over 100,000 photos without any concern about space limitations.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 640 512@12 m | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8 6.6 | |||
| FOV m@100m | 15 12 | |||
| Magnification | 2.6x~20.8x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
