MTD433Handheld Thermal Imaging Monocular
China Moneypro
The TD Gen3 Series handheld thermal imaging monocular, compact in design, yet powerful in function. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.
400 300@12 mIR Resolution
25mKNETD
1800m/1950ydDetection range
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 Series is equipped with a 12 µm infrared detector and supports resolutions of 600×512 and 400×300. With a range of available focal lengths, it produces remarkably clear images even in total darkness.

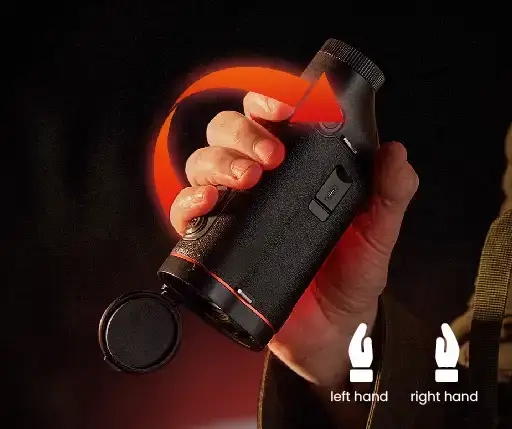

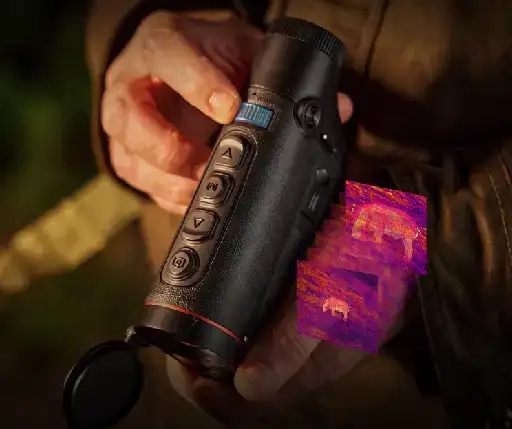

Ambidextrous design, one-handed operation
The housing features a symmetrical design, making it comfortable to use with either the left or right hand. The buttons are ergonomically arranged to fit natural user habits, supporting smooth one-handed operation.
Fine-tuning focus, scroll with fingers
With the compact focusing roller, you can enjoy a swift yet accurate fine-tuning experience—just a single finger swipe allows you to adjust the focus effortlessly.

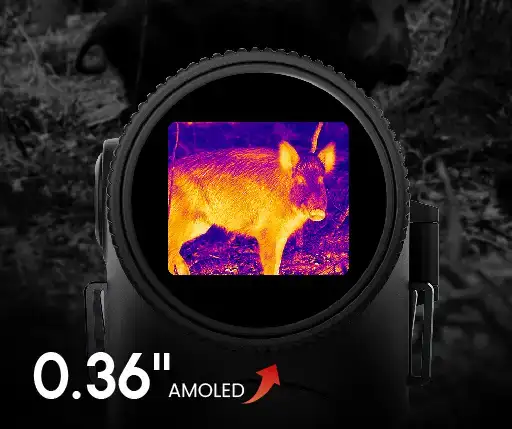

Upgraded visuals, enlarged AMOLED Display
Building on its predecessor, the TD Gen3 Series is equipped with a 0.36-inch AMOLED screen offering a sharp 1280 x 960 resolution, resulting in richer detail and a gentler viewing experience.

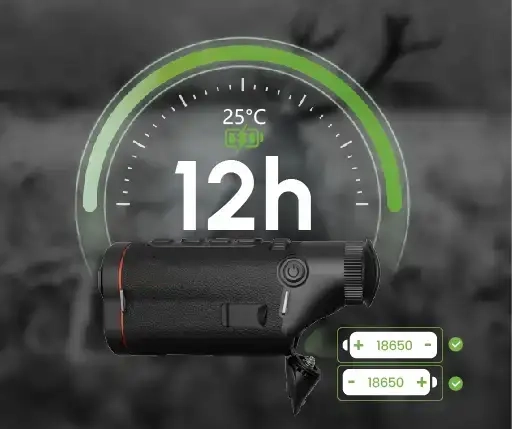

Extended battery life, uninterrupted power
During field observation, exploration, and stalking missions, the TD Gen3 Series delivers a remarkable 12-hour operating time. Its swappable 18650 battery allows for blind insertion even in total darkness, eliminating the need to identify positive and negative terminals.

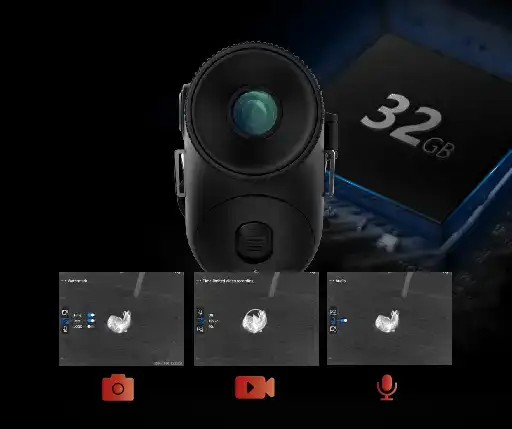

Smart recording, expanded built-in storage
The enhanced smart recording feature now supports video capture with audio. With up to 32GB of built-in storage, users can save over 100,000 images without ever worrying about limited space.
Technical Parameters
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.9 5.9 | |||
| FOV m@100m | 14 10 | |||
| Magnification | 2.9x~11.6x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
