MTE421 Handheld Mini Thermal Imaging Monocular
China Moneypro
The TE Series Handheld Thermal Imaging Monocular is a pocket-sized night vision powerhouse, offering exceptional performance at an affordable price. It is equipped with a highly sensitive infrared detector, providing multiple resolutions and lens options to meet your diverse needs in various environments. A 10-minute quick charge gives you an hour of continuous use, making it the perfect companion for your outdoor explorations.
400 300@12 mResolution
Only 295gUltra-Lightweight
One-button controlSmooth Operation
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 Series is equipped with a 12μm infrared detector and supports resolutions of 600×512 and 400×300. With a selection of available focal lengths, it produces exceptionally clear images even in total darkness.

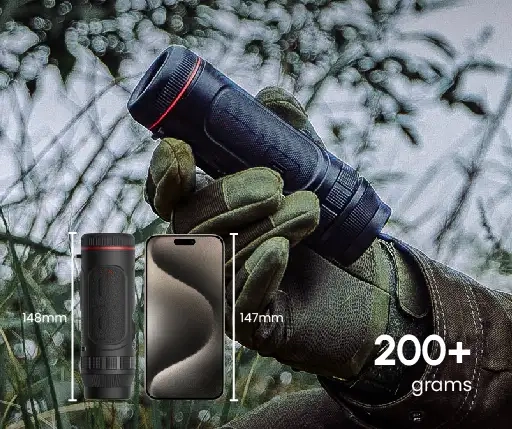

Ultra-lightweight Effortlessly portable
The TE Series weighs just over 200 grams and fits easily in your pocket. It’s as small as a mobile phone and even thinner than a wristwatch, providing a comfortable hold and ultimate portability.

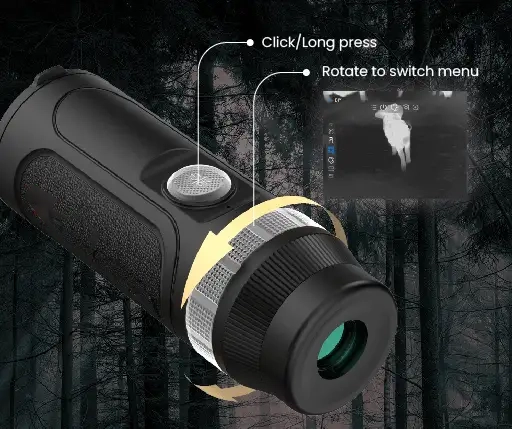

Smooth operation One-button, one-ring
Based on years of real-world outdoor use, the TE Series features a simplified button layout for effortless operation. Its intuitive one-button, one-ring configuration gives you quick access to the menu and a full range of functions, ensuring smooth and responsive control.
Extended battery 20W quick charge
The TE Series comes with a built-in rechargeable battery offering up to 6 hours of operation. Equipped with an advanced 20W fast charging capability, it allows for just 10 minutes of charging to deliver 1 hour of uninterrupted use, keeping you powered with confidence.
Comfortable viewing Clear and smooth visuals
The 0.32-inch AMOLED display delivers vibrant colors and sharp, fluid visuals for exceptional image quality. With a comfortable eyepiece and 25mm eye relief, eye strain is effectively reduced, ensuring an enjoyable viewing experience during your outdoor adventures.

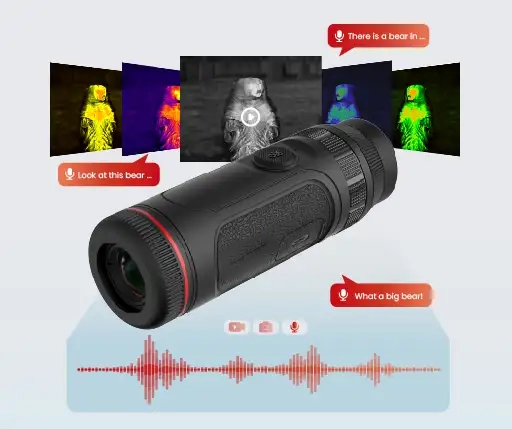

Audio-visual sync
With 16GB of onboard storage, you can easily record photos, videos, and audio wherever your adventures take you. Capture and share unforgettable moments in the wild — anytime, anywhere.
Dual-band WiFi connection
The TE Series now supports dual-band WiFi for a more reliable connection. With faster data transfer and extended range, upgrading takes just 10 seconds to download the package, while the maximum transmission distance reaches 26.5 meters.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 400 300@12 m | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.0 | |||
| Field of view | 11 8.2 | |||
| FOV m@100m | 19 14 | |||
| Magnification | 1.9x~7.6x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
