MTD411 Handheld Thermal Imaging Monocular
China Moneypro
TD Gen2 Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.
384x288IR Resolution
19mm/F1.0Focal Length
ManualFocusing
10 HoursBattery Life

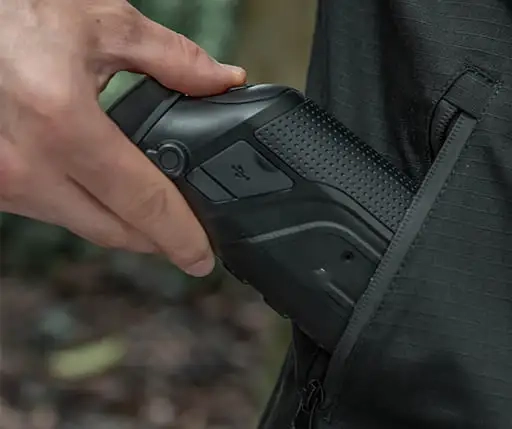

Tiny and Powerful
A portable, easy-to-handle device that fits comfortably in one hand, offering a fatigue-free experience for carrying and exploring.
12 Hours Strong Battery Life
Over 12 hours of continuous active operation, with a 3-hour upgrade from the earlier model. Powered by a standard 18650 cell — readily available for replacement.
New User Interface design
New interface design streamlines user operations using icons instead of text, eliminating language barriers.

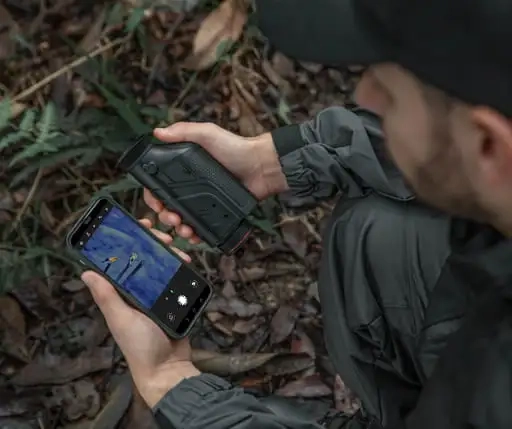

Real-time Sharing by WIFI
Connect your phone to the app via Wi-Fi and share those amazing moments as they happen.
OTA Upgrade
Enable efficient device firmware upgrades via connection with the TargetIR App.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 384 288@12 m | |||
| NETD | 35mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 19mm, F1.0 | |||
| Field of view | 13.6 10.3 | |||
| FOV m@100m | 24 18 | |||
| Magnification | 1.4x~5.6x | |||
| Detection range | 1000m/1090yd | |||
