MTJ630 Handheld Thermal Imaging Monocular
China Moneypro
Embark on nighttime explorations with the TJ Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
NETD 20mKDetector
12 hrsBattery
Full-HD 1920x1080AMOLED display
IP67Encapsulation
12um high sensitivity infrared detector
By employing an ultra-sensitive infrared detector featuring a NETD of just 25 millikelvin, even minimal thermal variations become clearly distinguishable, delivering enhanced image sharpness and superior clarity.

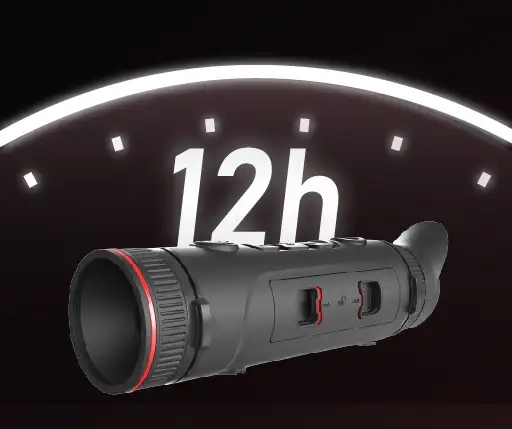

12h operating time
To enable uninterrupted outdoor observation and hunting, the TJ Series offers an extended 12-hour battery life, operating reliably in temperatures ranging from -20°C to 50°C (-4°F to 122°F). Its standard 18650 batteries are designed for easy replacement even in complete darkness, providing a worry-free user experience and eliminating concerns about power failure.

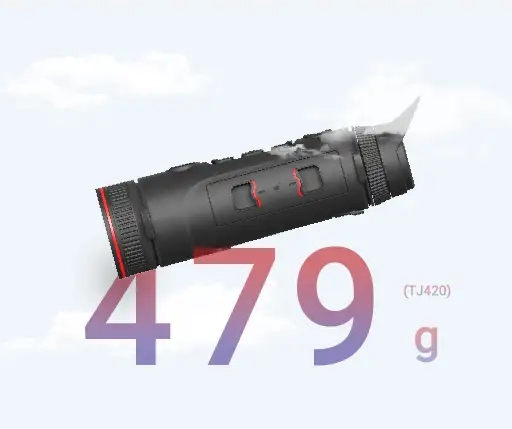

Lightweight
The total weight of the unit is approximately 500g, helping to minimize gear load and making it simple to carry and operate in outdoor settings. Its streamlined shape and travel-friendly dimensions add ease to your nighttime adventures.

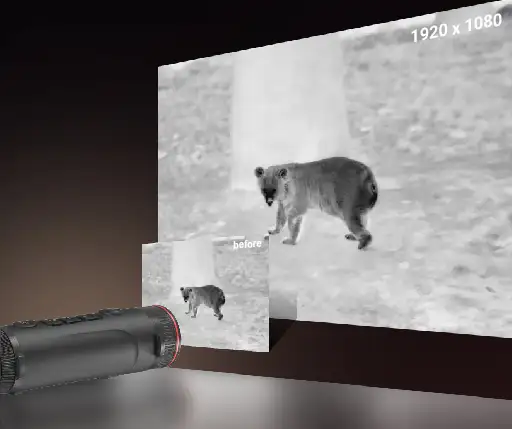

Full-HD 1920×1080 AMOLED display
The eyepiece is equipped with a 1920×1080 AMOLED display, delivering vivid colors and outstanding image clarity. As a result, the viewing experience becomes noticeably more comfortable.

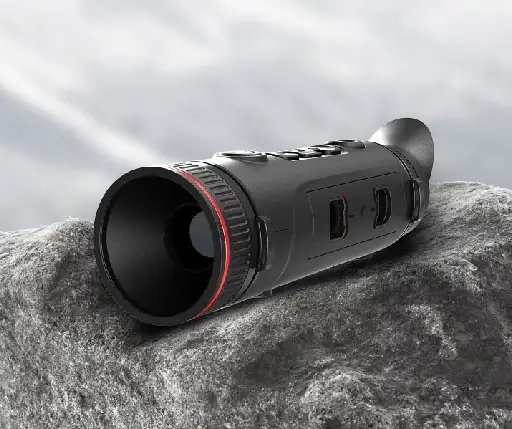

IP67 Waterproof rating
Equipped with an IP67 waterproof certification, this thermal imaging monocular is built to endure even the harshest weather. Thanks to its durable construction, you can confidently bring it along on any adventure, rain or shine.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 640 512@12 m | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5 10.0 | |||
| FOV m@100m | 22 17 | |||
| Magnification | 2.66x~21.28x | |||
| Detection range | 1800m/1950yd | |||
