MTD431 Handheld Thermal Imaging Monocular
China Moneypro
TD Gen2 Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.
384x288IR Resolution
35mm/F1.0Focal Length
ManualFocusing
10 HoursBattery Life
Tiny and Powerful
A portable, easy-to-handle device designed for one-handed operation, offering a comfortable grip and effortless carrying for worry-free exploration.
12 Hours Strong Battery Life
With over 12 hours of continuous operation, this model gains an extra 3 hours compared to its predecessor. It runs on a standard 18650 battery, which is widely available and simple to replace.
New User Interface design
Redesigned user interface for streamlined interaction; uses icon-based controls to eliminate language barriers.

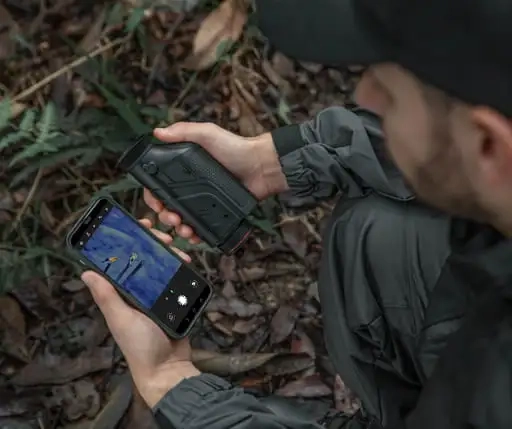

Real-time Sharing by WIFI
Connect your phone to the app via Wi-Fi and share those amazing moments as they happen in real time.

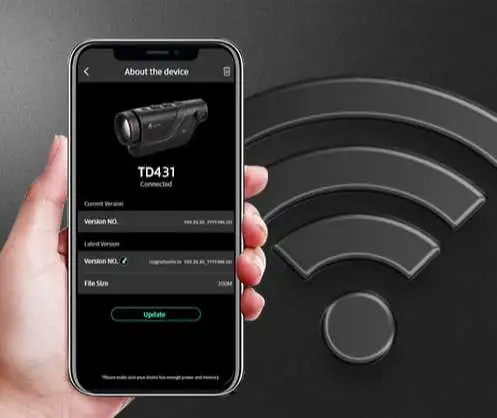

OTA Upgrade
Enable efficient device firmware upgrades via connection to the TargetIR App.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 384 288@12 m | |||
| NETD | 35mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.5 5.6 | |||
| FOV m@100m | 13 10 | |||
| Magnification | 2.6x~10.4x | |||
| Detection range | 1800m/1950yd | |||
