MTD211 Handheld Thermal Imaging Monocular
China Moneypro
TD Gen2 Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.
256x192IR Resolution
10mm/F1.0Focal Length
Focus-freeFocusing
12 HoursBattery Life
Tiny and Powerful
A portable, one-hand-operated device designed for a comfortable grip, making it easy to carry and effortless to explore with.
12 Hours Strong Battery Life
With over 12 hours of real-world runtime, it delivers 3 more hours than the previous model. Powered by a standard 18650 cell, replacement batteries are widely available.

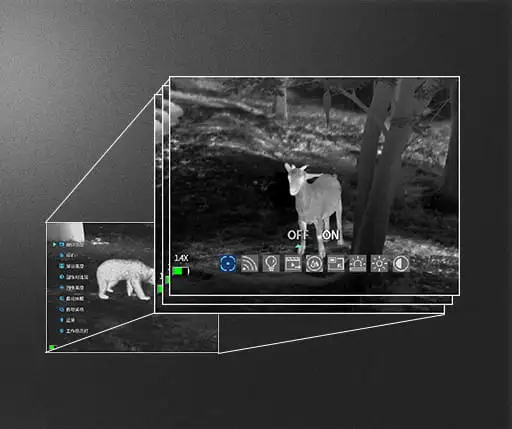

New User Interface design
Redesigned user interface for streamlined interaction; uses icon-based controls to remove language barriers.

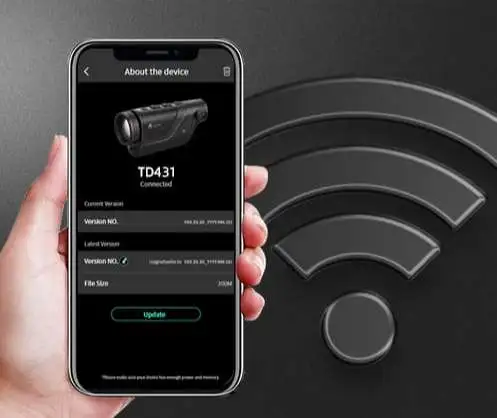

Real-time Sharing by WIFI
Connect your phone to the app via Wi-Fi and share every amazing moment as it happens.
OTA Upgrade
Enable efficient device firmware upgrades via direct connection with the TargetIR App.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 256 192@12 m | |||
| NETD | 50mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 10mm, F1.0 | |||
| Field of view | 17.5 13.2 | |||
| FOV m@100m | 31 23 | |||
| Magnification | 1.1x~2.2x | |||
| Detection range | 500m/550yd | |||
