MTD411 LRF Handheld Thermal Imaging Monocular
China Moneypro
The TD Gen2 LRF Series is the industry’s first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.
384x288IR Resolution
19mm/F1.0Focal Length
ManualFocusing
10 HoursBattery Life

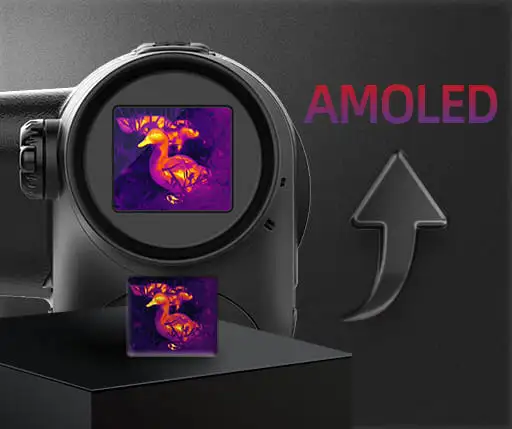

High-brightness AMOLED Display
The 12 m high sensitivity infrared detector and a 0.23-inch AMOLED display with 384 x 288 resolution to better depict image edges and details, providing a high-contrast and detailed thermal image for a comfortable viewing experience.
Enhanced Image Processing Algorithms
The TD Gen2 LRF Series uses a new approach to image optimisation depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.

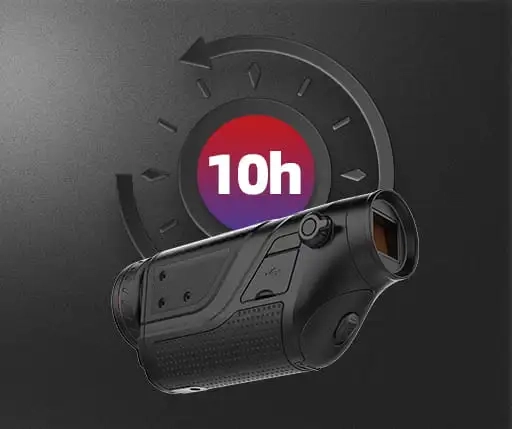

10 Hours Strong Battery Life
Over 10 hours of active use, 3 hours improvement over the previous generation. Standard 18650 battery, easy to purchase.

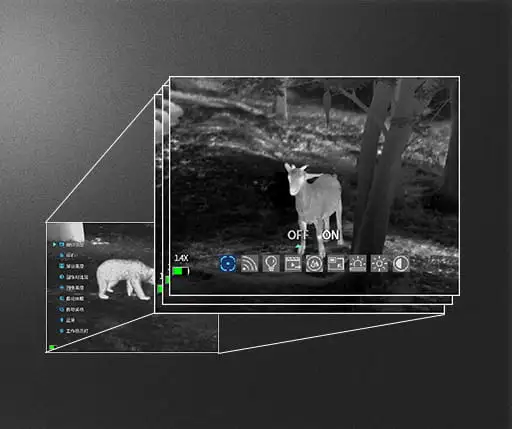

New User Interface design
New user interface design to simplify operation; iconized operation without language restrictions.

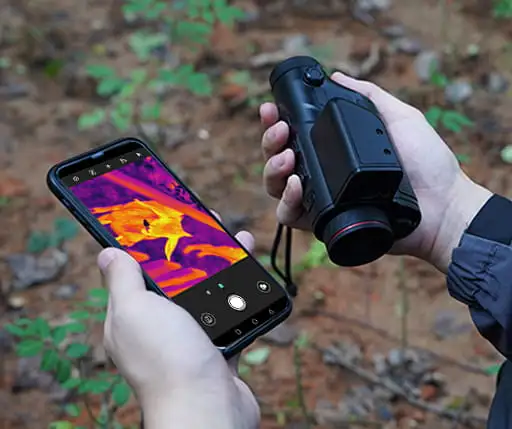

Real-time Sharing by WIFI
Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.

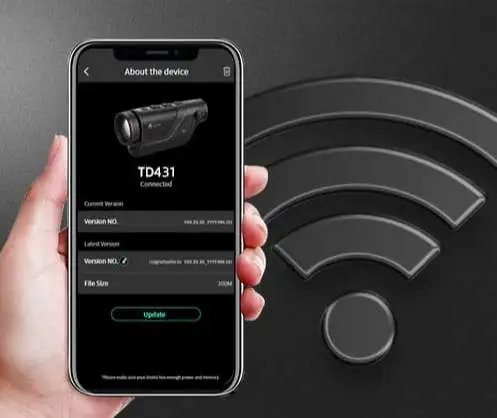

OTA Upgrade
Support device firmware updates by connecting to TargetIR APP for high efficiency.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 384 288@12 m | |||
| NETD | 35mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 19mm, F1.0 | |||
| Field of view | 13.6 10.3 | |||
| FOV m@100m | 24 18 | |||
| Magnification | 1.4x~5.6x | |||
| Detection range | 1000m/1090yd | |||
