MTD421 Handheld Thermal Imaging Monocular
China Moneypro
TD Gen2 Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.
384x288IR Resolution
25mm/F1.1Focal Length
ManualFocusing
10 HoursBattery Life

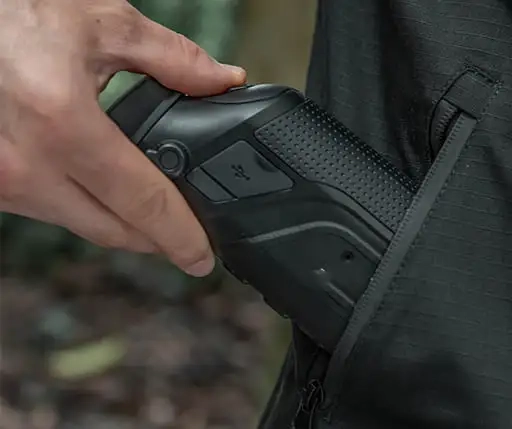

Tiny and Powerful
A lightweight design allows for one-handed operation, fits naturally in your hand, and makes carrying and exploring effortless.

12 Hours Strong Battery Life
With over 12 hours of runtime during active use, this model delivers a 3-hour boost compared to its predecessor. Powered by a standard 18650 battery, it’s convenient and easy to replace.

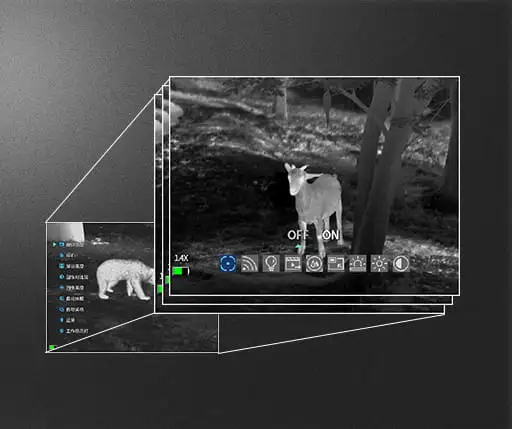

New User Interface design
Redesigned user interface for streamlined interaction; icon-based controls to eliminate language barriers.

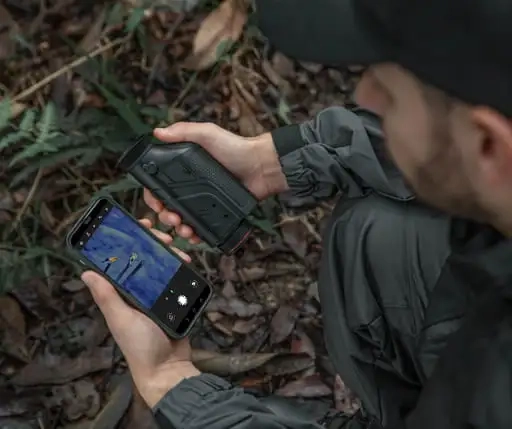

Real-time Sharing by WIFI
Connect your phone to the APP via Wi-Fi and share your amazing moments as they happen in real time.

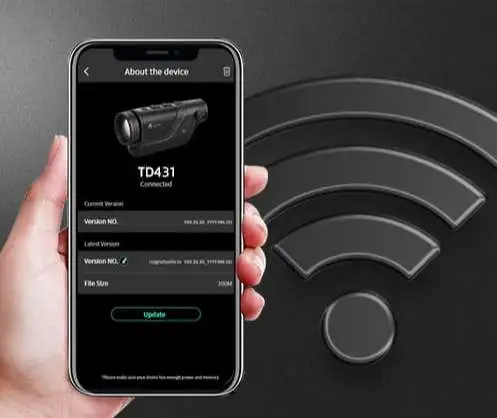

OTA Upgrade
To enable efficient device firmware updates, connect via the TargetIR APP.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 384 288@12 m | |||
| NETD | 35mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.1 | |||
| Field of view | 10.4 7.9 | |||
| FOV m@100m | 18 14 | |||
| Magnification | 1.9x~7.6x | |||
| Detection range | 1300m/1400yd | |||
