MTD431 LRFHandheld Thermal Imaging Monocular
China Moneypro
The TD Gen2 LRF Series is the industry’s first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.
384x288IR Resolution
35mm/F1.0Focal Length
ManualFocusing
10 HoursBattery Life

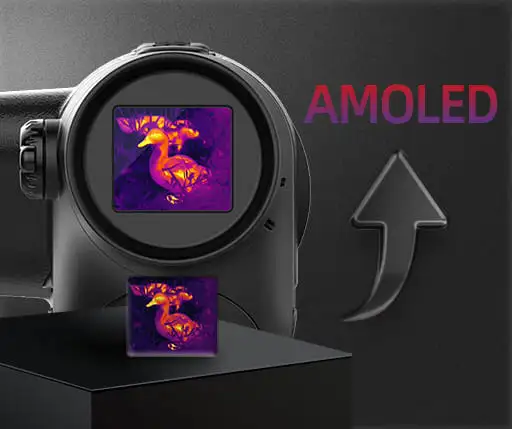

High-brightness AMOLED Display
Equipped with a 12-meter high-sensitivity infrared sensor and a 0.23-inch AMOLED screen (384 x 288 resolution), this device clearly defines image edges and fine details. The result is a high-contrast, richly detailed thermal image that ensures a comfortable and clear viewing experience.

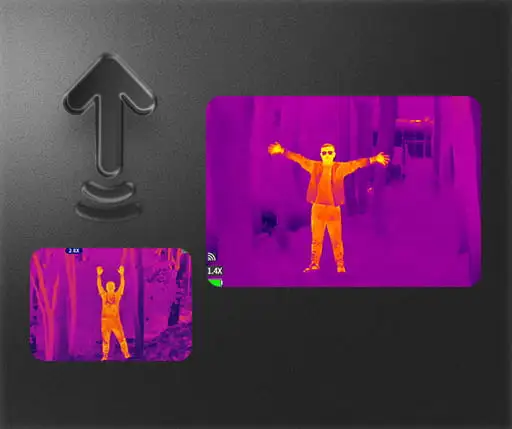

Enhanced Image Processing Algorithms
The TD Gen2 LRF Series introduces a fresh method for image enhancement, tailored to different observation goals and environmental conditions. It ensures superior visual quality for both subjects and their surroundings.

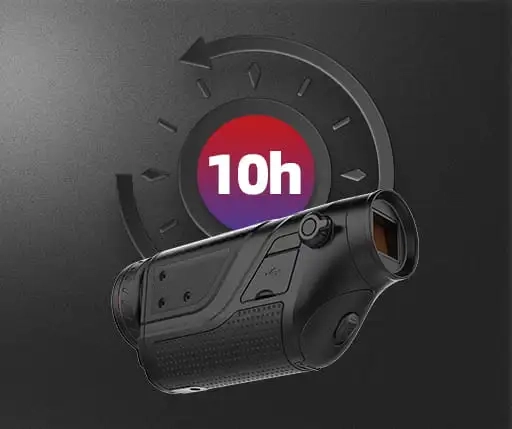

10 Hours Strong Battery Life
With over 10 hours of real-world use, it delivers 3 more hours than the previous generation. Powered by a standard 18650 battery that’s easy to find and replace.

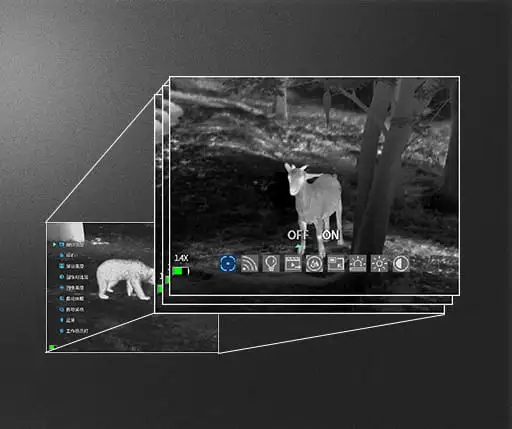

New User Interface design
Redesigned user interface for streamlined interaction; uses icon-based controls to eliminate language barriers.

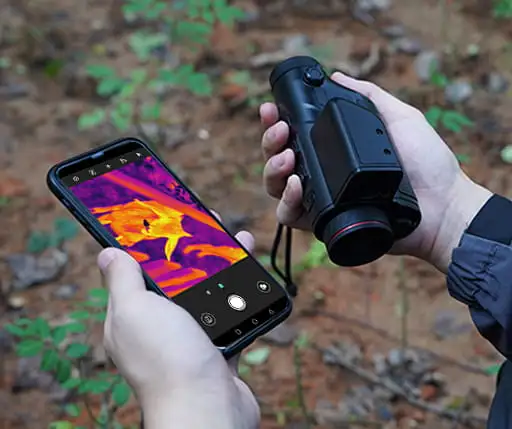

Real-time Sharing by WIFI
Connect your phone to the app via Wi-Fi and share those amazing moments as they happen.

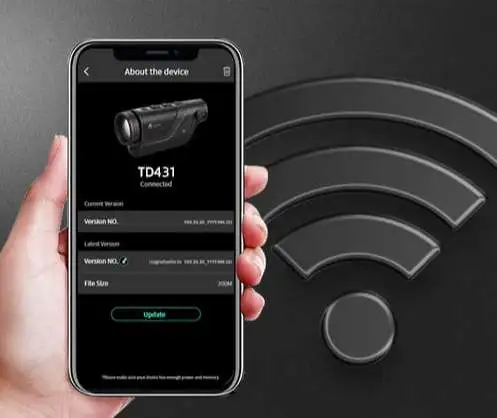

OTA Upgrade
Enable efficient device firmware upgrades via direct connection with the TargetIR App.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 384 288@12 m | |||
| NETD | 35mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.5 5.6 | |||
| FOV m@100m | 13 10 | |||
| Magnification | 2.6x~10.4x | |||
| Detection range | 1800m/1950yd | |||
