China Moneypro
MTD421 LRF Handheld Thermal Imaging Monocular
China Moneypro
The TD Gen2 LRF Series is the industry’s first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.
384x288IR Resolution
25mm/F1.1Focal Length
ManualFocusing
10 HoursBattery Life

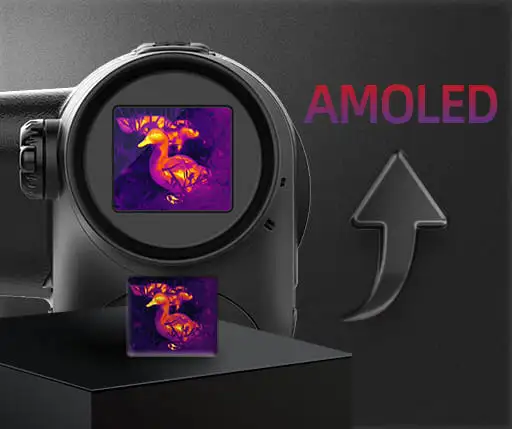

High-brightness AMOLED Display
The 12-meter-high-sensitivity infrared sensor, paired with a 0.23-inch AMOLED screen at 384 x 288 resolution, enhances the clarity of edges and fine details. This combination produces high-contrast, richly detailed thermal images for a more comfortable and immersive viewing experience.

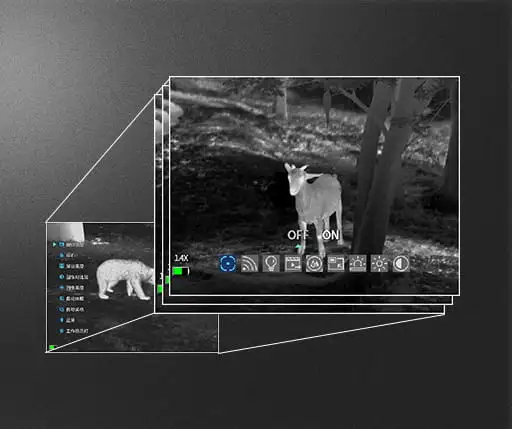

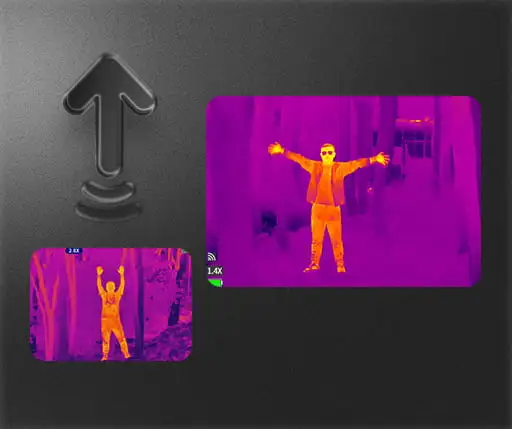

Enhanced Image Processing Algorithms
The TD Gen2 LRF Series introduces a fresh method for image enhancement, tailored to different observation goals and environmental conditions. It ensures clear, high-quality representation of both the subject and its surroundings.

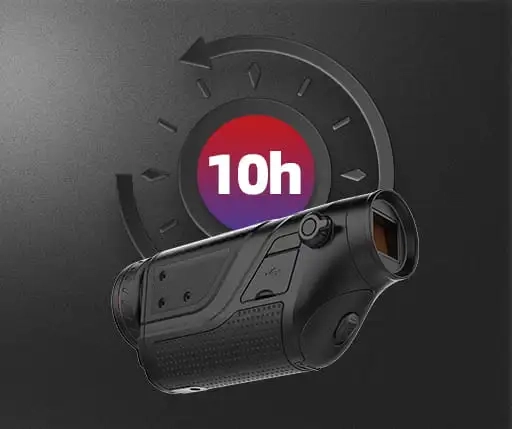

10 Hours Strong Battery Life
With over 10 hours of real-world usage, it delivers 3 more hours than the previous model. Powered by a standard 18650 battery that’s simple to replace.
New User Interface design
Redesigned user interface for streamlined interaction; uses icon-based controls to eliminate language barriers.
Real-time Sharing by WIFI
Connect your phone to the app via Wi-Fi and share amazing moments as they happen.

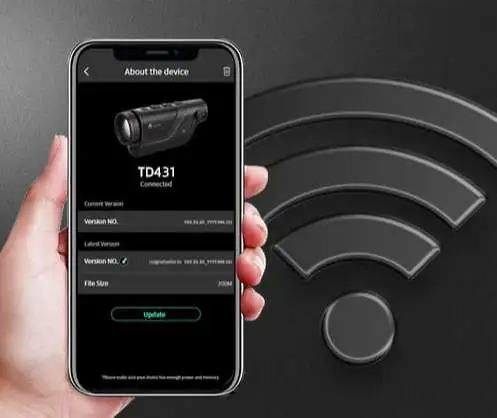

OTA Upgrade
Enable fast and efficient firmware upgrades on devices via connection with the TargetIR application.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 384 288@12 m | |||
| NETD | 35mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.1 | |||
| Field of view | 10.4 7.9 | |||
| FOV m@100m | 18 14 | |||
| Magnification | 1.9x~7.6x | |||
| Detection range | 1300m/1400yd | |||
