MTD633Handheld Thermal Imaging Monocular
China Moneypro
The TD Gen3 Series handheld thermal imaging monocular, compact in design, yet powerful in function. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.
640 512@12 mIR Resolution
20mKNETD
1800m/1950ydDetection range
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 Series is equipped with a 12μm infrared detector and supports resolutions of 600×512 and 400×300. With a selection of focal lengths, it produces remarkably sharp images even in total darkness.

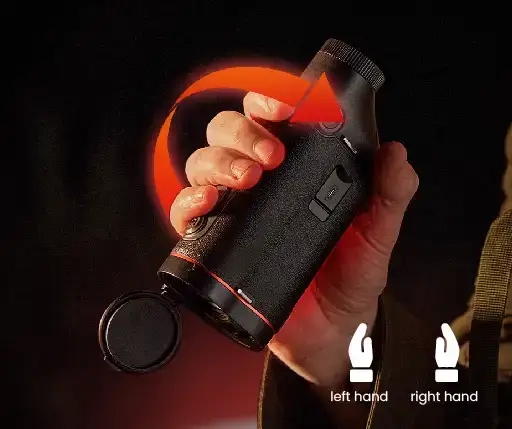

Ambidextrous design, one-handed operation
The symmetrical housing design supports use with either hand, while the ergonomic button layout follows natural user habits for smooth one-handed operation.

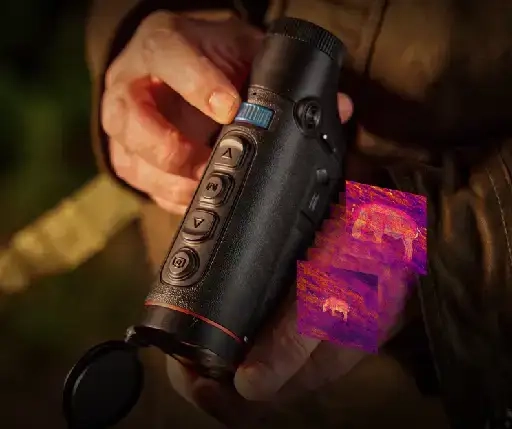

Fine-tuning focus, scroll with fingers
The compact focusing roller delivers a distinctive feel, enabling quick and accurate fine-tuning with just a single finger’s scrolling motion for effortless focus adjustment.

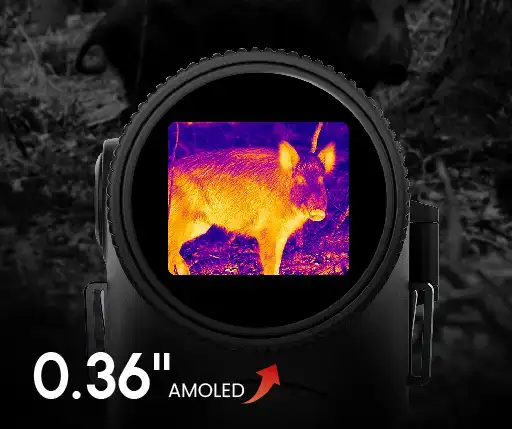

Upgraded visuals, enlarged AMOLED Display
Building on its predecessor, the TD Gen3 Series now incorporates a 0.36-inch AMOLED screen with a sharp 1280×960 resolution, offering richer detail and a gentler visual experience.

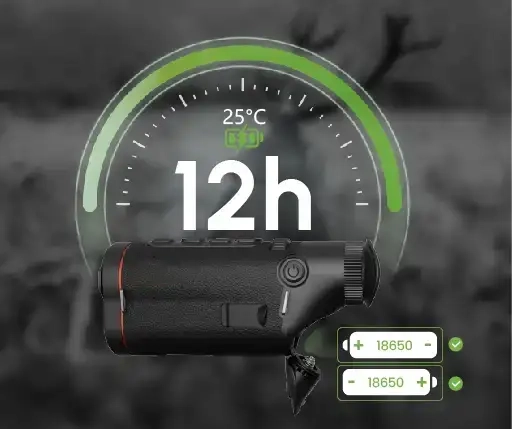

Extended battery life, uninterrupted power
During field operations such as observation, reconnaissance, and stalking, the TD Gen3 Series delivers an outstanding 12 hours of continuous use. Its swappable 18650 battery is designed for effortless blind placement in low-light conditions, eliminating the need to identify positive and negative poles.

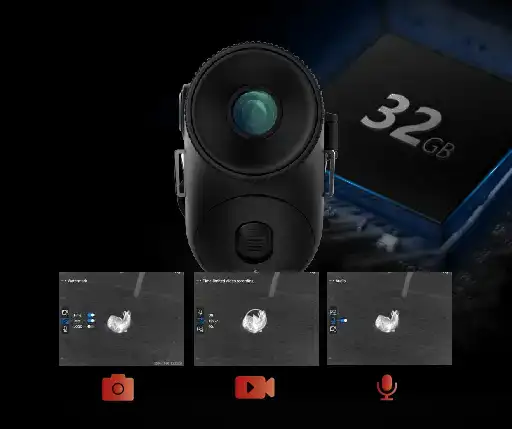

Smart recording, expanded built-in storage
The enhanced smart recording feature now supports video capture with audio. With its built-in 32GB storage, users can save more than 100,000 images without ever worrying about space limitations.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 640 512@12 m | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5 9.4 | |||
| FOV m@100m | 22 17 | |||
| Magnification | 1.8x~14.4x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
