MTJ430L Handheld Thermal Imaging Monocular
China Moneypro
Handheld Thermal Imaging Monocular
Embark on nighttime explorations with the TJ LRF Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
NETD<25mKDetector Full-HD 1920x1080AMOLED display 1000mLaser range IP67Encapsulation
Welcome to the big screens
TJ LRF Series – Handheld Thermal Imaging Monocular

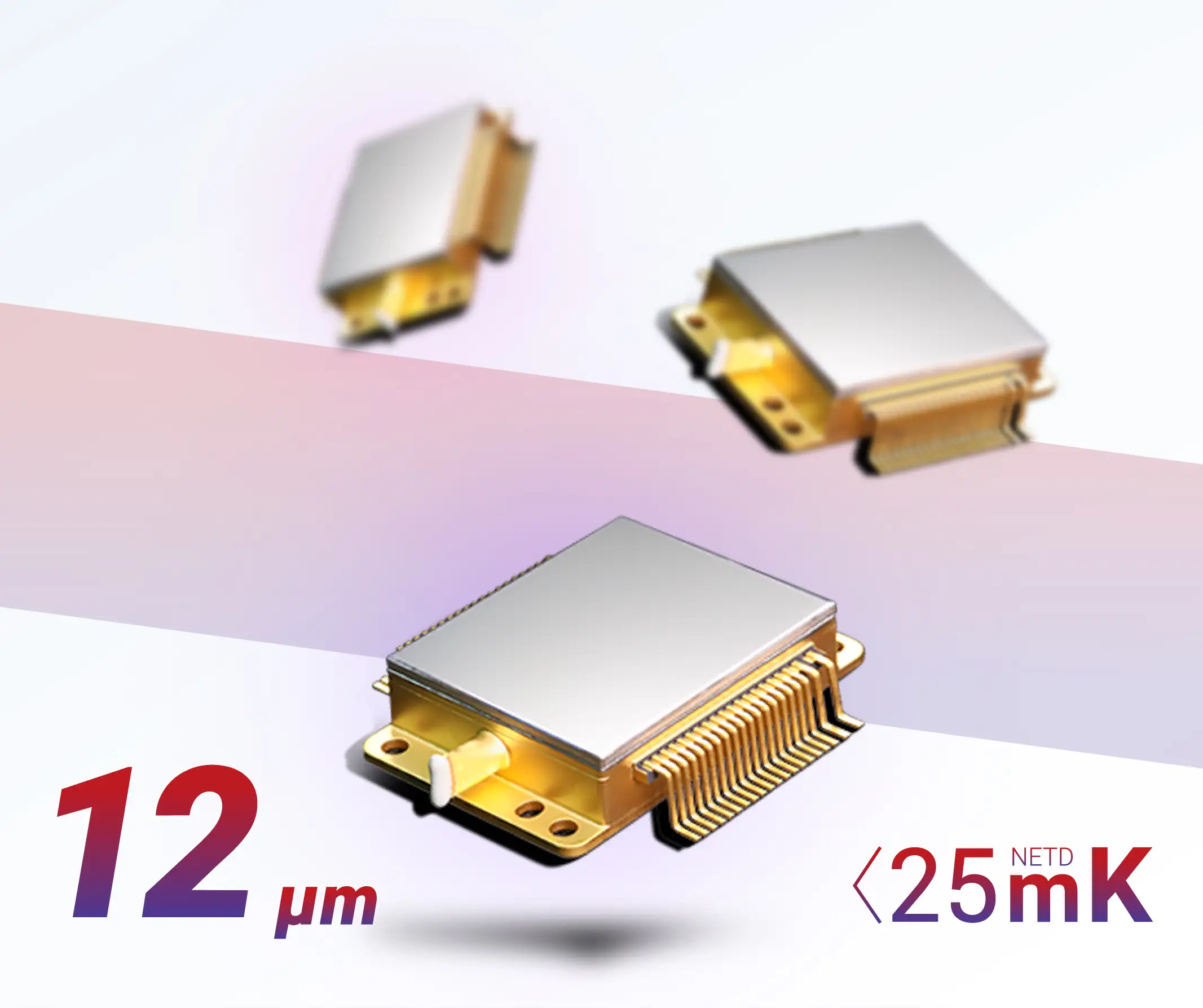

12um high sensitivity infrared detector
By employing an infrared detector that features an exceptionally low NETD of under 25 mK, even minimal thermal contrasts become detectable, delivering images with improved sharpness and clarity.

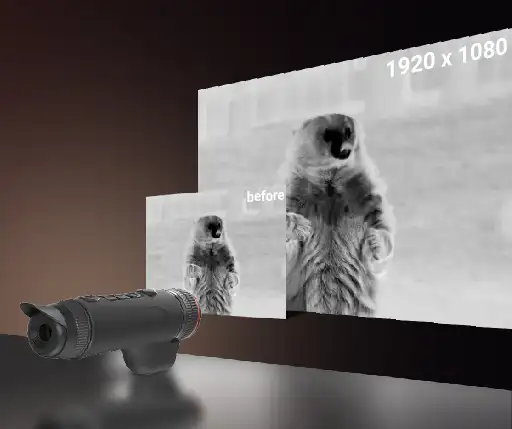

1920 X 1080 AMOLED Display
The eyepiece is equipped with a 1920×1080 AMOLED display, delivering vivid colors and outstanding picture clarity. As a result, it greatly improves viewing comfort.

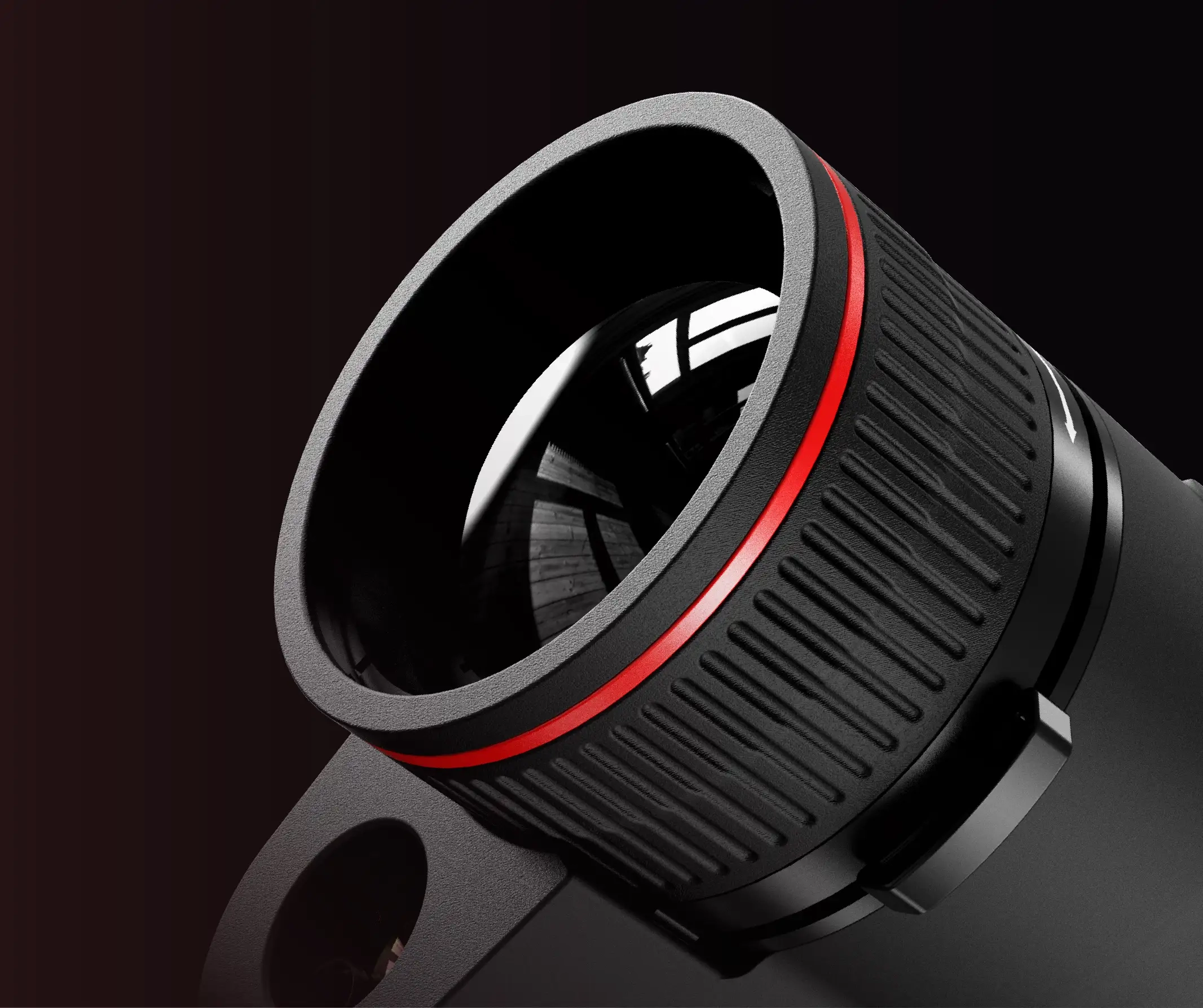

25/35/50mm F1.0 focal length
With multiple focal lengths, the TJLRF Series offers enhanced performance and greater flexibility across various environments. Equipped with a powerful 50mm F1.0 lens, it delivers clear identification of targets up to 2000 meters, facilitating effective observation and reliable recording.

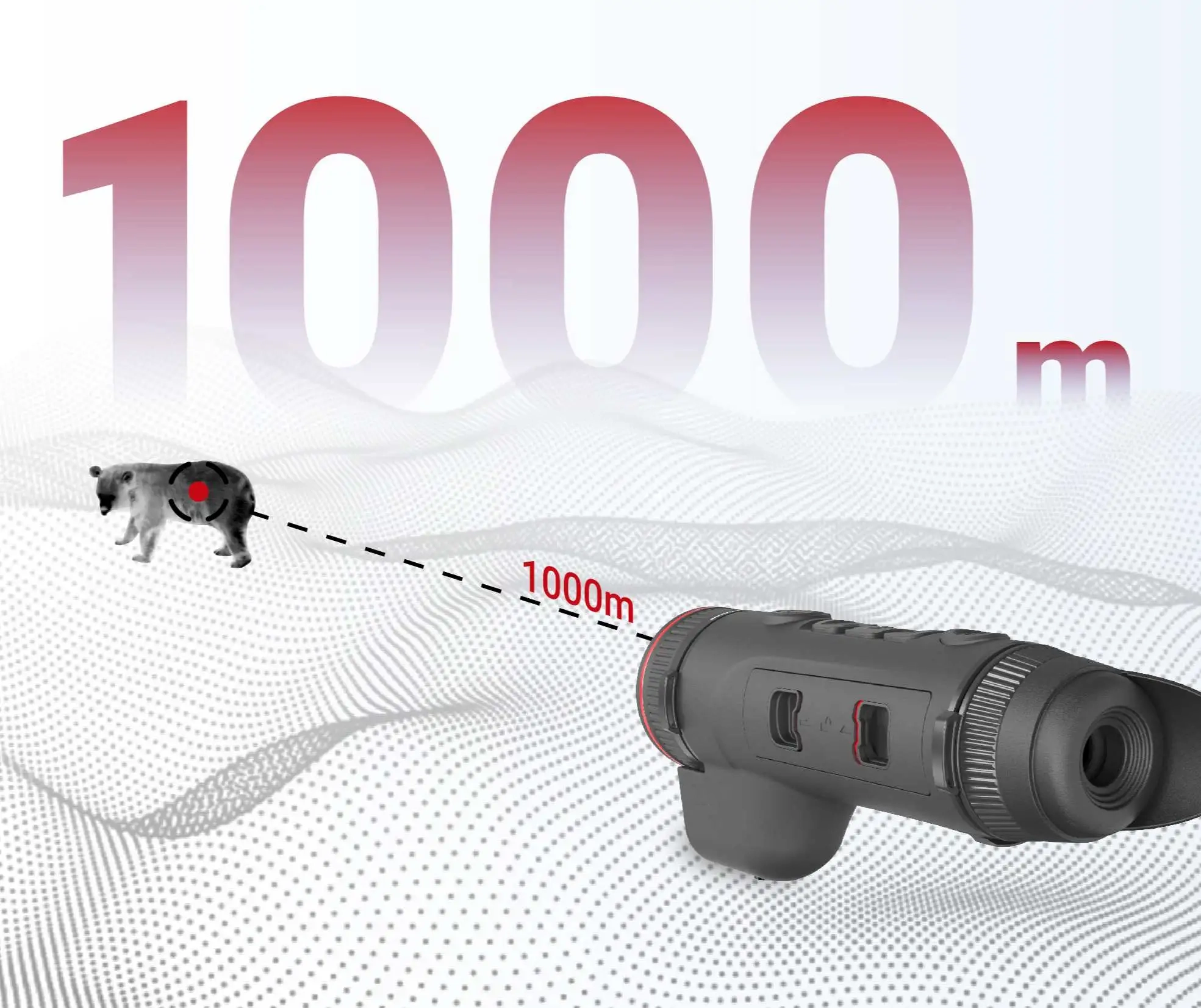

1000m laser ranging
The integrated laser rangefinder supports a maximum detection distance of 1000 meters, enhancing long-range target distance acquisition and extending perception capabilities over greater distances.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14 m | |||
| Resolution | 400 300@12 m | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.9 5.9 | |||
| FOV m@100m | 14 10 | |||
| Magnification | 4.25x~17.0x | |||
| Detection range | 1800m/1950yd | |||
