MPD225T Dual-Spectrum Speed Dome Camera

China Moneypro

The MPD2 Series Dual-Spectrum Speed Dome Camera integrates 256×192 thermal imaging with 5MP HD visible light.
It comes with built-in industrial temperature measurement and analysis tools, supports 360° circular scanning for patrol inspection and temperature measurement (-20°C~+550°C), and allows independent setting of temperature measurement areas for preset points.
Leveraging smoke and fire detection algorithms and intelligent intrusion detection algorithms, it can promptly detect fire hazards and intrusion targets in real time, trigger audible and visual alarms, and enable comprehensive all-weather security monitoring and fire warnings.

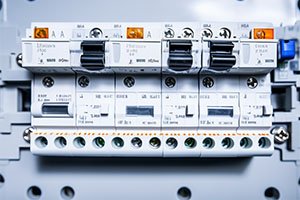

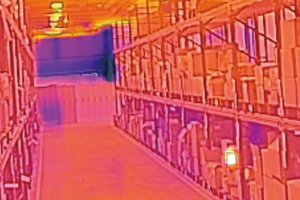

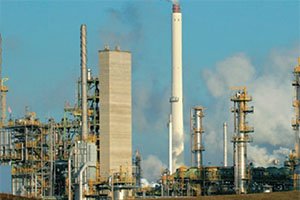

The PD2 series can be widely used in intelligent security and fire protection scenarios such as park perimeters, river monitoring, electrical power temperature measurement, and warehouse equipment rooms.

Feature

12μm Uncooled Infrared Detector

Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.

Dual-Spectrum Imaging

All-weather, 24/7 security monitoring with dual thermal&visible light imaging.

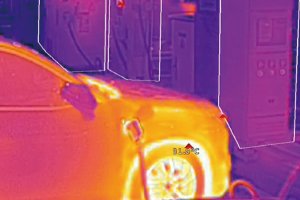

Accurate Temperature Measurement

Measurement range from -20°C to 550°C, accuracy ±2°C or 2%

AI Target Recognition

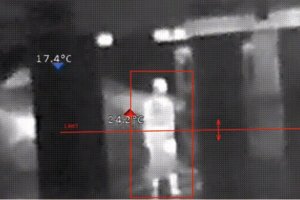

Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.

Intelligent Alarm

Support tripwire/intrusioProvides 360° panoramic monitoring, detects thermal imaging targets, integrates with visible light cameras for zooming and tracking, and supports alarm linkage for various events with audible and visual alarms to reduce false alarms.n detection, as well as intelligent detection of fire point.

Platform Integration

Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	256×192
Pixel Pitch	12μm
Focal Length	7mm/10mm
Optical Module
Sensor	5MP 1/2.8″ Progressive Scan CMOS
Resolution	2560×1920
Focal Length	5.4~108mm, 20x
IR distance	50m
PTZ
Pan	360° continuous，0.1°~120°/s
Tilt	0°~+90°，0.1°~60°/s
Preset	255
Scan mode	Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan
Temperature Measurement
Temperature Range	-20℃~+550℃
Temperature Accuracy	±2℃ or ±2%

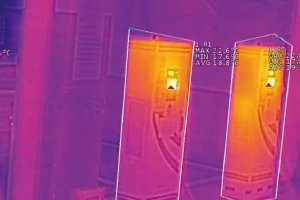

Temperature Measurement	Support 4 temperature measure ment rules(fullframe, point, line, area)
Smart Function
Fire Detection	Support
VCA	Support Line Crossing&Intrusion detection with AI human/Vehicle recognition
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 12V±25%/PoE(802.3af/at)
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	2 in/1 out
Storage	Micro SD memory（maximum 256G）
Reset	Support
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<95%RH
Protection	IP66
Power Consumption	≤20W
Dimenstion(mm)	265×147.5×248.7
Weight	≤2.5kg
