MSilentW-U12 Series Infrared Panoramic Camera

China Moneypro

MSilentW-U12 is a solution for large area monitoring by using a 12μm 1280×1024 HD thermal detector and capturing 360° panoramic image.

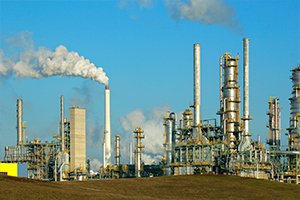

MSilentW is able to detect mulitple objects at same time and can be widely used in oil/gas fiels and mines to make a comprehensive security solution.

Feature

Industry-Leading Infrared Detector

Adopts the newest 12μm uncooled infrared sensor or a high-performance cooled MWIR detector, combined with cutting-edge infrared image processing algorithms, to deliver clearer imaging over longer distances.

360° Panoramic Monitoring

Identifies a complete 360° view within around 2 seconds and provides live panoramic visuals, ensuring all-around surveillance with no blind areas.

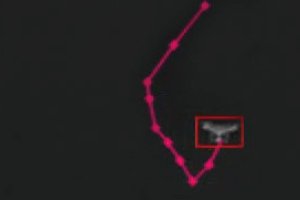

Multi-Target Detection

Capable of tracking and detecting up to 128 targets at the same time, with a maximum detection range of 8 kilometers.

Link with PTZ Camera

Simplify the calibration process and connect a dual-spectrum PTZ camera for target tracking. Utilize a zoom lens to capture finer details from a distance.

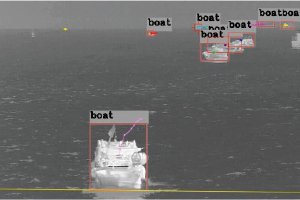

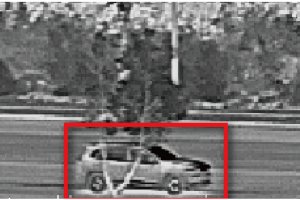

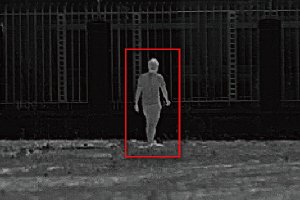

Intelligent Detection Algorithm

An artificial intelligence approach based on deep learning is developed for identifying targets such as people, ground vehicles, maritime vessels, and unmanned aerial vehicles.

Low Power Consumption

Designed for minimal energy use, compatible with solar power, and less dependent on infrastructure.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
Resolution	1280×1024
Pixel Pitch	12μm
Focal Length	55mm/75mm
PTZ
Pan	360° continuous，180°/s or 164°/s
Tilt	-20°~+35°，motorized
Scan mode	Panorama Scan
Smart Function
Fire Detection	Support
VCA	Motion Target Detection/AI Detection
Linkage Action	Linkage of PTZ camera
System Interface
Power	DC 30V 5A
Network	1000M Ethernet port
General
Work Environment	-40℃~+70℃
Protection	IP66
Power Consumption	≤35W
Dimenstion(mm)	382×260×386
Weight	20kg
