MSilentW-UM6 Series Mini Infrared Panoramic Camera

Feature

Industry-Leading Infrared Detector

The system integrates the latest 12μm uncooled infrared detector or a high-performance mid-wave infrared (MWIR) cooled detector, combined with advanced infrared imaging algorithms to deliver clear imaging over extended ranges.

Compact for Rapid Deployment

Weighing just 2.1 kg, it’s simple to set up and deploy.

360° Panoramic Monitoring

Revolutionizes detection by identifying a complete 360° circle in around 2 seconds, while streaming live panoramic video footage—delivering uninterrupted visual coverage with zero blind spots.

Multi-Target Detection

Capable of tracking and identifying up to 128 targets at once, with a maximum detection range of 1.5 kilometers.

Intelligent Detection Algorithm

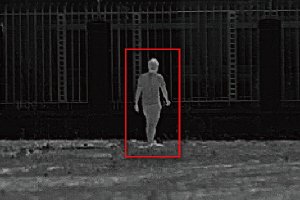

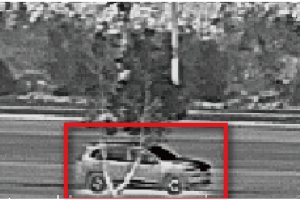

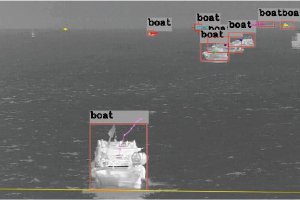

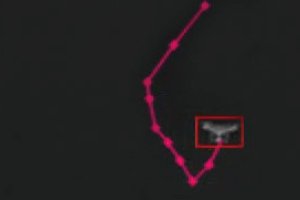

An artificial intelligence approach based on deep learning is developed for identifying objects such as people, ground vehicles, maritime vessels, and unmanned aerial vehicles.

Link with PTZ Camera

Simplified calibration enables connection with a dual-spectrum PTZ camera for target tracking. The zoom lens provides detailed close-up views over long distances.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
Resolution	640×512
Pixel Pitch	12μm
Focal Length	19mm/25mm
PTZ
Pan	360° continuous，200°/s or 160°/s
Tilt	-5°~+5°，manually
Scan mode	Linear Scan/Panorama Scan
Smart Function
Fire Detection	Support
VCA	Motion Target Detection/AI Detection
Linkage Action	Linkage of PTZ camera
System Interface
Power	DC 24V
Network	100M/1000M Ethernet port
General
Work Environment	-40℃~+60℃
Protection	IP66
Power Consumption	15w
Dimenstion(mm)	108×112×175
Weight	2.1kg
