MFC125T Dual-Spectrum Turret Camera

China Moneypro

The FC125T Dual-Spectrum Turret Camera is a new type of dual-spectral IP camera that integrates infrared thermal imaging with HD visible light capabilities.
Equipped with a state-of-the-art passive infrared thermal imaging detector and enhanced by industrial-grade temperature measurement and analysis tools, smoke and fire detection algorithms, and dual-spectral behavior analysis algorithms, it also features an array of alarm linkage functions to truly achieve 24/7 security monitoring and fire warning.
It can be widely used in scenarios such as gas stations, charging piles, substations, buildings and warehouses, and small-scale establishments.

Feature

12μm Uncooled Infrared Detector

Leveraging state-of-the-art 12μm uncooled infrared detectors, combined with sophisticated infrared imaging algorithms to deliver significantly enhanced image quality.

Dual-Spectrum Imaging

Round-the-clock, all-condition surveillance featuring both thermal and visible-light imaging, active 24 hours a day, 7 days a week.

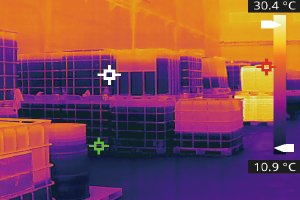

Accurate Temperature Measurement

Measuring range: -20°C to 550°C. Accuracy: ±2°C or 2% of reading.

AI Target Recognition

Intelligent analysis of video feeds, with thermal-spectrum recognition of humans and vehicles, enabling detection of line-crossing and unauthorized entry events.

Intelligent Alarm

Supports linkage of alarms triggered by multiple events, along with both sound and light alert functions.

Platform Integration

Support ONVIF compliance, offer SDK and demo for custom development, and provide NVR along with VMS software for application deployment.

Specification

Thermal Module
Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	256×192
Pixel Pitch	12μm
Focal Length	3.2mm/7mm
Optical Module
Sensor	5MP 1/2.7″ Progressive Scan CMOS
Resolution	2560×1920
Focal Length	4mm/8mm
IR distance	30m
Image Function
Bi-Spectrum Image Fusion	Support
Temperature Measurement
Temperature Range	-20℃~+550℃
Temperature Accuracy	±2℃ or ±2%
Temperature Measurement	Support 4 temperature measure ment rules(fullframe, point, line, area)
Smart Function
Fire Detection	Support
VCA	Support Line Crossing&Intrusion detection with AI human/Vehicle recognition
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm
System Interface
Power	DC 12V±25%/POE(802.3af)
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	2 in/1 out
Storage	Micro SD memory（maximum 256G）
Reset	Support
Serial Port	1 channel RS485, can support Pelco protocol
General
Work Environment	-40℃~+70℃；<95%RH
Protection	IP66
Power Consumption	≤5W
Dimenstion(mm)	Φ129×96
Weight	≤0.8kg
